Water Based Glue Laminating Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Textiles
Packaging Type:
Case, Film
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Application
Apparel, Textiles
Packaging Type
Case, Film
Packaging Material
Plastic, Wood
Automatic Grade
Semi-Automatic
Driven Type
Electric
Voltage
Customizable
Power
50.0 KW
Place of Origin
Jiangsu, China
Brand Name
EOMAE
Model Number
LN-1800
Dimension(L*W*H)
7250 x 2400 x 2650 mm
Weight
3000 KGS
Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas
LN-1800 Water Based Glue Laminating Machine
Applications
- Used for gluing and laminating materials like leather, artificial leather, EVA, foam, fabrics, platics, sponge, non woven ...
- Widely used in cloth, shoemaking, luggage, interior decoration, car interiors, toy and other industries.
Key Features
- Applicable to water based glue;
- Vertical structure;
- Equipped with high quality heat resistance net belt to make the laminated materials contact closely with the drying cylinder, to improve the drying effect, and make the laminated product soft, washable, and strengthen adhesive fastness;
- Equipped with two sets of heating system, user can select one set heating mode or two sets, to reduce the energy consumption and lower costs;
- Surface of the drying cylinder is coated with Teflon to avoid glue;
- Pneumatically controlled or handwheel controlled clamp roller;
- Equipped with automatic infrared centering control unit, which can effectively prevent the net belt deviation, and ensure the net belt service life;
- Efficient cooling unit is suitable for various materials;
- Low maintenance cost and simple to maintain.
Options
- 1200mm diameter heating drum
- Thermal oil heating drum
- Wool blanket belt
- Edge cutting unit
- Counting function
- 2 structures available: Horizontal or Vertical
Main Technical Data
- LN-1800 Water Based Glue Laminating Machine
| Model: | LN-1800 |
| Working Width: | 1600 mm |
| Drying Cylinder Diameter: | 1500 mm |
| Drying Cylinder Width: | 1800 mm |
| Heating Tube Inside Drying Cylinder: | 30 PCS x 1.5 KW |
| Running speed: | 0-50 m/min |
| Power: | 50.0 KW |
| Net Weight: | 3000 KGS |
| Dimension: | 7250 × 2400 × 2650 mm |

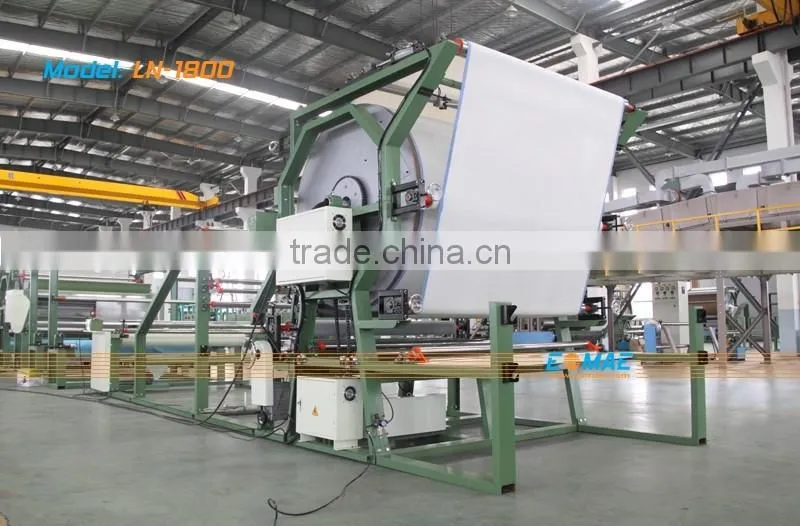

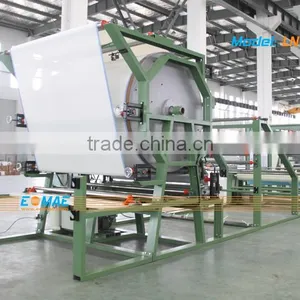

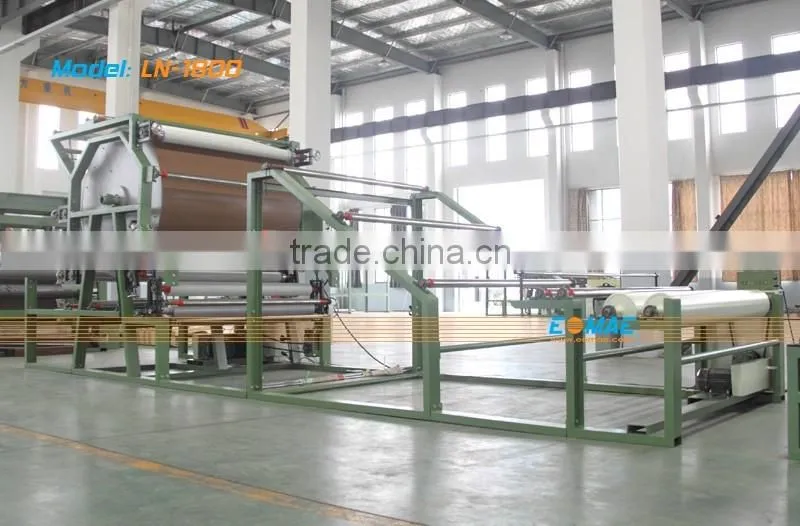

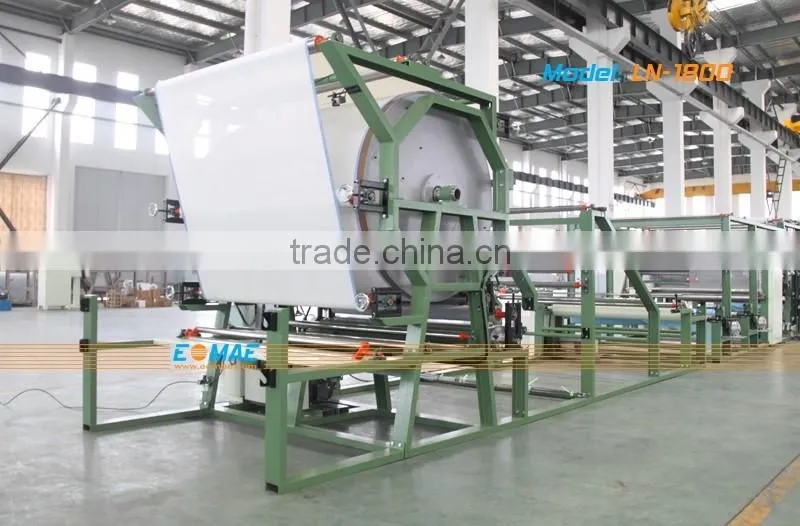

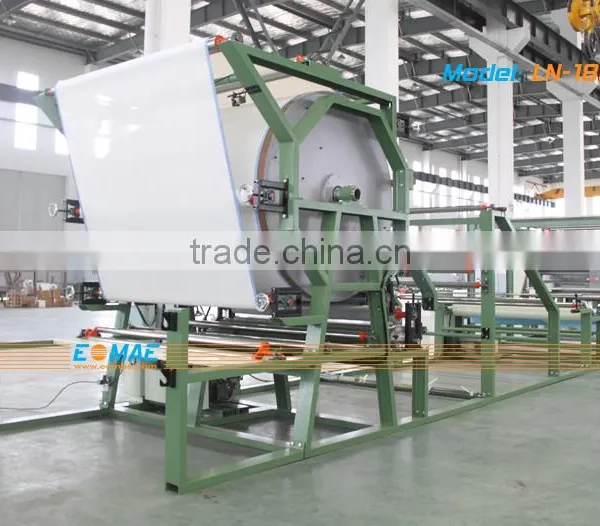

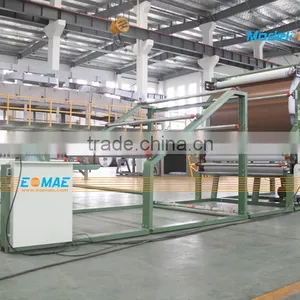

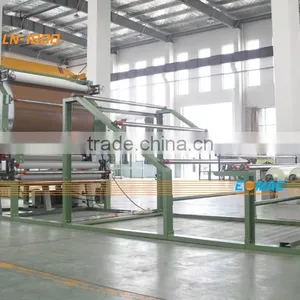

Machine Photos
- LN-1800 Water Based Glue Laminating Machine
Laminated Product Sample Photos
