PVC Laminating Machine LN-1800V

Name: PVC Laminating Machine LN-1800V
Brand: EOMAE
SKU: 131675075
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

EOMAE

Yancheng Xinzhan Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name EOMAE

Model Number LN-1800V

Voltage Customizable

Power(W) 34.5 KW

Dimension(L*W*H) 7600 x 2500 x 2600 mm

Weight 3000 KGS

Certification CE

Warranty 18 Months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

* PVC laminating machine
* Water based glue
* Vertical structure
* Superb processing
* CE Certified

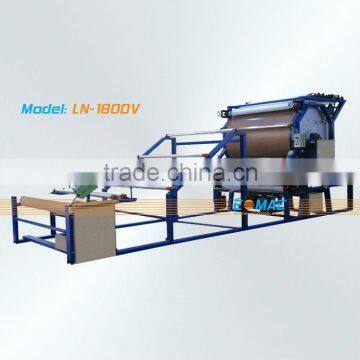

LN-1800V PVC Laminating Machine

Applications

Used for gluing material and laminating materials like PVC materials, platics, sponge, non woven, leather, synthetic leather...
Widely used in cloth, shoemaking, luggage, interior decoration, car interiors, toy and other industries.

Key Features

Applicable to water-based glue;
Vertical structure;
Equipped with high quality heat resistance net belt to make the laminated materials contact closely with the drying cylinder, to improve the drying effect, and make the laminated product soft, washable, and strengthen adhesive fastness;
Equipped with two sets of heating system, user can select one set heating mode or two sets, to reduce the energy consumption and lower costs;
Surface of the drying cylinder is coated with Teflon to avoid glue;
Pneumatically controlled or handwheel controlled clamp roller;
Equipped with automatic infrared centering control unit, which can effectively prevent the net belt deviation, and ensure the net belt service life;
Efficient cooling unit is suitable for various materials;
Low maintenance cost and simple to maintain.

Options

Main Technical Data

Model:	LN-1800V
Working Width:	1600 mm
Drying Cylinder Diameter:	1500 mm
Drying Cylinder Width:	1800 mm
Heating Tube Inside Drying Cylinder:	30 PCS x 1.0 KW
Running speed:	1-40 m/min
Power:	34.5 KW
Net Weight:	3000 KGS
Dimension:	7600 x 2500 x 2600 mm
