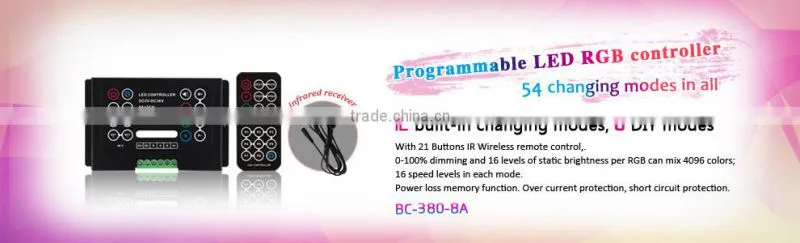

IR remote led rgb controller 3 channels constant voltage led controller with programmable function
BC-380-8A it added customize programming function, you can program your favorite color change
modes within a few seconds. it can control color changes of LED lights with 4-pin 3-channels
(Common anode),It has 12 kinds of built-in modes, 6 kinds of customize modes, which can be
change to any of the color skipping,color smooth and color flicker,makes your LED light changes
more rich and colorful.
Specification
|
Input voltage
|
BC-380-8A |
|
Max load current
|
8A/CH x 3 CH |
|
Max load power
|
120w/290/580/865w(5v/12v/24v/36v) |
|
Chaning mode
|
12 built-in modes, 6 custom modes |
|
Scale level
|
4096 steps per RGB |
|
Static dimming
|
mixing up 4096 colors |
|
Dimension
|
L142 x W73 x H30 (mm) |
|
Weight
|
415g |
|
IR remote
|
with IR remote, 10 m without |
|
Control type
|
common anode |
|
Feature
|
Over current protection, short circuit protection |
Feature
1. Automatic switch from DC5V-DC36v
2.With 21 Buttons IR Wireless remote control, reliable control distance can reach as far as10m
3. 12 built-in changing modes, 6 DIY modes, and each mode can be change to any of the color skipping,color smooth and color flicker, 54 changing modes in all.
4. 0-100% dimming and 16 levels of static brightness per RGB can mix 4096 colors; 16 speed
levels in each mode.
5. 3-Channel RGB full color control, maximum outputs 8A per Channel.
6. 4096 Grey scales per RGB, color- smooth effect is gentle and accurate.
7. Power loss memory function. Over current protection, short circuit protection.
8. Equipped with infrared receiver, more convenient to receive the infrared signal.
1. Neutral packaging
2. Shipping
We will deliver goods by DHL, Fedex,UPS , EMS Express and so on, it will takes 5-7 workind days to
be arrived .
1. Our products meet international standards, OEM and ODM orders are welcome.
2. First cooperation, welcome to buy sample to test quality, and we don't require MOQ for sample,
any quantity you can order.
3. All products have 3 years warranty.

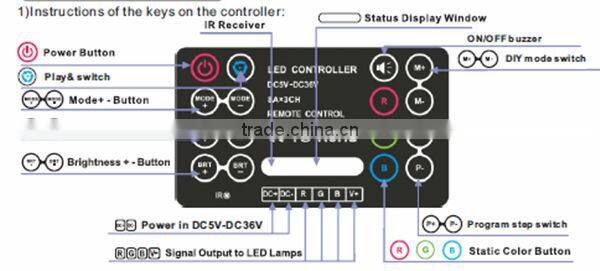

How to operate it?

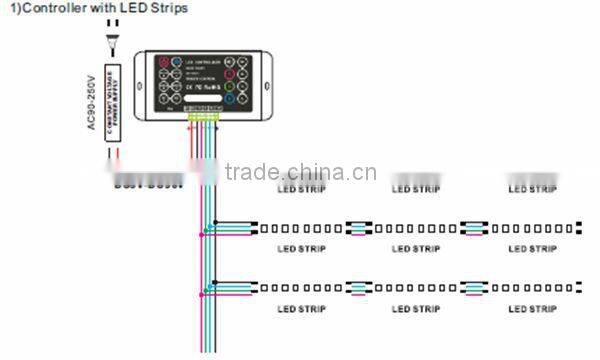

How to connect with constant voltage led lgihtings?

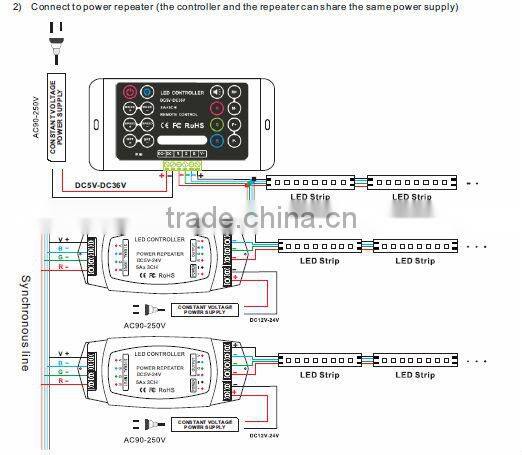

How to connect with power repeater to expand power?
