BC-802-2801 DC5V-24V WS2801 DMX512 decoder
led DMX controller WS2803
Brief Introduction
BC-802 DMX512 Data Decoder adopted the advanced decoding technology to convert the international
standard DMX512/1990 signal into standard SPI (TTL) / LPD6803 / LPD8806 / TM1809/P9813/
TLS3001/WS2801 signals, each decoder has 96/510 DMX output channels, and the output channels can be
expanded by adding decoders, therefore, most of LED lights can be controlled by DMX512/1990 protocol via
the signal conversion,
Product Features : lighting controls
1.In put standard DMX512 protocol,Address can be set by DIP.
2.Automatically adapt input voltage DC12V-24V.
3.Self-Changing Mode exist.
4.Output TTL Signal.
Application:
widely used pixel light, digital tube light, floodlight, pixel screen, dancing floor light etc.

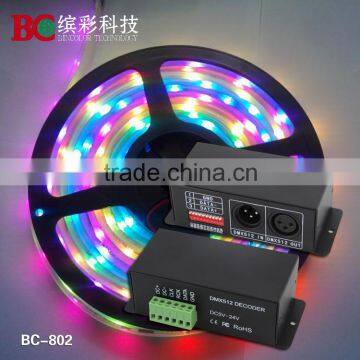

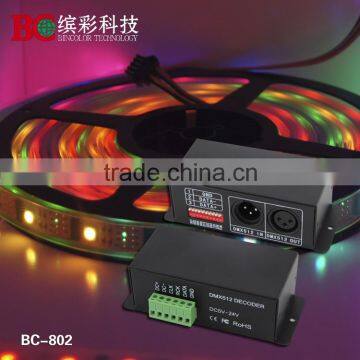

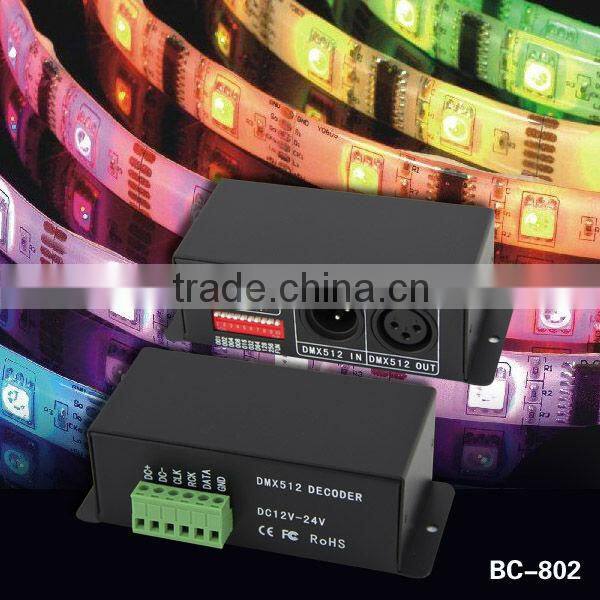

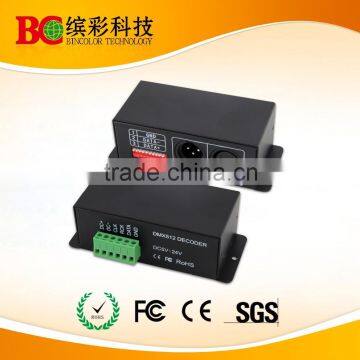

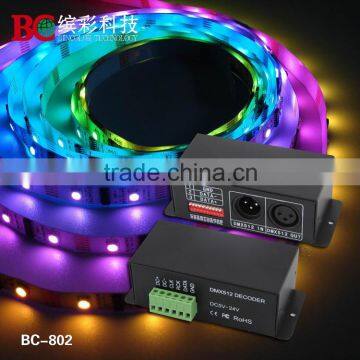

Product show

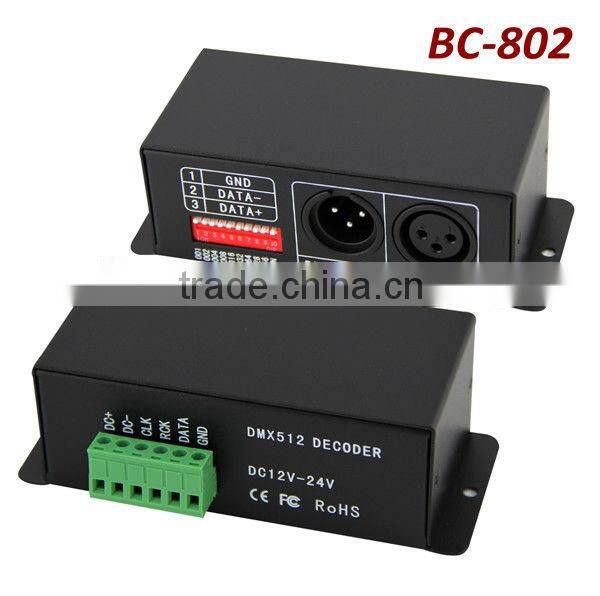

INTERFACES:

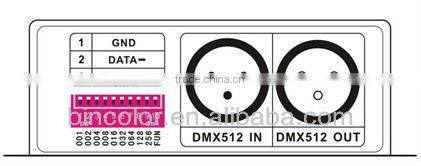

DMX PORT

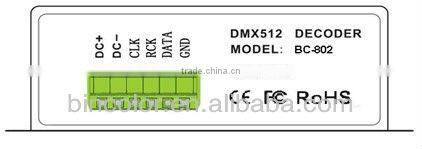

OUTPUT PORT

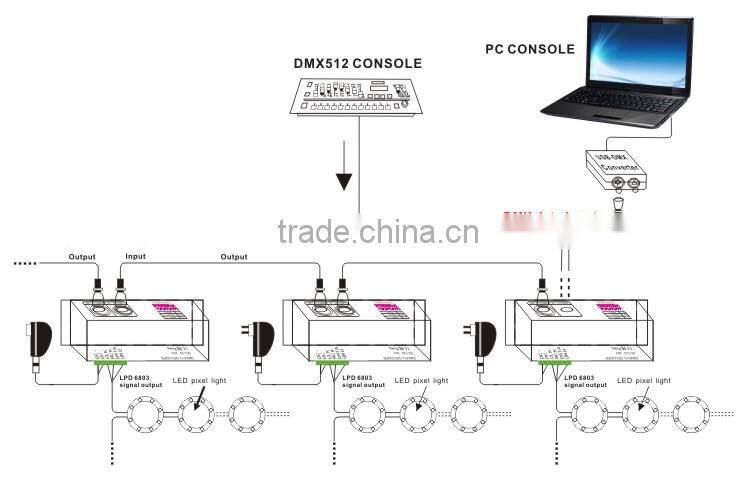

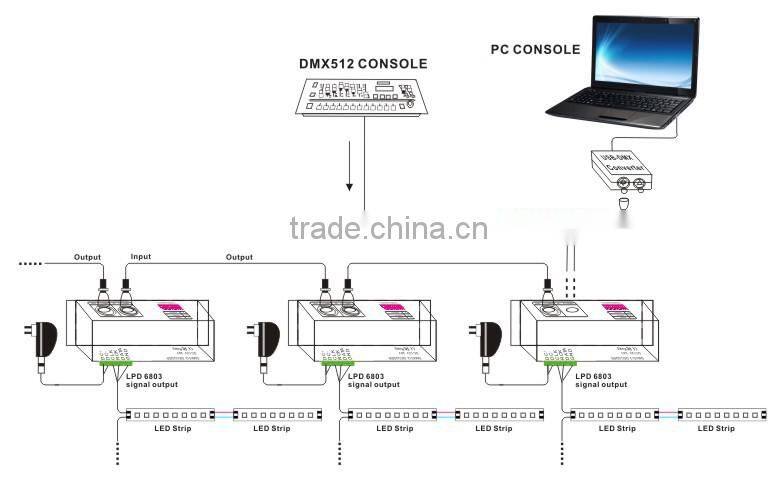

Ciruit diagram:
Important Reminder:
For all of our products, no matter constant current type or constant voltage type, please always use constant voltage power supply to connect them.
Due to the efficient output of most power supplies are only 80% of the total power, please make sure that the total output power of the power supply is 20% higher than the total power of LED lights.
