BC-853-700  3 channels DC12-48V constant current DMX512  decoder 700mA

Introduction:



This Decoder is specially designed for high power LED lamps. Decoder has 3 output channels, outputs 350mA/700mA constant current PWM driving signal; each channel can realize 256 level grey control. Use DMX512 constant current decoder to directly control high power single/RGB color LED lamps without constant current IC, which do not need any extra circuit component, it could be connected with high power LED lamps in series.



Product parameter:



Model

BC-853-350

BC-853-700

Input voltage

DC12V-48V

DC12V-48V

Max load current

350MA/CH*3

700MA/CH*3

Driving LEDs

12V: 1-3pcs 1W LED       24V: 1-6pcs 1W LED       36V: 1-9pcs 1W LED     48V: 1-12pcs 1W LED

12V: 1-3pcs 3W LED      24V: 1-6pcs 3W LED  36V: 1-9pcs 3W LED  48V: 1-12pcs 3W LED

Grey Scale

4096 levels/CH*3

4096 levels/CH*3

Input signal

DMX512/1990

DMX512/1990

Output signal

3 Channels CC PWM

3 Channels CC PWM

Decoder channels

3Ch

DMX512 socket:

StandardXLR-3R/RJ45/terminal block

StandardXLR-3R/RJ45/terminal block

Product Dimension

L157*W65*H40(mm)

L157*W65*H40(mm)

Weight (G.W)

450g

450g



Feature function:



1.3 Output Channels, connect single/RGB color LED lamps.

 2.0-100% brightness adjusting, 4096 levels of grey scale per channel.logarithmic dimming;lamplight soft&stable without strobe flash.

 3.Standard DMX512 input protocol, 3-digital-display shows DMX address.

 4.Wide voltage input: DC12V-48V.

 5. Support  master mode or slave mode

6. color changing modes, 10 levels of changing speed in master mode.

7.  2 Models: 350mA / 700mA constant current output.

 8. DMX signal lines are wrong protection

9. Power loss memory function.

10.Multiple DMX512 signal interface.

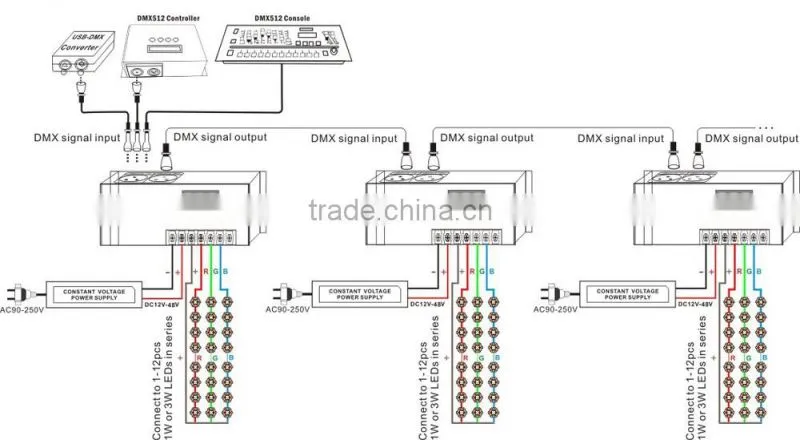

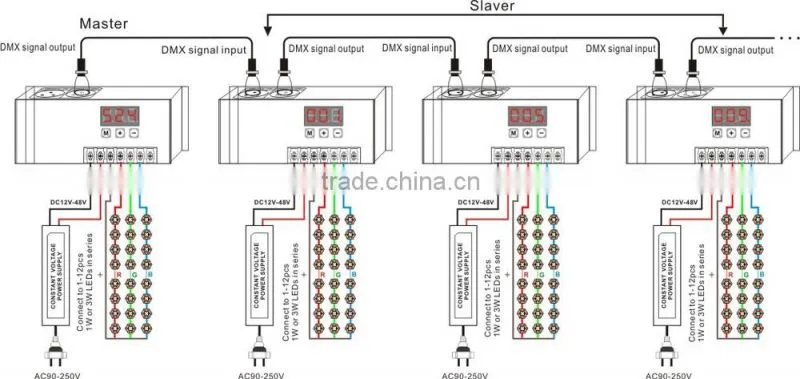

Typical Wiring Schematics:



decoder mode











Packaging & Shipping

After inspection the goods are packed in white inner box and then carefully packed in cartons.
