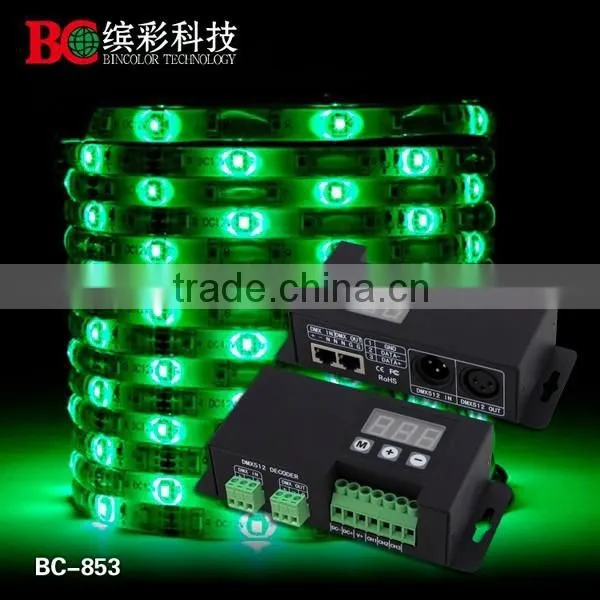

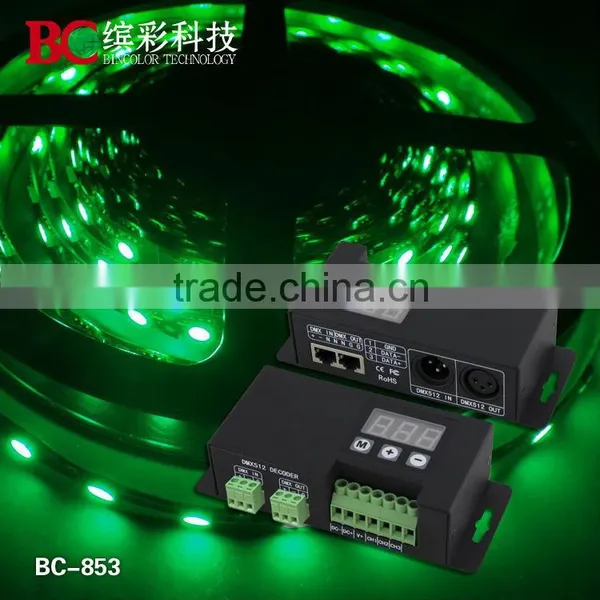

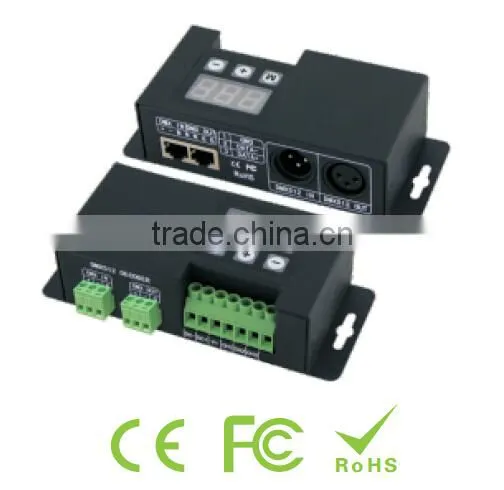

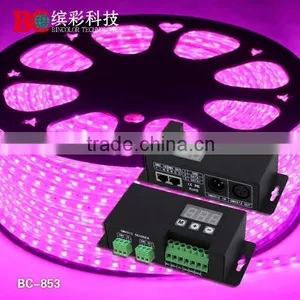

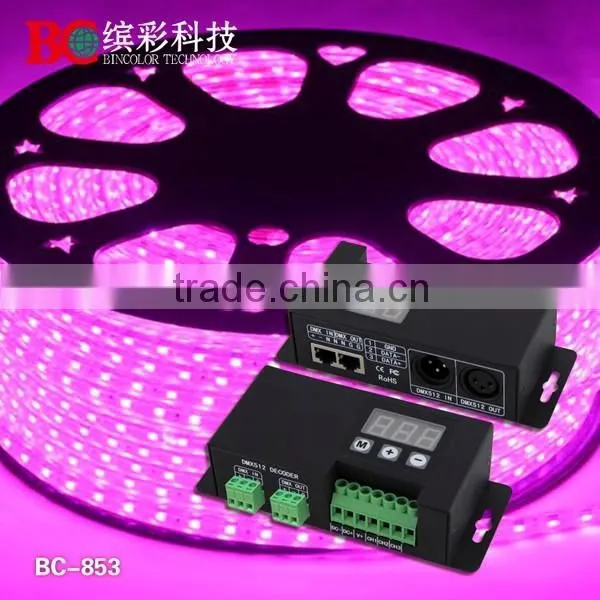

DC12V 216W 24V 432W 3CH constant voltage dmx512 decoder

        BC-853 12v 216w 24v 432w 3CH constant voltage dmx512 decoder

Introduction:

Welcome to use the Constant Voltage DMX512 Decoder which is developed only for constant voltage LED lamps. It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal. User can choose 1~3 output channels, 4096 Grey Scales. Multiple DMX512 signal interface.

Product parameter:

Feature function:

1. Automatically adapts input voltage DC12V-24V.

2. Input standard DMX512 signal; 3-digital-display shows DMX address.

3. 3 channels output; 4096 grey scales each channel; logarithmic dimming; lamplight soft & stablewithout strobe flash.

4. Support master mode or slave mode;

5. 8 color changing modes and 10 speed scales in master mode .

6. Indicator of the DMX512 signal receiving status.

7. Power loss memory function.

8.Over current protection and short circuit protection.Wrong wiring protection at DMX prot.

9 .Multiple DMX512 signal interface.

Dimension:

 Ciruit diagram:

 1. works as salve mode:

2. Works as master mode :
