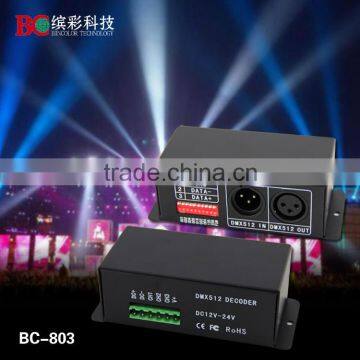

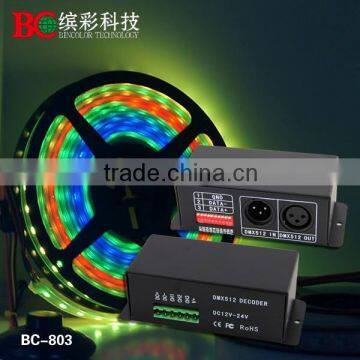

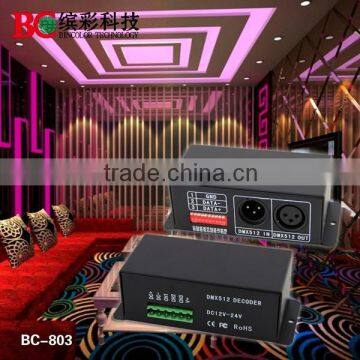

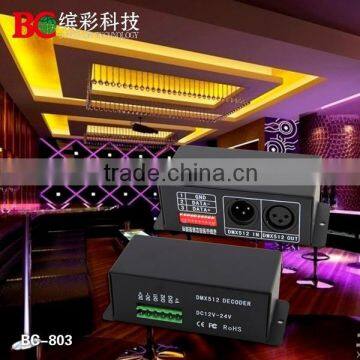

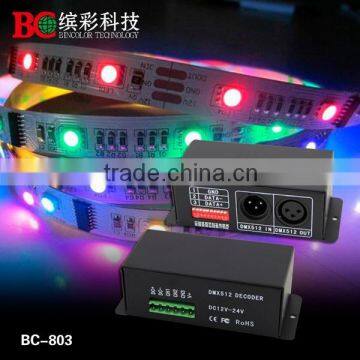

DC12V-24V 5A/CH 3CH DMX512 Decoder addressable
Introduction:
Decoder is designed via advanced microchip technology to convert the universal standard DMX512/1990 signal into most advanced PWM (pulse-width-modulation) digital driving signal, it allows user to choose 1~3 output channel, 256-level brightness control, max 512 output channels. This compact decoder connects to light console, analog device and various Led terminal products such as RGB Led lamps, RGB Led tubes, building lamps, LED wall washers or lighting and other compatible devices allowing its user to create endless possibilities of light shows.
Product parameter:
Model |
BC-803 |
Input voltage |
DC12V-24V |
Max load current |
5A/CH×3 |
Output Power |
180W/360W(12V/24V) |
Output Scale level |
256 levels |
Input signal |
DMX512/1990 |
Output signal |
3 constant voltage PWM |
Output DMX Channel |
3Chs or 4Chs (4th CH is shutter strobe) |
DMX512 socket |
Standard XLR-3R |
Dimension |
L125×W52×H40(mm) |
Package Size |
L140×W77×H47(mm) |
Weight (G.W) |
315g |
Feature function:
1.Input standard DMX512 protocol,Address can be set by DIP.
2.Automatically adapt input voltage DC12V-24V.
3.3 output channels, 256 scale each, RGB driving control.
4.10 self-changing modes, 8 speed levels.
5.Max output 5A*3CH.
6. Power loss memory function.
Two different versions:
3 DMX ADD Version:
The 1st address controls LEDs on CH1,0-255 steps of brightness.
The 2nd address controls LEDs on CH2,0-255 steps of brightness.
The 3rd address controls LEDs on CH3,0-255 steps of brightness.
4 DMX ADD Version:
The 1st address controls LEDs on CH1, 0-255 steps of brightness.
The 2nd address controls LEDs on CH2, 0-255 steps of brightness.
The 3rd address controls LEDs on CH3, 0-255 steps of brightness.
0-127 of the 4th address controls the brightness, 128-255 for strobing

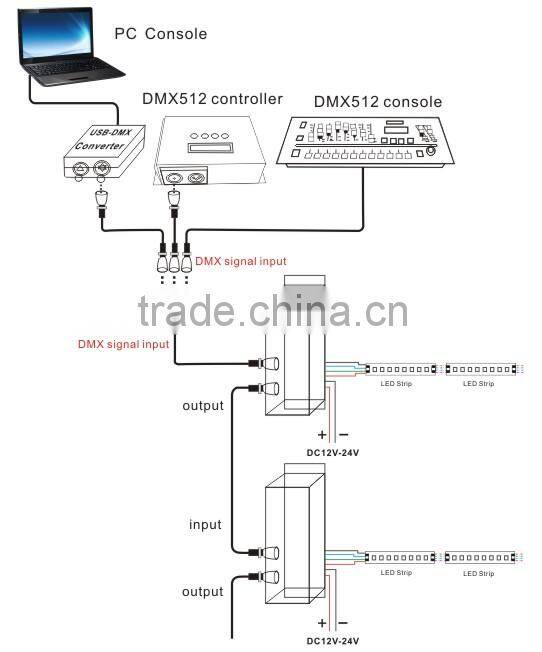

Typical Wiring Schematics:
