High quality DC5V-24V dream color DMX decoder ic 6803 led DMX controller
Introduction

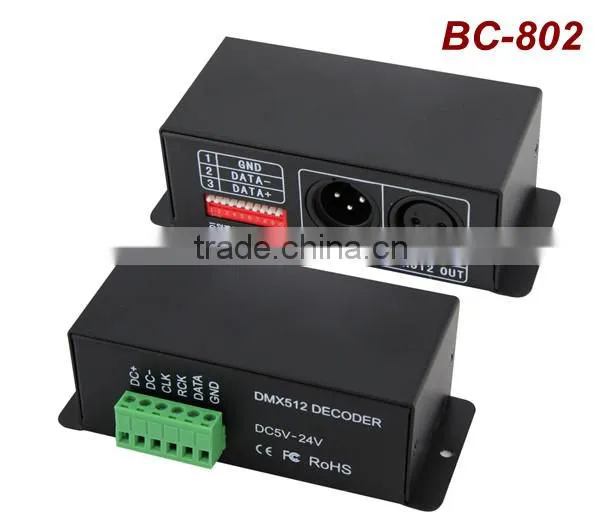

BC-802 DMX512 Data Decoder adopted the advanced decoding technology to convert the international
standard DMX512/1990 signal into standard SPI (TTL) / LPD6803 / LPD8806 / TM1809/P9813/
TLS3001/WS2801 signals .
each decoder has 96/510 DMX output channels, and the output channels can be expanded by adding
decoders, therefore, most of LED lights can be controlled by DMX512/1990 protocol via the signal conversion.
Product parameter
Model |
SPI |
6803 | 8806 | 1809 |
Input Voltage |
DC5V-DC24V |
|||
Input Signal |
DMX512/1990 |
|||
Output Signal |
SPI |
LPD6803 |
LPD8806 |
TM1809 |
Decode Channel |
96 |
512 |
512 |
512 |
Control LED QTY |
32 |
170 |
170 |
170 |
Control Chip model |
74HC595 |
LPD6803 |
LPD8803 |
TM1803,TM1804 |
DMX Socket |
Standard XLR-3 |
|||
Size (mm) |
L125*W52*H40(mm) |
|||
Weight |
300 g |
|||
Model |
9813 |
3001 |
2801 |
Input Voltage |
DC5V-DC24V |
||
Input Signal |
DMX512/1990 |
||
Output Signal |
P9813 |
TLS3001 |
WS2801 |
Decode Channel |
512 |
512 |
512 |
Control LED QTY |
170 |
170 |
170 |
Control Chip model |
P9813 |
TLS3001 |
WS2801 |
DMX Socket |
Standard XLR-3 |
||
Size (mm) |
L125*W52*H40(mm) |
||
Weight |
300 g |
||
Feature function
1.In put standard DMX512 protocol,Address can be set by DIP.
2.Automatically adapt input voltage DC5V-24V.
3.Self-Changing Mode exist.
4.Output TTL Signal.
5. Power loss memory function.
Application
widely used pixel light, digital tube light, floodlight, pixel screen, dancing floor light etc.
Conjunction diagram

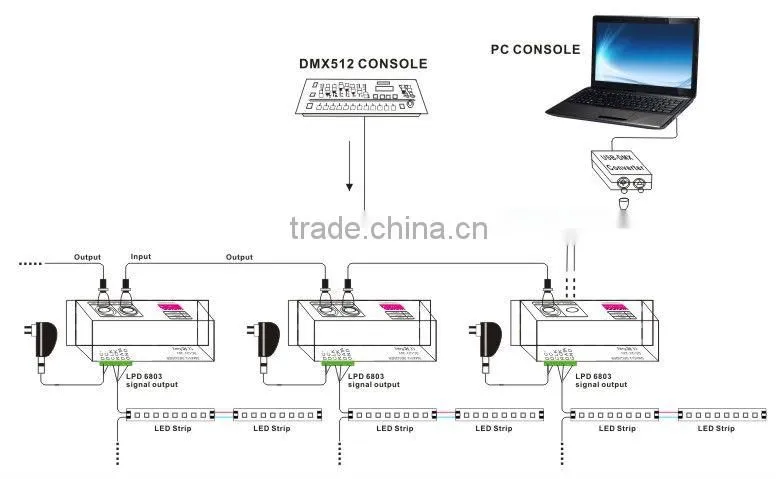

1. Connect with led strip

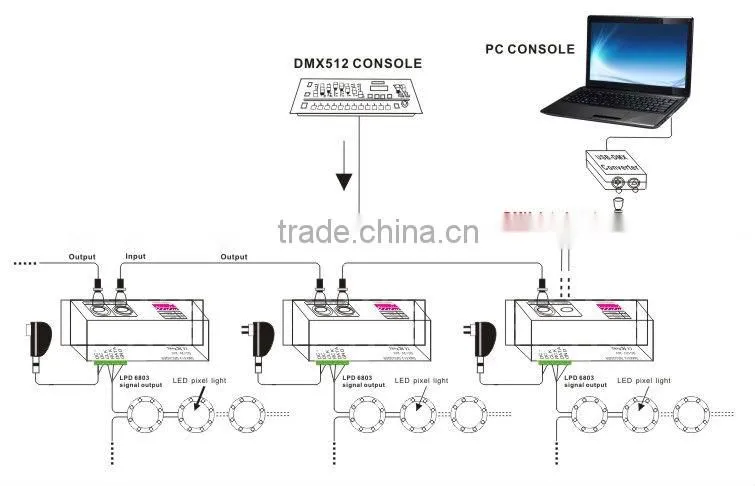

2. Connect with hi-power led
