Home > Electrical & Electronics > Switch > Push Button Switch > ONPOW 12V LED Latching Pushbutton 3NO3NC(LAS1BGQ,19MM,CE,CCC,ROHS,REACH,IP65,IP67,3NO3NC)
ONPOW 12V LED Latching Pushbutton 3NO3NC(LAS1BGQ,19MM,CE,CCC,ROHS,REACH,IP65,IP67,3NO3NC)
US$ 3.5 - 9.5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ONPOW
Model Number:
LAS1-BGQ
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ONPOW Waterproof Pushbutton(LAS1-GQ,19mm,IP65,IP67,CE,ROHS,REECH)US$ 3.5 - 8.5MOQ: 1 Piece -
ONPOW Illuminated Push Button Switch(LAS1-AGQ Series,19mm,CE,CCC,UL,Rohs,REACH Approval,anti-vandal,stainless Steel)US$ 2.8 - 6.5MOQ: 1 Piece
-
ONPOW Push Button Switch Price(8mm,12mm,16mm,CE,ROHS,REECH,IP65 OR IP67,Anti-vandal)US$ 0.8 - 2.8MOQ: 1 Piece
-
ONPOW Piano Switch(Rohs)US$ 0.04 - 0.35MOQ: 500 Pieces
-
ONPOW DIP SWITCH(DS,DP,DA Series)US$ 0.05 - 0.4MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
ONPOW
Model Number
LAS1-BGQ
Protection Level
IP65,IP67
Max. Current
5A
Max. Voltage
250V

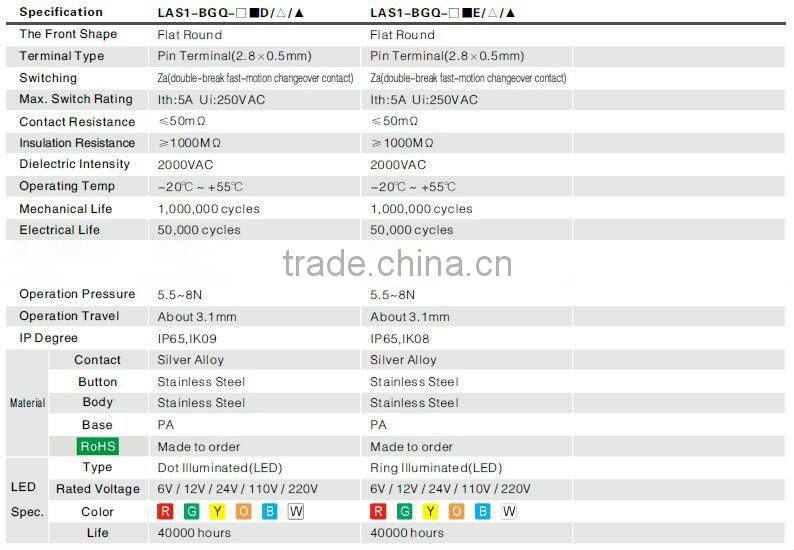

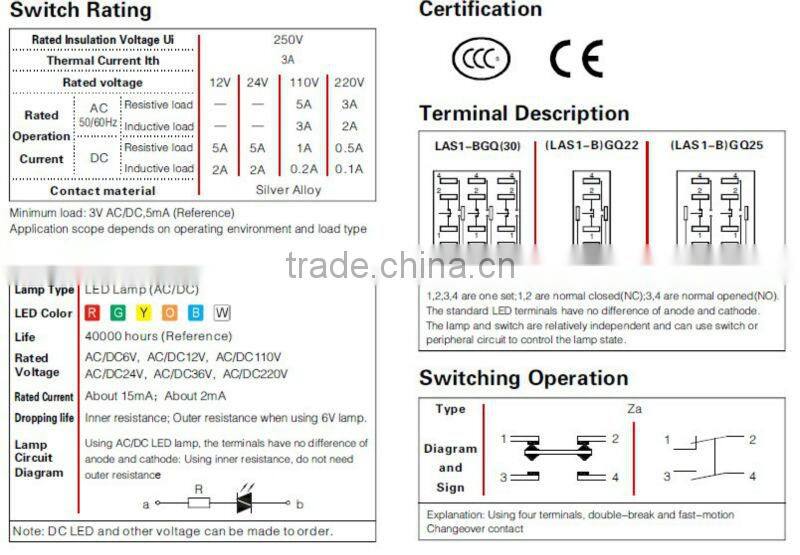

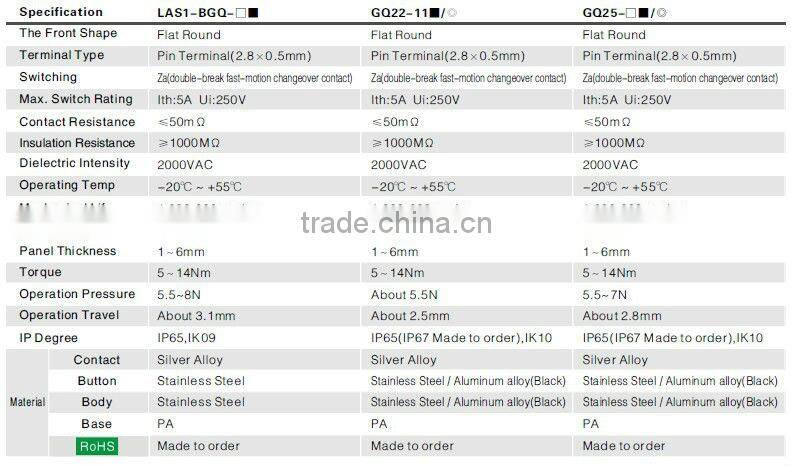

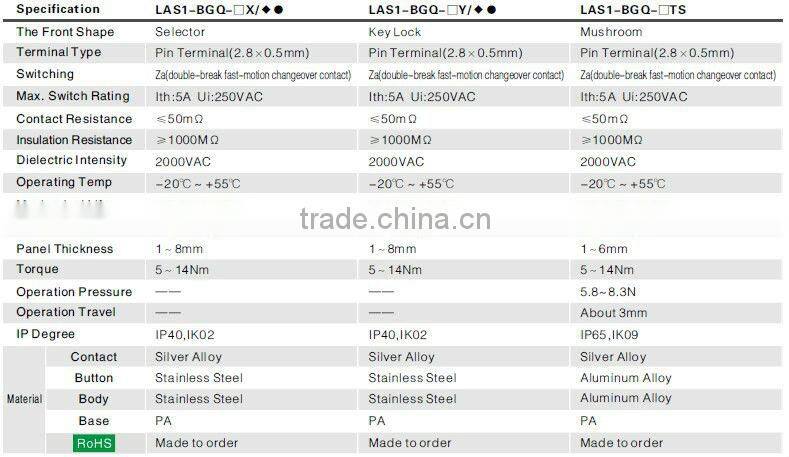

Specifications
ONPOW :25years only for pushbutton switch Contact Configuration:1NO1NC,2NO2NC,3NO3NCOperation Type(aa): Momentary /
Latching

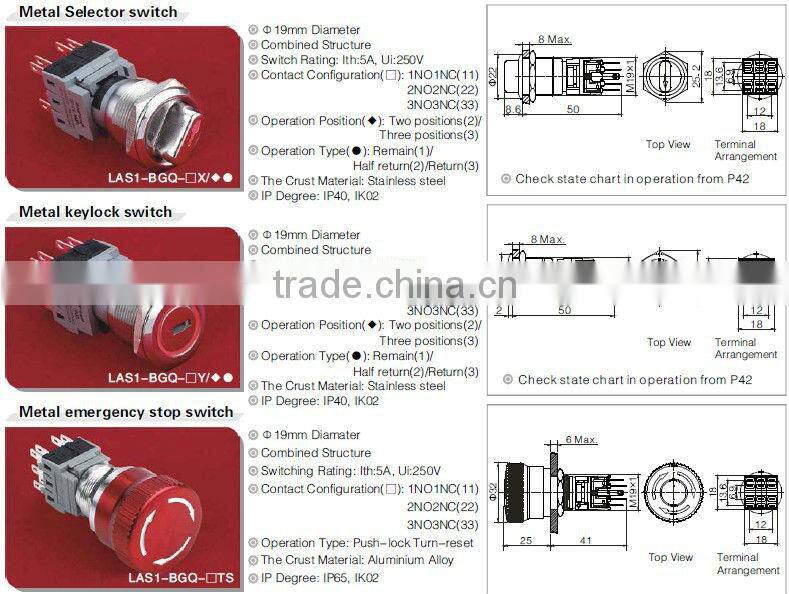

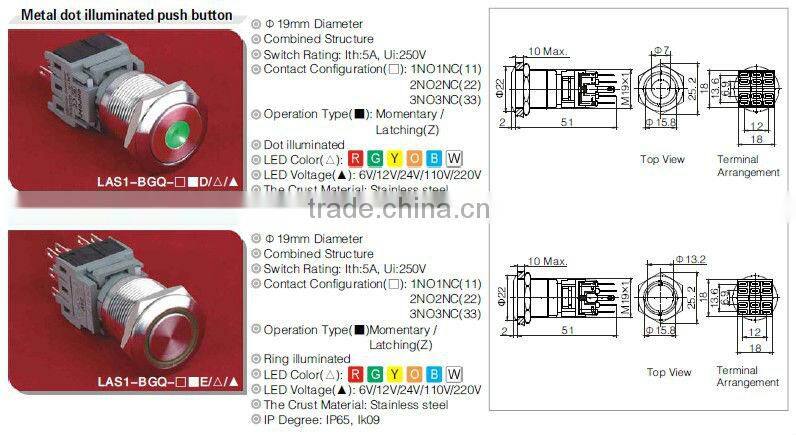

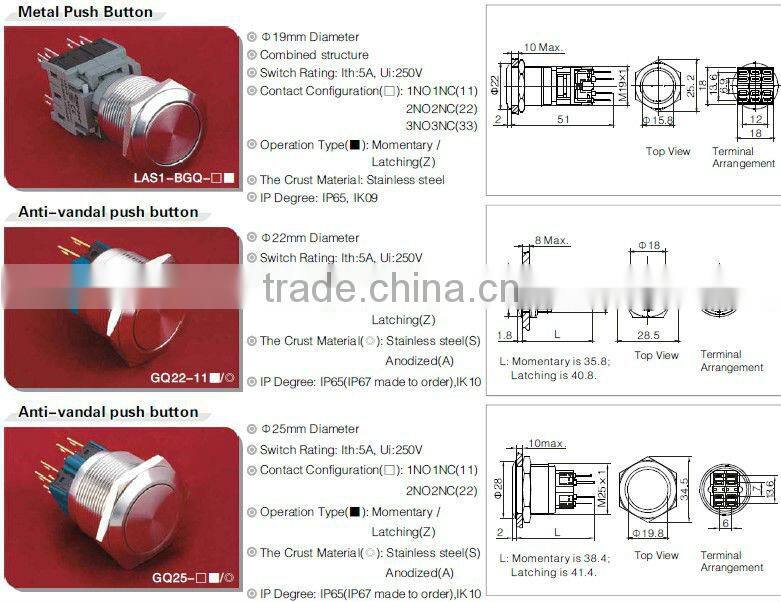

ONPOW LAS1-BGQ Series metal push button switch (19mm)
| LAS1 | / | / | / | / | / | / | / | / |
| Code of series | Code name BGQ BGQ22 BGQ25 BGQ30 | Contact structure 11 1NO1NC 22 2NO2NC 33 3NO3NC |
Operation mode Z Latching type X Selector type Y Key-lock type TS Emergency stop No letter means momentary |
Lamp type D Dot E Ring |
Operation position of selector and keylock type 2 Two position 3 Three positions Operation type of selector and keylock switch 1 Maintain 3 Return |
Lamp color R Red G Green Y Yellow O Orange B Blue W White |
Lamp voltage AC/DC 6V AC/DC 12V AC/DC 24V AC/DC 110V AC/DC 220V Note: Other voltage can be made to order |
The crust material S Stainless steel A Aluminium Alloy (Black anodized) |
Note: Pls read the catalog carefully, and choose the right part-number according to the sign.
2,LAS1-BGQ22,LAS1-BGQ25 can be writ ten as GQ22,GQ25.
ONPOW other series push button switch and indicator:
Packing information:40pcs/box,1000pcs/carton,22KGS/Carton
If you need more informaion pls contact us :
Puma chen
ONPOW / ONPOW PUSH BUTTON MANUFACTURE CO., LTD.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619
Tel: +86-577-62628788 MT: 86-13587700386 // Fax: +86-577-62623304
Website: http://hongbo.en.china.cn
SKYPE:
Work time: 8:0-11:30 13:00-17:30(Except Sunday)
