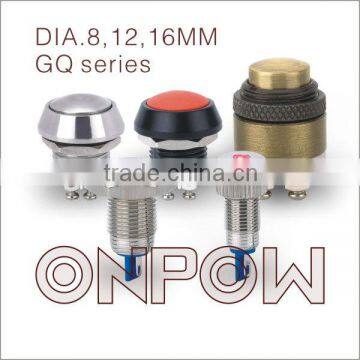

ONPOW Push button switch price(8mm,12mm,16mm,CE,ROHS,REECH,IP65 OR IP67,Anti-vandal)
- 200000 Piece / Pieces per Month
- NINGBO or SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
30 Years Industry Leader ONPOW Metal Touch Switch TS25E Dia. 25mm ring illuminated Waterproof IP68 ROHS
-
30 Years Industry Leader ONPOW Metal Touch Switch TS22E Dia. 22mm ring illuminated Waterproof IP68 ROHS
-
30 Years Industry Leader ONPOW Metal Touch Switch TS22B Dia. 22mm ring illuminated Waterproof IP68 ROHS
-
30 Years Industry Leader ONPOW Metal Touch Switch TS19B Dia. 19mm ring illuminated Waterproof IP68 ROHS
-
protect guard,switch guard
-
switch guard,protect guard,protect guards
Product Details
| Place of Origin | Zhejiang, China | Brand Name | ONPOW | |
| Model Number | GQ8,12 Series | Protection Level | IP65 OR IP67 | |
| Max. Current | 2A | Max. Voltage | 36V |
Product Description
Specifications
25years for push button switch and indicator8mm,12mm,16mm
Six color: Red,Green,Blue,Yellow,Black,White
IP65,IP67

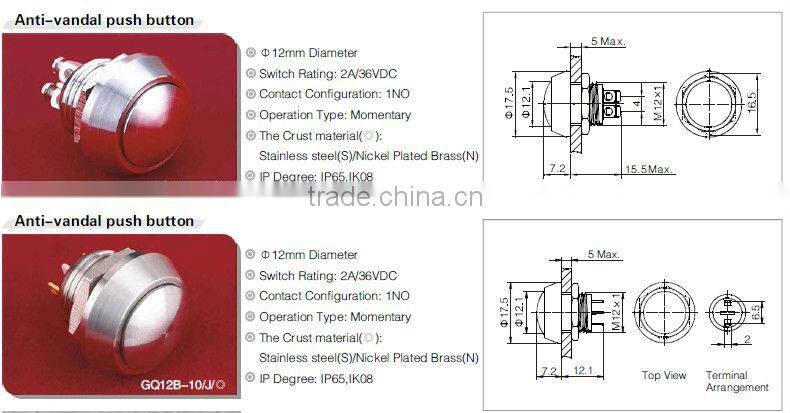

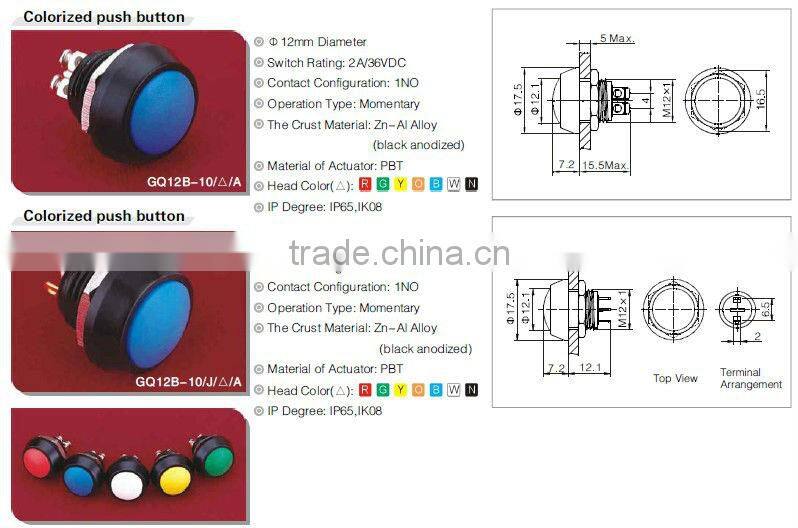

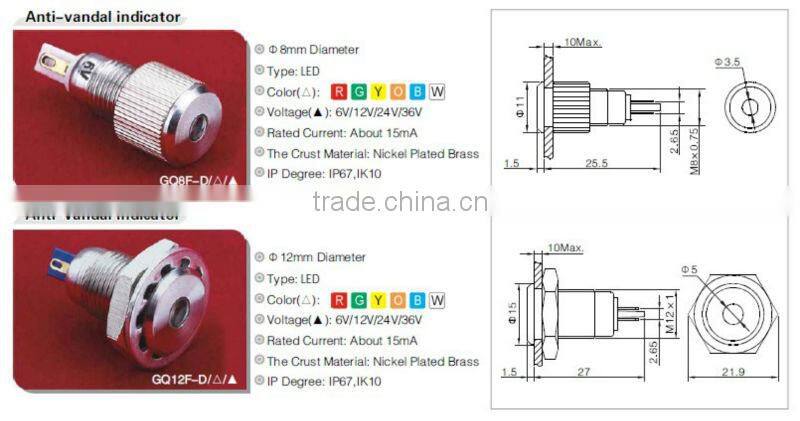

GQ12 Series(12mm)
| GQ | / | / | / | / | / | / | / | / |

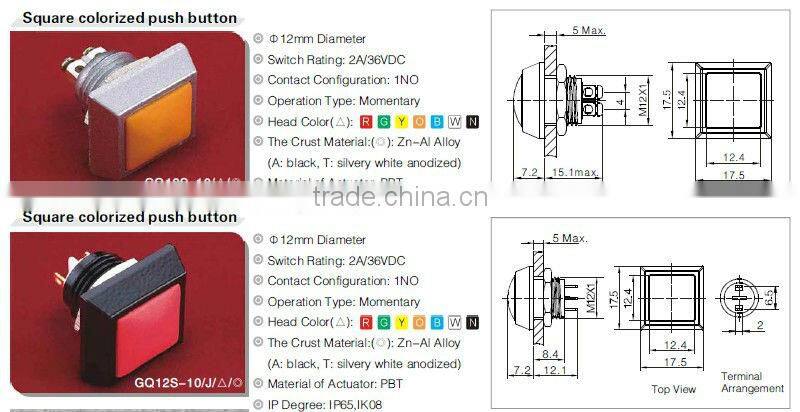

| Code of series | Code name 8mm 12mm 16mm 19mm | The front shape B Domed F Flat Round H High Round M Doorbell Push Button S Square Note: Square type is just for GQ12 | Contact structure 10 1NO Buzzer type M Continuous JM Incontinuous SM Flash buzzer continuous | Lamp type D Dot E Ring | Connect type J Pin terminal JL Long pin terminal No letter means screw terminal | Lamp color R Red G Green Y Yellow O Orange B Blue W White | Lamp and buzzer's voltage AC/DC 6V AC/DC 12V AC/DC 24V AC/DC 110V AC/DC 220V Note: Other voltage can be made to order | The crust material N Nickel-plated Brass S Stainless steel A Zn-Al alloy(black) T Zn-Al(silvery white) PC Engineering plastic |
Note: 1. Pls read the catalogue carefully, and choose the right part-number according to the sign.
2. Φ16(NC) and Φ19(NC) can be made to order for the screw terminal type.
Description:push button,push button switch
ONPOW ,push button,push button switch is the major manufacture for produce and develop push button switch,
Specifications:
1) Rated: 2A/48V
2) Electrical life: 200,000 cycles
3) Mechanical life: 1,000,000 cycles
4) Electrical function: off (on)
5) Panel thickness: 1 - 6mm
6) Contacts: silver
7) Bushing:
a) Nickel-plated brass
b) Gold-plated brass
c) Stainless steel
8) Actuator:
a) Nickel-plated brass
b) Gold-plated brass
c) Stainless steel
9) Panel cut-out: 12mm
10) IP rate: IP65 or IP67
Packing
information:40pcs/box,1000pcs/carton,22KGS/Carton
If you need more informaion pls contact us :
Puma chen
ONPOW / ONPOW PUSH BUTTON MANUFACTURE CO., LTD.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619
Tel: +86-577-62628788 MT: 86-13587700386 // Fax: +86-577-62623304
Website: http://hongbo.en.china.cn
SKYPE:
Work time: 8:0-11:30 13:00-17:30(Except Sunday)
