Home > Electrical & Electronics > Switch > DIP Switch > ONPOW DIP SWITCH(DS,DP,DA Series)

ONPOW DIP SWITCH(DS,DP,DA Series)

Name: ONPOW DIP SWITCH(DS,DP,DA Series)
Brand: ONPOW
SKU: 131085323
Availability: InStock

Onpow Push Button Manufacture Co., Ltd.

ONPOW DIP SWITCH(DS,DP,DA Series) thumbnail-1

ONPOW DIP SWITCH(DS,DP,DA Series) photo-1

US$ 0.05 - 0.4 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

ONPOW

Model Number:

DIP SWITCH(DS,DP,DA series)

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name ONPOW

Model Number DIP SWITCH(DS,DP,DA series)

Max. Current 100mA

Max. Voltage 50VDC

Specifications

ONPOW : 25years Experience, Your reliable partner!!

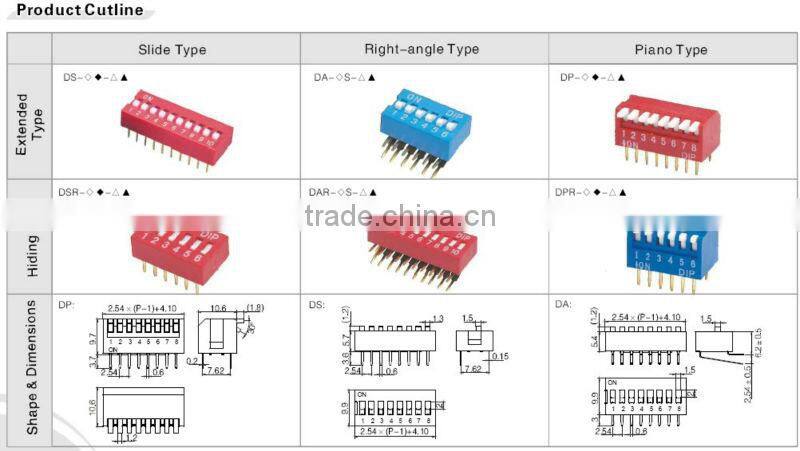

DIP SWITCH(DS,DP,DA series)

ONPOW : 25years Experience, Your reliable partner!!
DIP SWITCH(DS,DP,DA series)

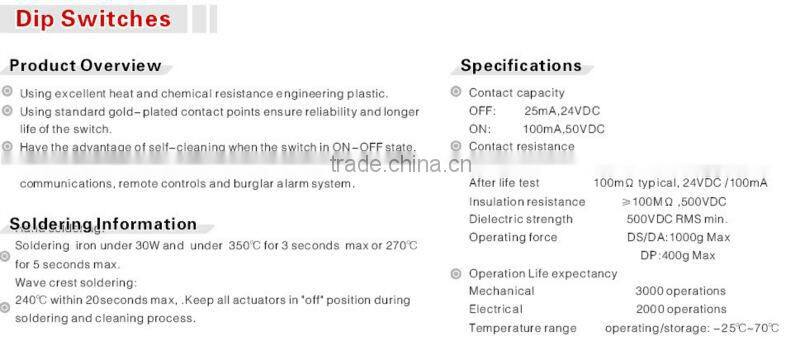

Contact capacity
OFF: 25mA,24VDC
ON: 100mA,50VDC
Contact resistance
Initial 50mΩ 24VDC /100mA
After life test 100mΩ typical, 24VDC /100mA
Insulation resistance ≥100MΩ,500VDC
Dielectr ic strength 500VDC RMS min.
Operating force DS/DA:1000g Max
DP:400g Max
Operation Life expectancy
Mechanical 3000 operations
Electrical 2000 operations
Temperature range operating/storage: -25°C~70°C

Packing information DIP SWITCH(DS,DP,DA series) :40pcs/box,1000pcs/carton,22KGS/Carton
