ONPOW Waterproof Pushbutton(LAS1-GQ,19mm,IP65,IP67,CE,ROHS,REECH)
US$ 3.5 - 8.5
/ Piece
1 Piece(Min. Order)
- shanghai or ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
ONPOW Illuminated Push Button Switch(LAS1-AGQ Series,19mm,CE,CCC,UL,Rohs,REACH Approval,anti-vandal,stainless Steel)
-
ONPOW Push Button Switch Price(8mm,12mm,16mm,CE,ROHS,REECH,IP65 OR IP67,Anti-vandal)
-
30 Years Industry Leader ONPOW Metal Touch Switch TS25E Dia. 25mm Ring Illuminated Waterproof IP68 ROHS
-
30 Years Industry Leader ONPOW Metal Touch Switch TS22E Dia. 22mm Ring Illuminated Waterproof IP68 ROHS
-
30 Years Industry Leader ONPOW Metal Touch Switch TS22B Dia. 22mm Ring Illuminated Waterproof IP68 ROHS
-
30 Years Industry Leader ONPOW Metal Touch Switch TS19B Dia. 19mm Ring Illuminated Waterproof IP68 ROHS
Product Details
| Place of Origin | Zhejiang, China | Brand Name | ONPOW | |
| Model Number | LAS1-GQ series | Protection Level | IP65 | |
| Max. Current | 5A | Max. Voltage | 250V |
Product Description

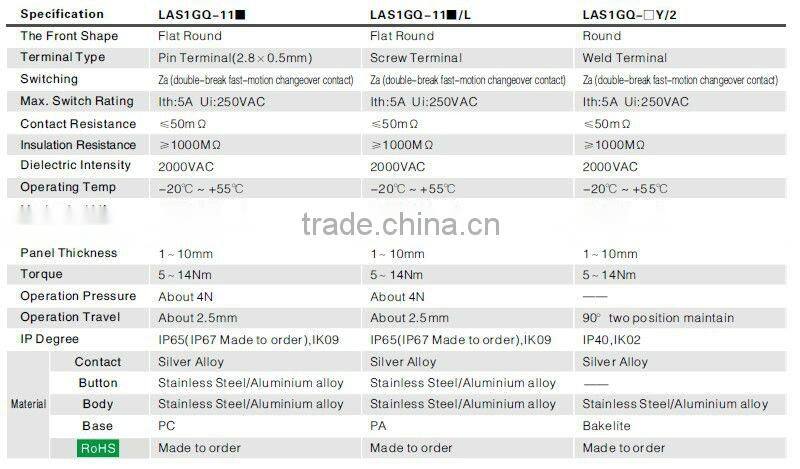

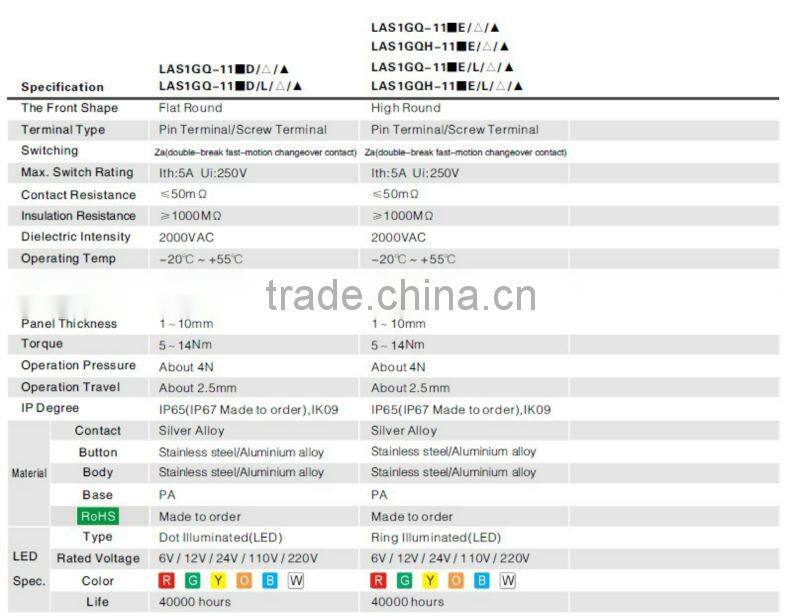

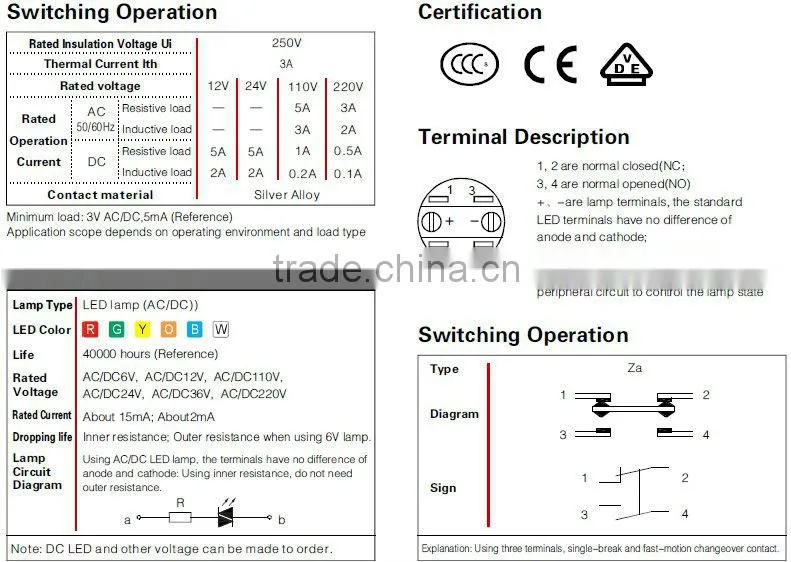

Specifications

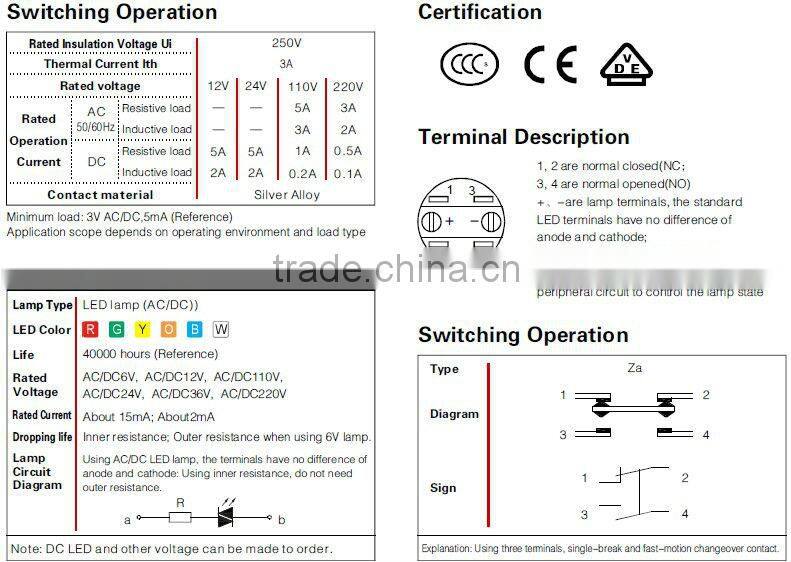

ONPOW :25years only for pushbutton switch and indicatorContact Configuration: 1NO1NC
Operation Type: Momentary /Latching(Z)

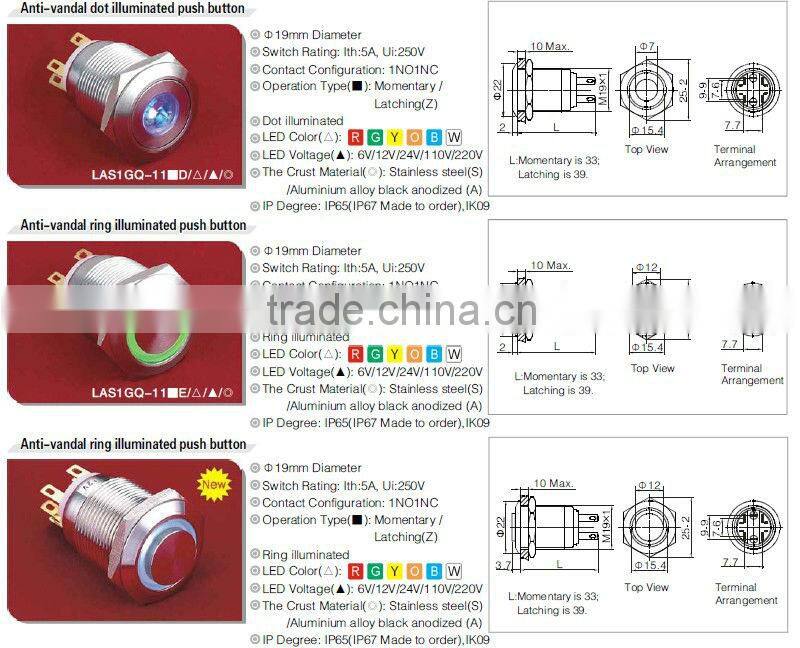

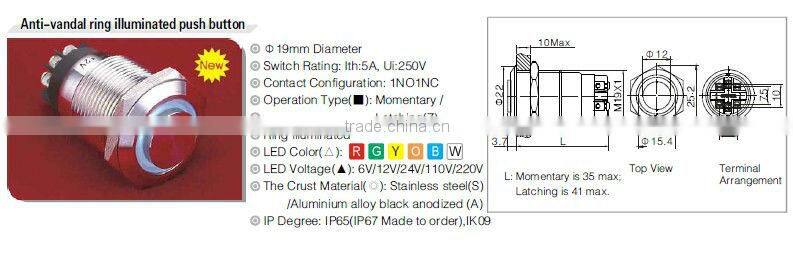

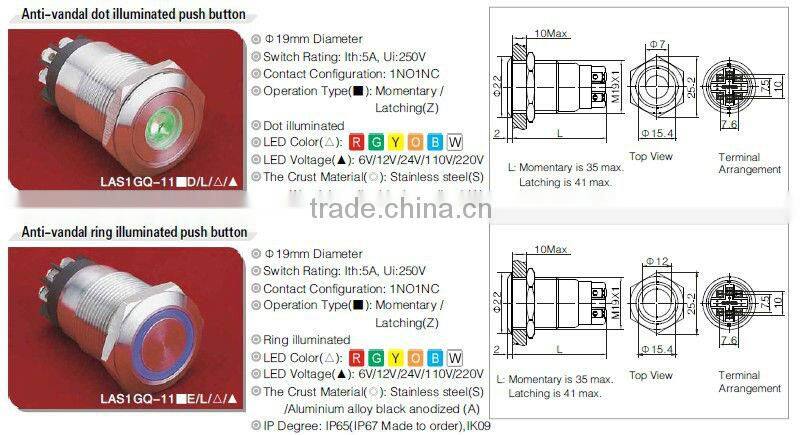

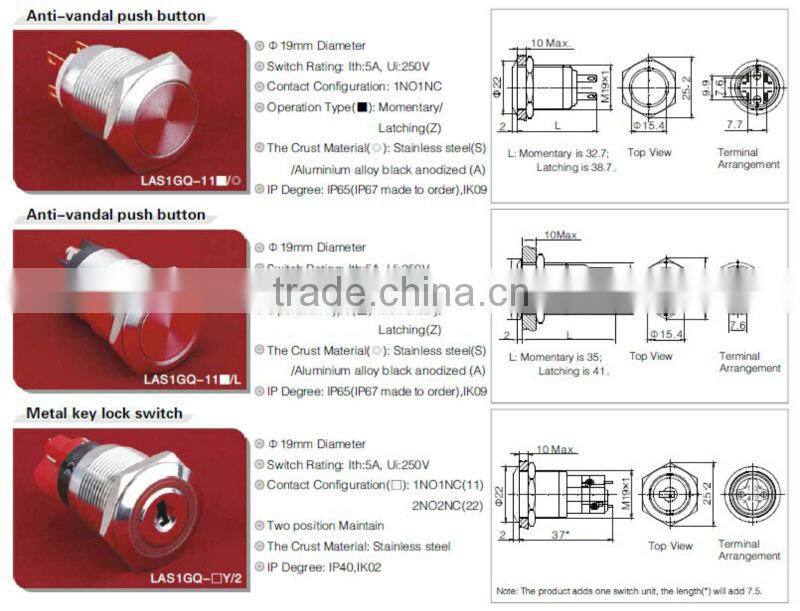

ONPOW LAS1GQ series anti vandal push button swith(19mm) :
| LAS1 | GQ | / | / | / | / | / | / | / |
| Code of series | Code name | Contact structure 11 1NO1NC | Operation mode Z Latching type Y Key-lock type No letter means momentary | Lamp type D Dot E Ring | Connector type L Screw terminal No letter means pin terminal | Lamp color R Red G Green Y Yellow O Orange B Blue W White | Lamp voltage AC/DC 6V AC/DC 12V AC/DC 24V AC/DC 110V AC/DC 220V Note: Other voltage can be made to order | The crust material S Stainless steel A Aluminium Alloy (Black anodized) |
ONPOW other series push button switch and indicator:
Packing information:40pcs/box,1000pcs/carton,22KGS/Carton
If you need more informaion pls contact us :
Puma chen
ONPOW / ONPOW PUSH BUTTON MANUFACTURE CO., LTD.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619
Tel: +86-577-62628788 MT: 86-13587700386 // Fax: +86-577-62623304
Website: http://hongbo.en.china.cn
SKYPE:
Work time: 8:0-11:30 13:00-17:30(Except Sunday)
