Home > Electrical & Electronics > Switch > Push Button Switch > ONPOW Illuminated Push Button Switch(LAS1-AGQ Series,19mm,CE,CCC,UL,Rohs,REACH Approval,anti-vandal,stainless Steel)
ONPOW Illuminated Push Button Switch(LAS1-AGQ Series,19mm,CE,CCC,UL,Rohs,REACH Approval,anti-vandal,stainless Steel)
US$ 2.8 - 6.5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ONPOW
Model Number:
LAS1-AGQ
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ONPOW Push Button Switch Price(8mm,12mm,16mm,CE,ROHS,REECH,IP65 OR IP67,Anti-vandal)US$ 0.8 - 2.8MOQ: 1 Piece -
ONPOW Piano Switch(Rohs)US$ 0.04 - 0.35MOQ: 500 Pieces
-
ONPOW DIP SWITCH(DS,DP,DA Series)US$ 0.05 - 0.4MOQ: 1000 Pieces
-
ONPOW Dip Switch(Rohs)US$ 0.04 - 0.35MOQ: 500 Pieces
-
ONPOW 2 Pin Piano Switch(Rohs)US$ 0.04 - 0.35MOQ: 500 Pieces
Place of Origin
Zhejiang, China
Brand Name
ONPOW
Model Number
LAS1-AGQ
Protection Level
IP67
Max. Current
5A
Max. Voltage
250V
Specifications

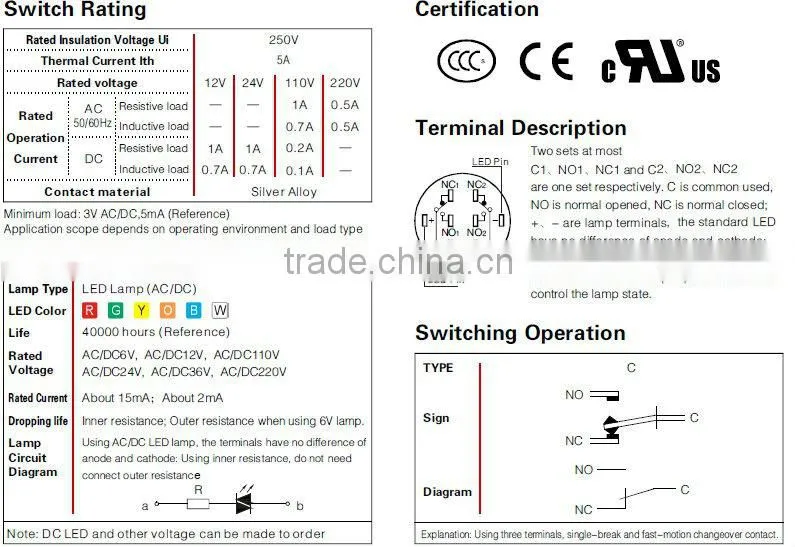

19mm Diameter (UL)Switch Rating: Ith:5A, Ui:250V
Contact Configuration:1NO1NC,2NO2NC
Operation Type(aa): Momentary /Latching

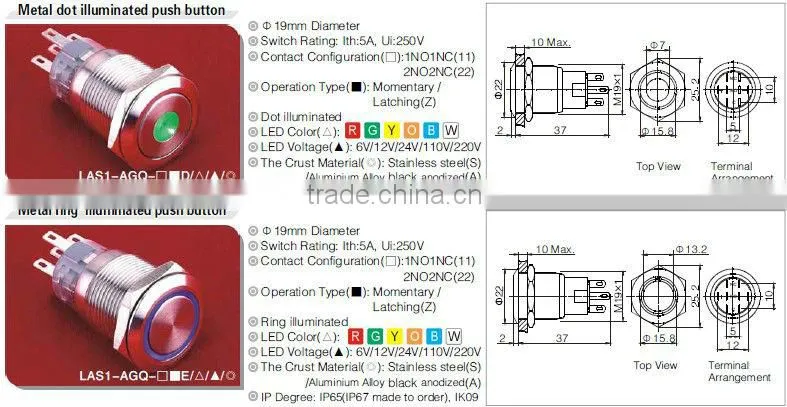

ONPOW illuminated push button switch
| LAS1 | / | / | / | / | / | / | / | / |
| Code of series | Code name AGQ AGQ30 | Contact structure 11 1NO1NC 22 2NO2NC |
Operation mode Z Latching type X Selector type Y Key-lock type M Buzzer SM Flash buzzer No letter means momentary |
Lamp type D Dot E Ring |
Operation position of selector and keylock type 2 Two position 3 Three positions Operation type of selector and keylock switch 1 Maintain 3 Return |
Lamp color R Red G Green Y Yellow O Orange B Blue W White |
Lamp and buzzer's voltage AC/DC 6V AC/DC 12V AC/DC 24V AC/DC 110V AC/DC 220V Note: Other voltage can be made to order |
The crust material S Stainless steel A Aluminium Alloy (Black anodized) |
ONPOW other series push button switch and indicator:
Packing information: 40pcs/box,1000pcs/carton,22kgs/carton
