Help CenterONPOW Doorbell Push Button Switch(LAS2GQ,16mm,CE,ROHS,REECH,IP40,IP65,IP67)
Related Products
-
ONPOW Anti-Vandal PushButton Switch(IP65,IK09,Rohs,16mm,GQ19 Series)US$ 1.2 - 2.2MOQ: 500 Pieces -
ONPOW 12V LED Latching Pushbutton 3NO3NC(LAS1BGQ,19MM,CE,CCC,ROHS,REACH,IP65,IP67,3NO3NC)US$ 3.5 - 9.5MOQ: 1 Piece
-
ONPOW Waterproof Pushbutton(LAS1-GQ,19mm,IP65,IP67,CE,ROHS,REECH)US$ 3.5 - 8.5MOQ: 1 Piece
-
ONPOW Illuminated Push Button Switch(LAS1-AGQ Series,19mm,CE,CCC,UL,Rohs,REACH Approval,anti-vandal,stainless Steel)US$ 2.8 - 6.5MOQ: 1 Piece
-
ONPOW Push Button Switch Price(8mm,12mm,16mm,CE,ROHS,REECH,IP65 OR IP67,Anti-vandal)US$ 0.8 - 2.8MOQ: 1 Piece
Specifications
ONPOW:25years only for pushbutton switch and indicatorDiameter:16mm
Operation Type(aa):Momentary and Latching
ONPOW
Product Name: Push Button Switch, illuminated metal pushbutton, sealed vandal resistant pushbutton, waterproof switch

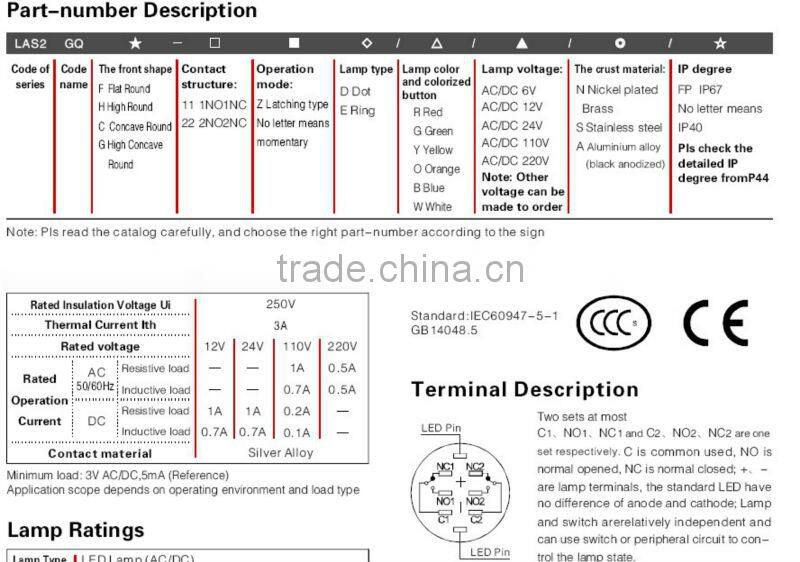

| LAS2 | GQ | / | / | / | / | / | / | / | / |
| Code of series | Code name | The front shape F Flat Round H High Round C Concave Round G High Concave Round |
Contact structure 11 1NO1NC 22 2NO2NC |
Operation mode: Z Latching type No letter means momentary |
Lamp type D Dot E Ring |
Lamp color R Red G Green Y Yellow O Orange B Blue W White |
Lamp voltage AC/DC 6V AC/DC 12V AC/DC 24V AC/DC 110V AC/DC 230V Note: Other voltage can be made to order |
The crust material N Nickel-plated Brass S Stainless steel A Zn-Al alloy(black) |
IP degree P IP65 No letter means IP40 Pls check the detailed IP degree fromP44 |
Dot illuminated Pushbutton Switch
dia.16mm Panel Cutout
Latching available
1NO1NC / 2NO2NC
CE certificate & RoHS
ONPOW other series push button switch and indicator:
Packing information: 40pcs/box,1000pcs/carton,15kgs/carton
If you need more informaion pls contact us :
Puma chen
ONPOW / ONPOW PUSH BUTTON MANUFACTURE CO., LTD.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619
Tel: +86-577-62628788 MT: 86-13587700386 // Fax: +86-577-62623304
Website: http://hongbo.en.china.cn
SKYPE:
Work time: 8:0-11:30 13:00-17:30(Except Sunday)
