TGS /TZD type hydrapulper machine
- 10 Set / Sets per Month
- qingdao port
- ZSW2 adjustable double-circuit hydrapulper machine in paper machine
- ZD series D type hydrapulper machine in paper machine
- ZSG series high-consistency vertical hydrapulper machine in paper machine
- ZSGJ series energy-efficient hydrapulper machine in paper machine
- ZSW type horizontal hydrapulper machine for paper making
- ZGG series rotary-drum hydrapulper machine
Product Details
Condition: | New | Type: | Pulping Equipment | Computerized: | Yes |
Place of Origin: | Shandong, China | Brand Name: | YIDAFA | Model Number: | TGS/TZD |
Voltage: | 380v | Power(W): | 10-10kw/h | Dimension(L*W*H): | depends on model and configuration |
Weight: | 2-200t | Certification: | ISO9001 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
wooden case
Product Description
TGS type high hydrapulper machine
TGS high hydrapulper machine is used in the production line of waste paper deinking in pulp-making industry,It has the ability to pulp waste paper promptly, thick liquid board and paper machine decrease paper and makes its effort to have protected the fibre original character, when add the chemical, it can make the ink particle and impurity to separated out from the fibre to get the thick liquid with high white degree. It has the advantages of great production ability, good efficiency pulping, saving steaming medicine and convenient to operating and maintaining.
Main specification: 1m³,3m³,5m³,10m³,15m³,20m³,25m³
model | Nominal volume | Capacity production | Treating consistency(%) | Power of motor |
TGS-1 | 1m³ | 10-15 | 2-5 | 7.5-11 |
TGS-3 | 3m³ | 20-30 | 2-5 | 11-22 |
TGS-5 | 5m³ | 30-50 | 5-10 | 22-37 |
TGS-10 | 10m³ | 50-60 | 5-10 | 30-45 |
TGS-15 | 15m³ | 60-80 | 5-10 | 45-75 |
TGS-20 | 20m³ | 80-90 | 5-10 | 75-90 |
TGS-25 | 25m³ | 90-100 | 5-10 | 90-110 |
TZD hydrapulper machine:
TZD series D type hydrapulper machine has changed the streamline direction of the traditional pulp machine and make the thick liquid material always tending to the center direction. It improves the height of thick liquid location of the center position, and increases the number of striking with the thick liquid material to the impeller at the same time and up to 30% in improving the thick liquid material. This equipment is the ideal machine that the papermaking industry used in the to pulp the thick liquid board, decreased paper and wasted paper intermittently and continuously.
Model | Nominal volume (m³)
| Capacity of production(T/D)
| Treatomg consistency(%)
| Power of motor(KW)
|
TZD—10 | 10 | 60—90 | 5—10 | 110 |
TZD—15 | 15 | 80—120 | 5—10 | 160 |
TZD—20 | 20 | 140—180 | 5—10 | 185 |
TZD—25 | 25 | 180—230 | 5—10 | 250 |
TZD—30 | 30 | 230—280 | 5—10 | 280 |
TZD—40 | 40 | 300—370 | 5—10 | 355 |
5m³ Upper-transmission high consistency pulper

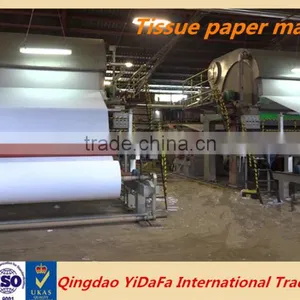

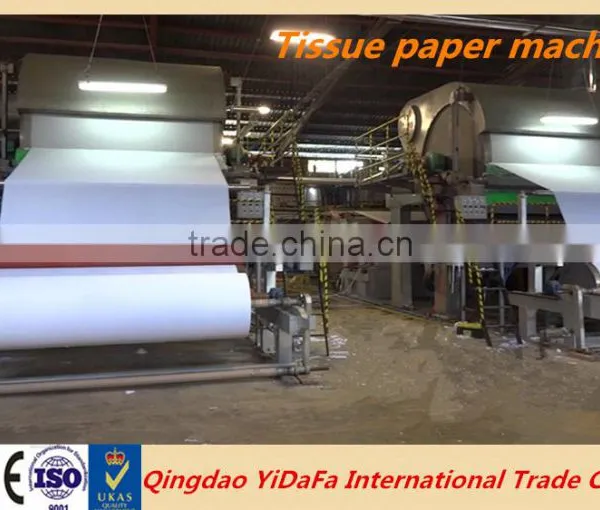

Environmental tissue/toilet paper machine (please click the picture and see the detail information)
ZFDautomatic rewinding and perforating machine (Please click the picture and see the detail informational)
ZF toilet bobbin slitter machine (Please click the picture and see the detail information)
Multi-cylinder long mesh packaging paper machine(please click the picture and see the detail information)
Office supplies paper machine(A4 paper machine)(please click the picture and see the detail information)
Dryer cylinder in paperr machine(please click the picture and see the detail information)
1.The business contact on both sides will reply within 16 hours .
2.During warranty period, the company provide the relevant technical services for free,Such as equipment quality problem resulting from the design and manufacturing equipment, which the company will be responsible for replacement and maintenance.
3.After the expiration of the warranty, our company provide customers with a lifelong technical service and spare parts with preferential price and efficient manner over a long period of time.
Our company has several paper machine manufacturing enterprises and keeps a long-term and stable cooperation with the first-class large paper machinery manufacturers in the world.Our company can provide for global customers with tissue paper machine, office supplies paper machine, packaging paper machine, white board paper machine with different types,high quality,energy conservation and environmental protection and pulping equipment, paper processing equipment and various accessories, spare parts,consumables.
workshop
1.How to install and maintain the machine?
A: Firstly,we will provide the installation guild with the machine for your reference.
Secondly,our company is responsible for training production workers for you, ensuring that the workers will be independent operation.
2.How can we get the matching accessories or wearing parts conveniently?
A: During the warranty,Our company can replace the accessories for free .Out of warranty,we can provide them at the preferable price .In fact,the wearing parts are standard parts that you could get it in your country at your convenience.
Warm Tips:
1.Before installation,you should check that equipment’s model and dimension are all right with the parts complete d and level remaining.
2.Before the debugging of installation,Checking each part is correct, lubrication supply normal.water, electricity values reaching the standard.
3.During Operation,you should pay attention to keep daily inspection, cleaning and oiling.and then examine and repair regularly.
