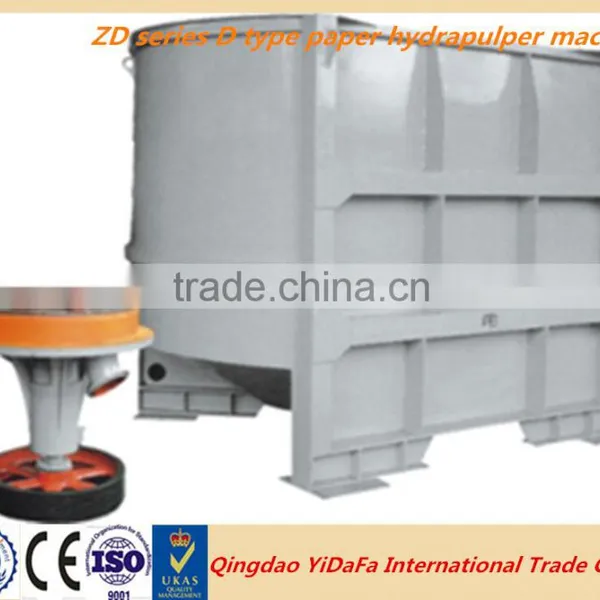

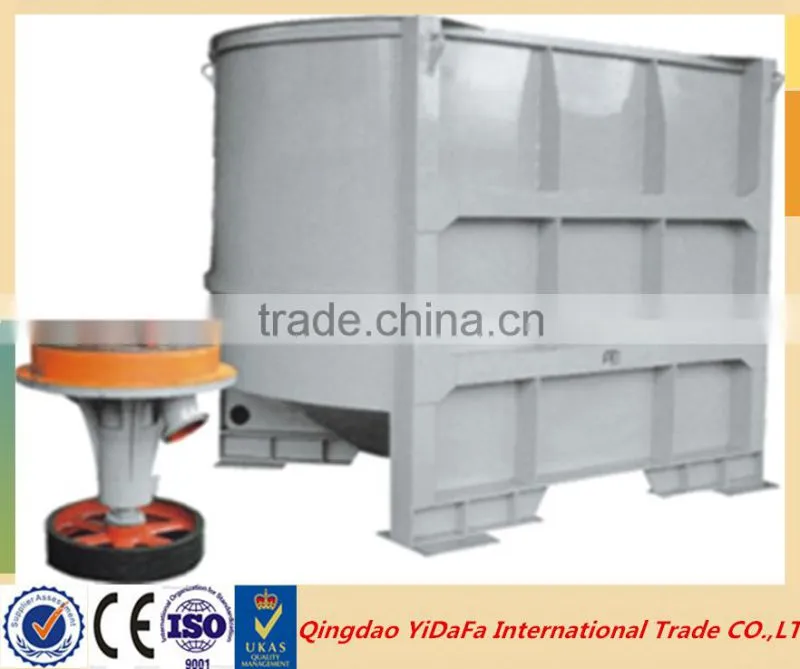

ZD series D type hydrapulper machine
Application and feature:
D type hydrapulper machine is designed by foreign advanced technology, and on the basis of the existing traditional pulp machine. Its characteristic is that off-center rotor makes pulp faster in speed and higher frequency with motor.Traditional hydrapulper machine produce a rotary flow unimpeded, which paper material moves to the center of the rotor according to the spiral trajectory, while D type hydrapulper has changed the way of the flow, making the paper material more quickly in contact with the rotor, which can shorten the paper into pulp material pulping time, and increase production capacity without any increase in power and volume.This machine is generally equipped with twisted rope machine and sediment well, to remove elongated coil impurities, such as plastic package,rope,iron wire, etc.
Main parameter:
Model |
ZD5 |
ZDl0 |
ZDl5 |
ZD20 |
ZD25 |
ZD30 |
ZD40 |
ZD50 |
|
Volume m3 |
5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
|
Pulping consistency % |
3-5 |
||||||||
Capacity t/d |
25-40 |
60-80 |
80 -120 |
140 -180 |
180 -230 |
230 -280 |
300 -370 |
400 -450 |
|
Sieve specification mm |
φ10-φ24 |
||||||||
Motor |
Model |
Y315M-6 |
Y315M-6 |
Y355M1-6 |
Y255M2-6 |
Y355L1-6 |
Y400 -8 |
Y355 -4 |
400 |
power |
75 |
110 |
160 |
185 |
220 |
280 |
355 |
450 |
|
voltage |
380 |
||||||||
Weight kg |
5600 |
6200 |
8920 |
11000 |
13000 |
19500 |
25500 |
31500 |
|

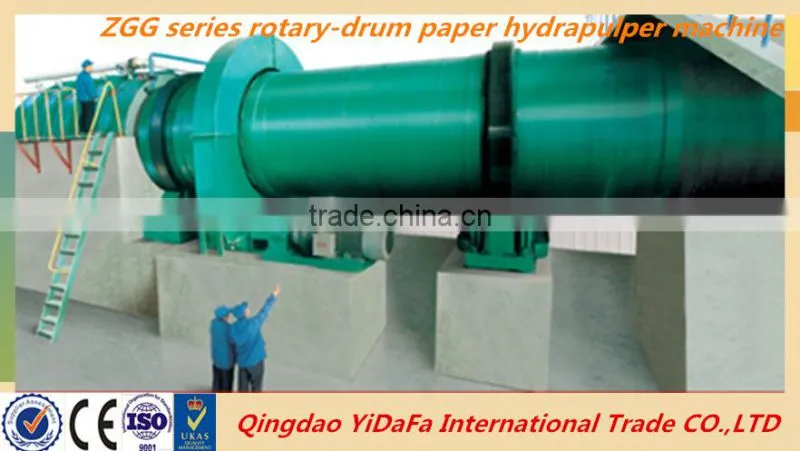

ZGG series rotary-drum hydrapulper machine(please click the picture and see the detailed information)

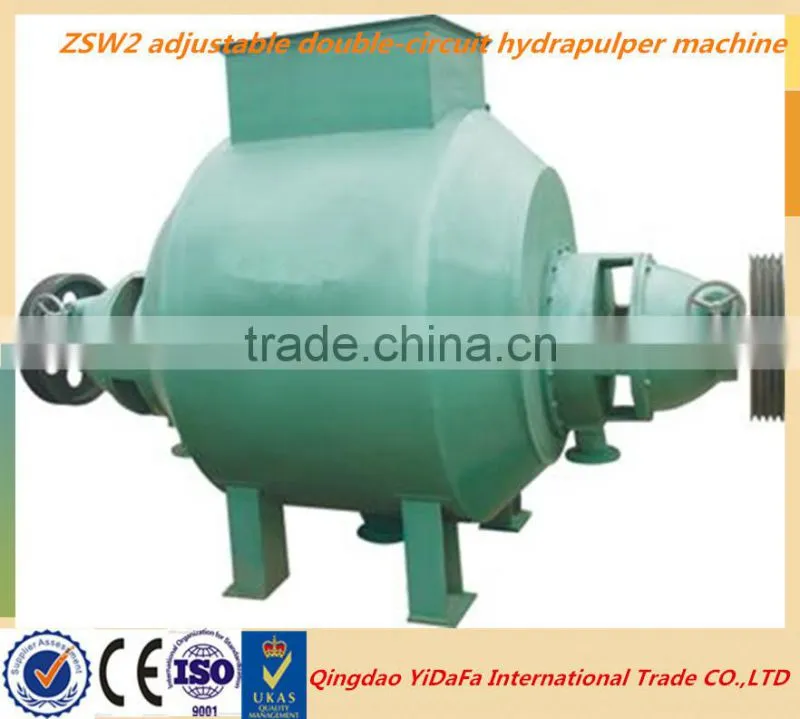

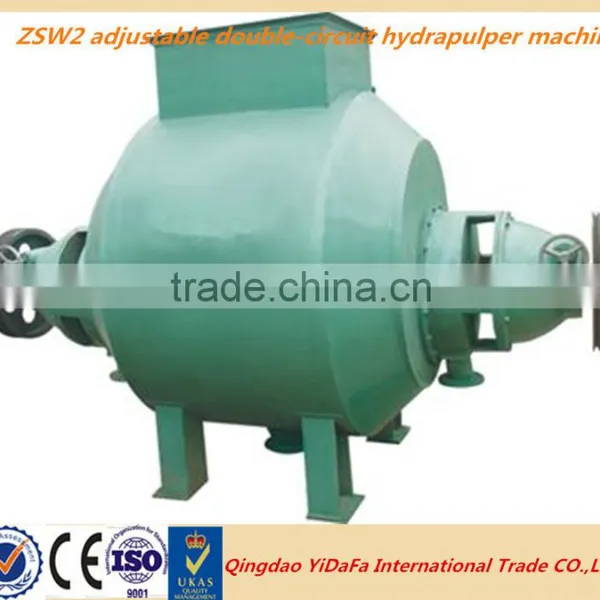

ZSW2 adjustable double-circuit hydrapulper machine in paper machine (please click the picture and see the detailed information)

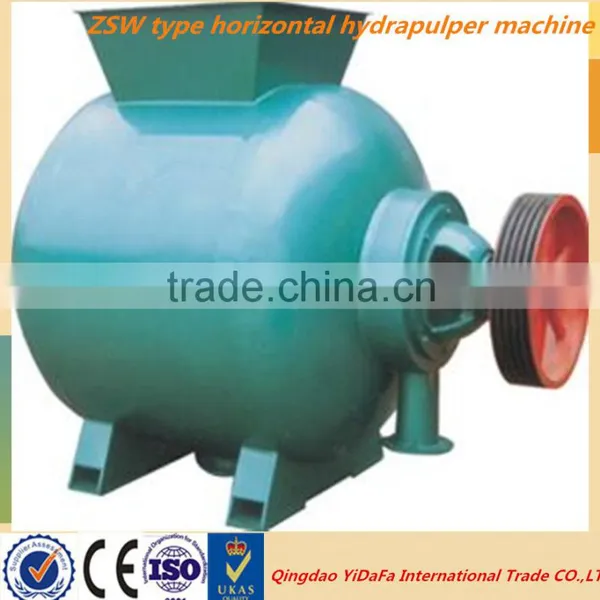

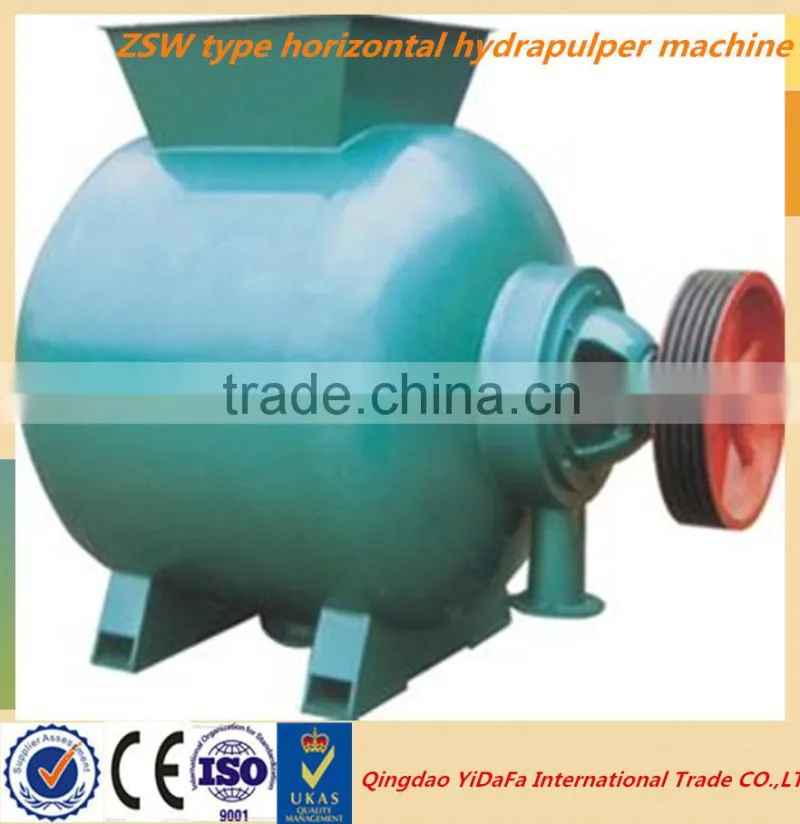

ZSW type horizontal hydrapulper machine in paper machine (please click the picture and see the detailed information)
Environmental tissue/toilet paper machine (please click the picture and see the detailed information)
Multi-cylinder long mesh packaging paper machine(please click the picture and see the detailed information)
Office supplies paper machine(A4 paper machine)(please click the picture and see the detailed information)
Dryer cylinder in paperr machine(please click the picture and see the detailed information)

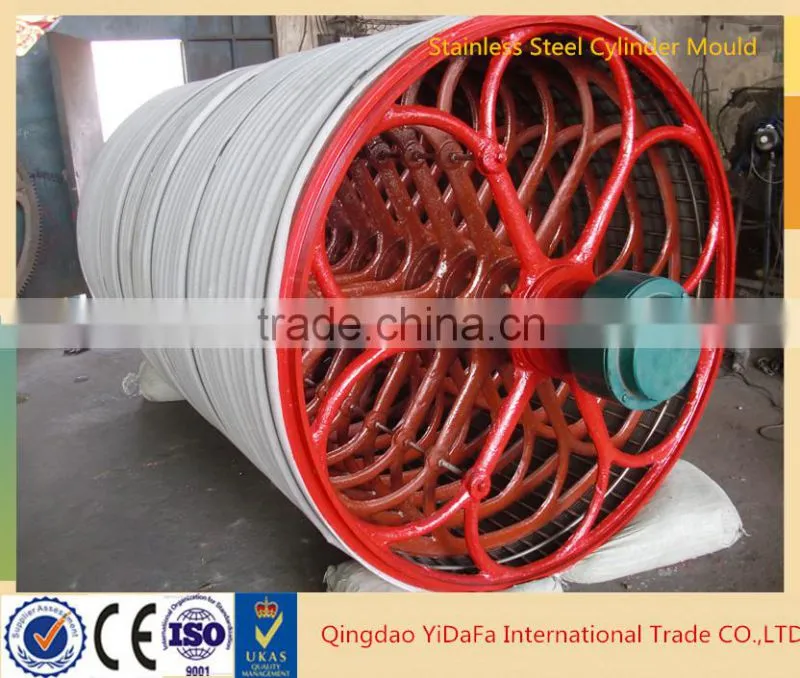

Stainless steel cylinder mould paper machine (please click the picture and see the detailed information)
ZFDautomatic rewinding and perforating machine (Please click the picture and see the detailed information)
ZF toilet bobbin slitter machine (Please click the picture and see the detailed information)
1.The business contact on both sides will reply within 16 hours .
2.During warranty period, the company provide the relevant technical services for free,Such as equipment quality problem resulting from the design and manufacturing equipment, which the company will be responsible for replacement and maintenance.
3.After the expiration of the warranty, our company provide customers with a lifelong technical service and spare parts with preferential price and efficient manner over a long period of time.
Our company has several paper machine manufacturing enterprises and keeps a long-term and stable cooperation with the first-class large paper machinery manufacturers in the world.Our company can provide for global customers with tissue paper machine, office supplies paper machine, packaging paper machine, white board paper machine with different types,high quality,energy conservation and environmental protection and pulping equipment, paper processing equipment and various accessories, spare parts,consumables.
1.How to install and maintain the machine?
A: Firstly,we will provide the installation guild with the machine for your reference.
Secondly,our company is responsible for training production workers for you, ensuring that the workers will be independent operation.
2.How can we get the matching accessories or wearing parts conveniently?
A: During the warranty,Our company can replace the accessories for free .Out of warranty,we can provide them at the preferable price .In fact,the wearing parts are standard parts that you could get it in your country at your convenience.
