ZSW type horizontal hydrapulper machine for paper making
- 10 Set / Sets per Month
- qingdao
Product Details
Condition: | New | Type: | Pulping Equipment | Computerized: | Yes |
Place of Origin: | Shandong, China | Brand Name: | YIDAFA | Model Number: | ZSW |
Voltage: | 380v | Power(W): | 10-100kw/h | Dimension(L*W*H): | depends on model and configuration |
Weight: | 10-30t | Certification: | ISO9001 | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
wooden case/wooden pallet
Product Description

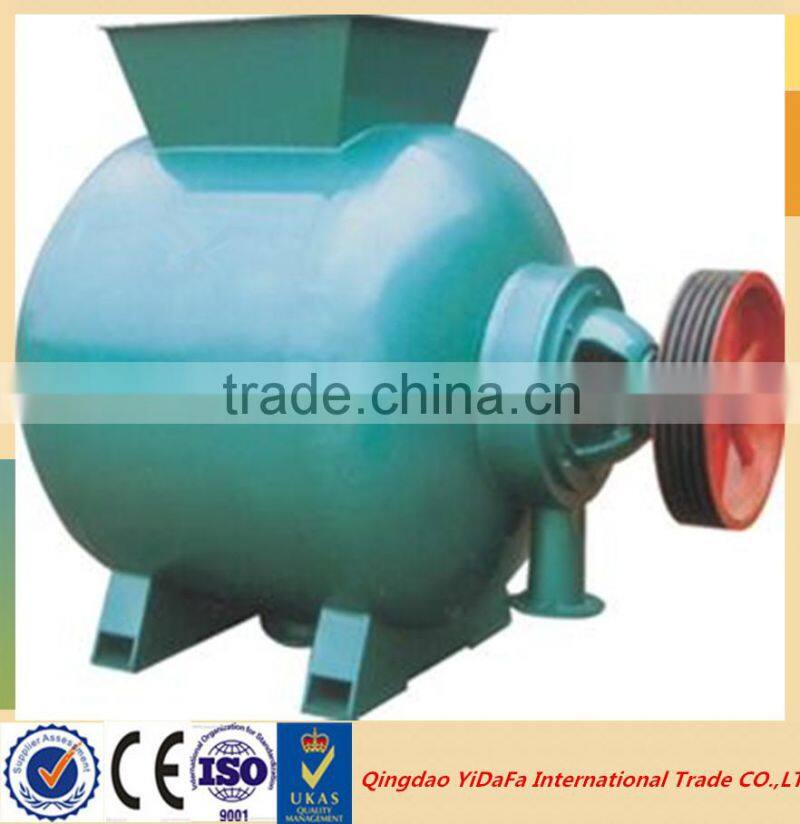

ZSW type horizontal hydrapulper machine
Application and feature:
This machine is used for pulping chemical pulp, semi-chemical pulp, board pulp , broken paper continuously or intermittently. Which has the advantages, such as convenient operation and maintenance, high speed, good pulping effect, low investment cost.It is the ideal pulping equipment. Its striking structure is the cutter, P.S,which can be adjusted between the rotor and sieve plate.
Main parameter:
Model | ZSW1 | ZSW2.5 | ZSW5 | ZSW10 | ZSW20 | ZSW25 | ZSW30 |
Volume m3 | 1 | 2.5 | 5 | 10 | 20 | 25 | 30 |
Capacity t/d | 10-15 | 20-25 | 35-45 | 70-85 | 100-130 | 130-160 | 160-200 |
Pulping consistency % | 3-5 | ||||||
Size mm | 2990×1920×1600 | 3800×2540×2000 | 4220×3180×2500 | 5000×3800×2700 | 6700×4650×3510 | 7150×4750×3750 | 7400×4880×4050 |
Sieve diameter mm | Ø 4- 20 | ||||||
Impeller diameter mm | Ø 450 | Ø 520 | Ø 680 | Ø 850 | Ø 1000 | Ø 1150 | Ø 1300 |
Impeller speed r/min | 452 | 450 | 444 | 400 | 336 | 280 | 250 |
Power KW | Y180L-4/22 | Y225M-6/37 | Y315S-6/75 | Y315L1-6/110 | Y355L3-6/250 | Y450-8/315 | Y450-8/355 |

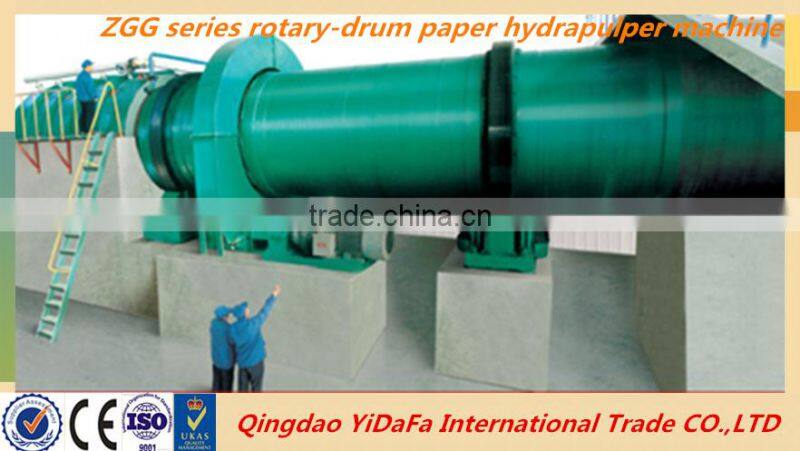

ZGG series rotary-drum hydrapulper machine(please click the picture and see the detailed information)

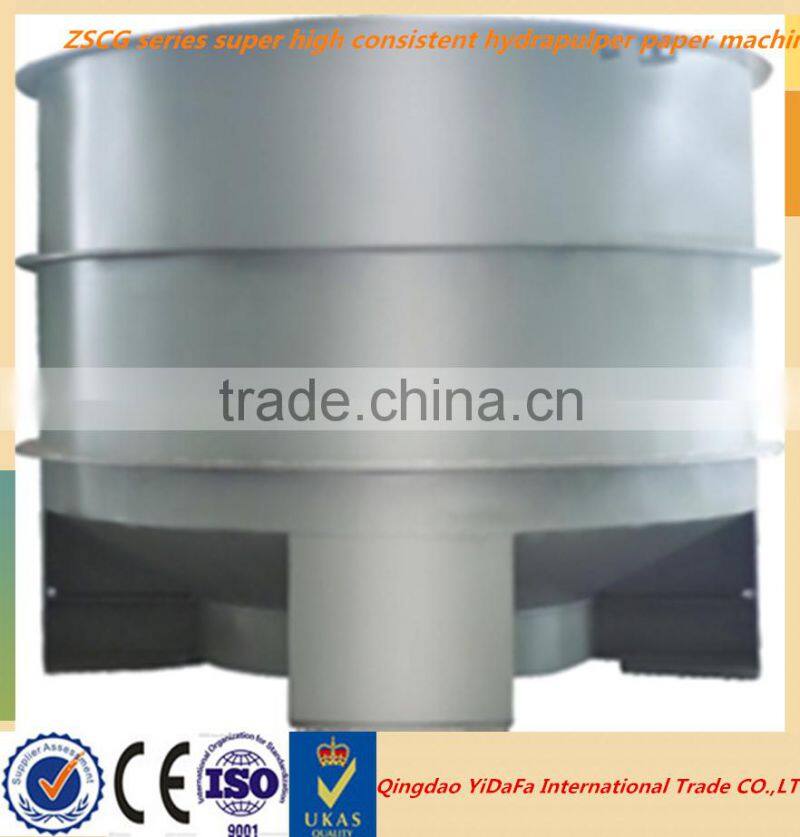

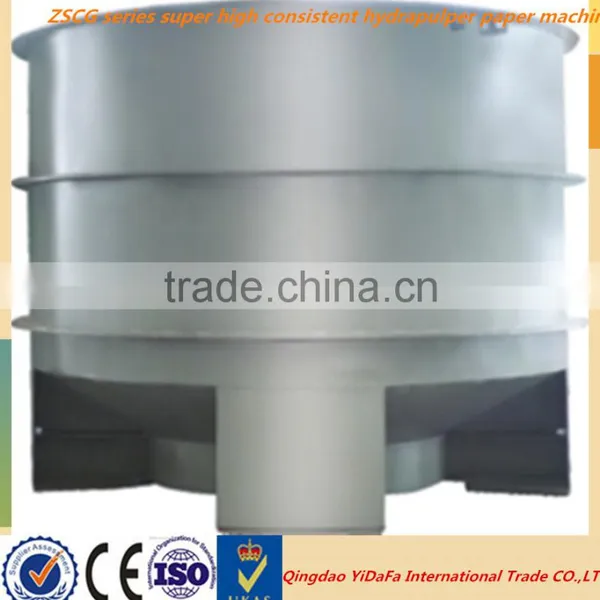

ZSCG series super high consistent hydrapulper machine (please click the picture and see the detailed information)

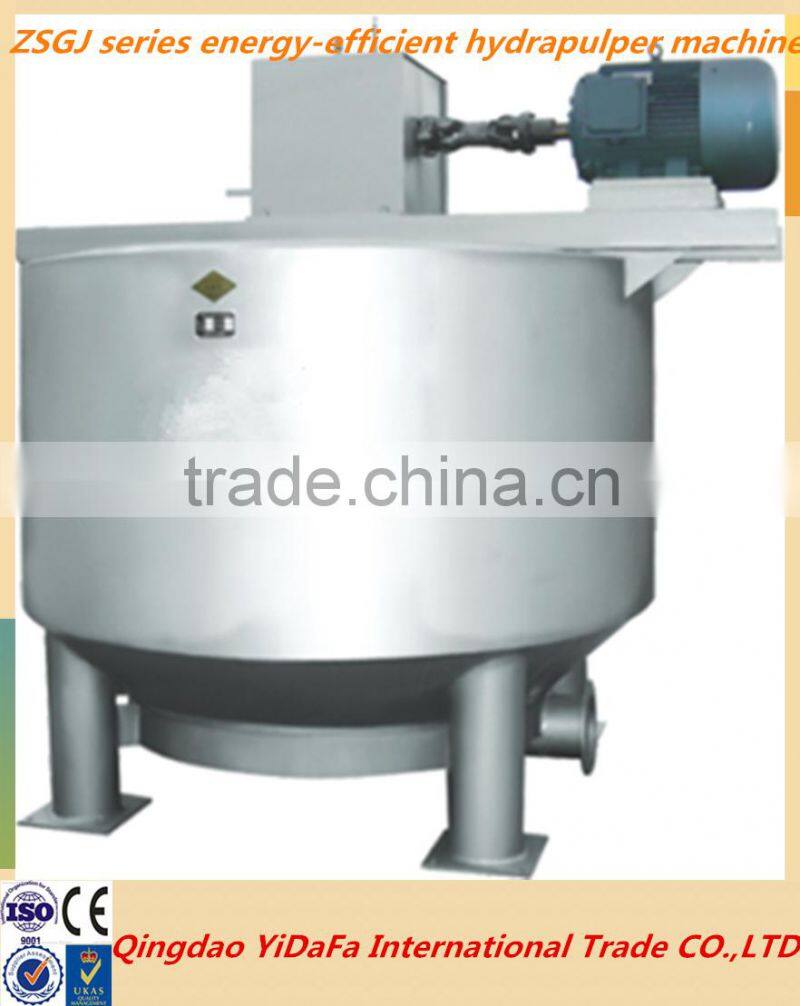

ZSGJ series energy-efficient hydrapulper machine in paper machine (please click the picture and see the detailed information)

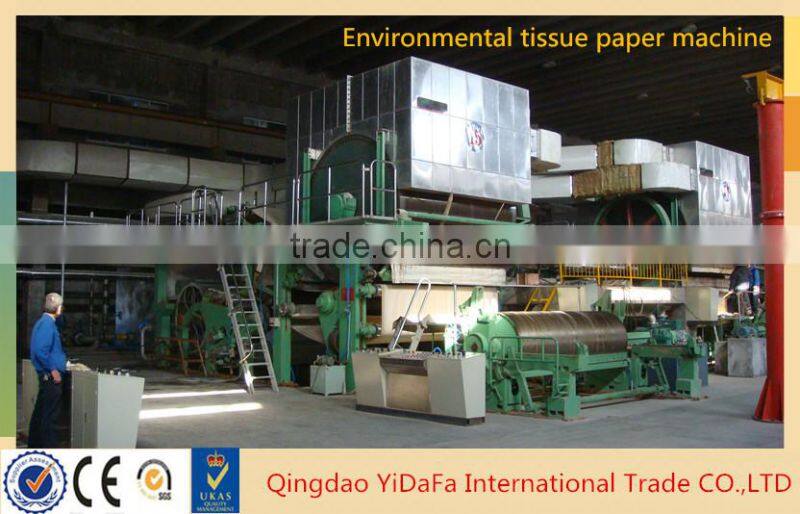

Environmental tissue/toilet paper machine (please click the picture and see the detailed information)

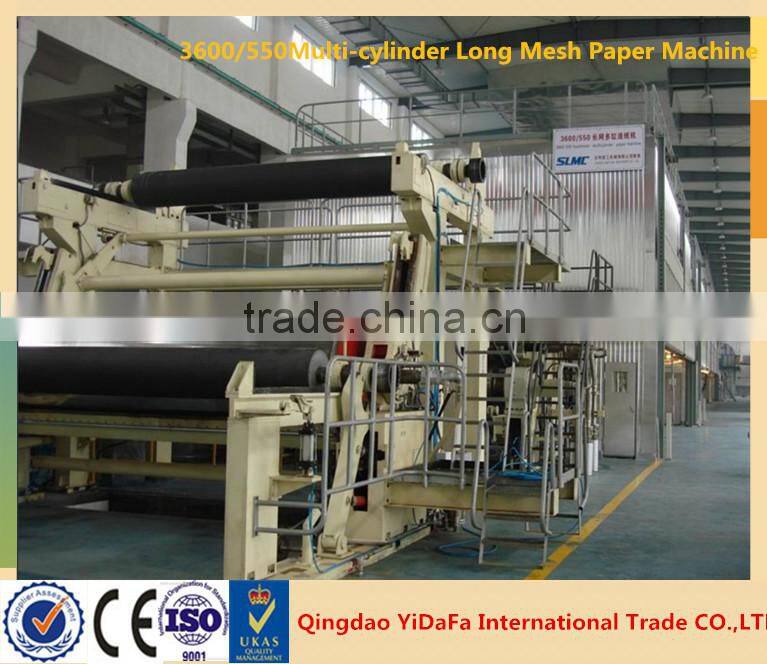

Multi-cylinder long mesh packaging paper machine(please click the picture and see the detailed information)

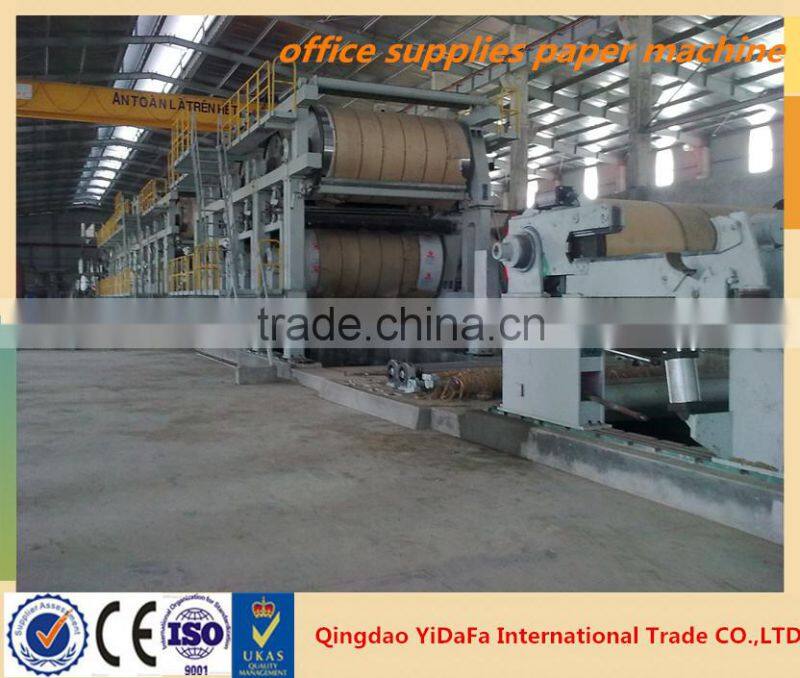

Office supplies paper machine(A4 paper machine)(please click the picture and see the detailed information)

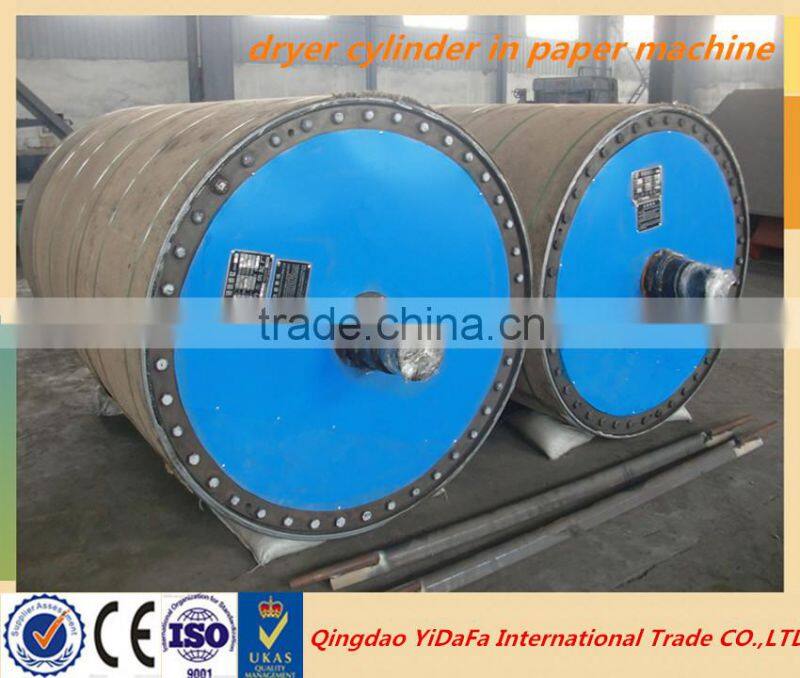

Dryer cylinder in paperr machine(please click the picture and see the detailed information)

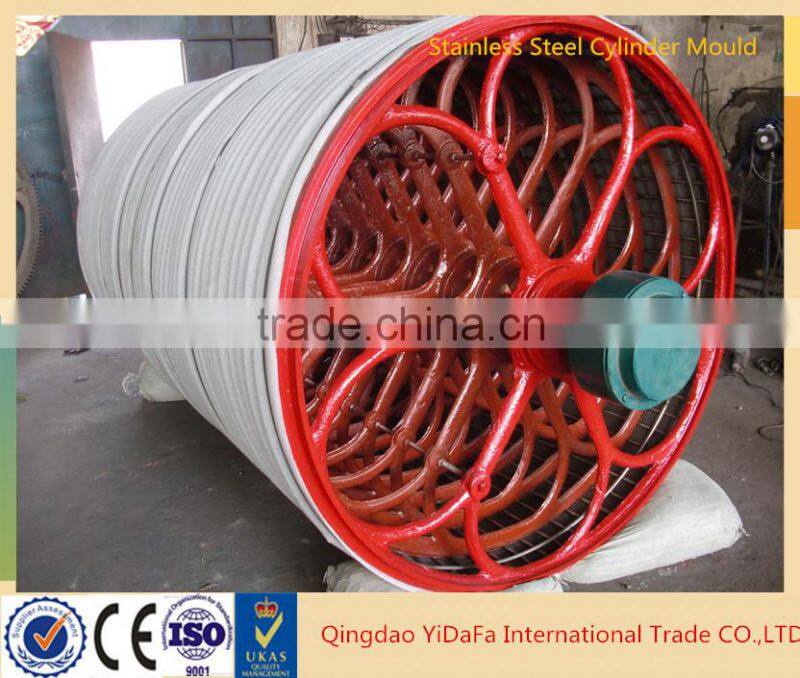

Stainless steel cylinder mould paper machine (please click the picture and see the detailed information)
1.The business contact on both sides will reply within 16 hours .
2.During warranty period, the company provide the relevant technical services for free,Such as equipment quality problem resulting from the design and manufacturing equipment, which the company will be responsible for replacement and maintenance.
3.After the expiration of the warranty, our company provide customers with a lifelong technical service and spare parts with preferential price and efficient manner over a long period of time.
Our company has several paper machine manufacturing enterprises and keeps a long-term and stable cooperation with the first-class large paper machinery manufacturers in the world.Our company can provide for global customers with tissue paper machine, office supplies paper machine, packaging paper machine, white board paper machine with different types,high quality,energy conservation and environmental protection and pulping equipment, paper processing equipment and various accessories, spare parts,consumables.
1.How to install and maintain the machine?
A: Firstly,we will provide the installation guild with the machine for your reference.
Secondly,our company is responsible for training production workers for you, ensuring that the workers will be independent operation.
2.How can we get the matching accessories or wearing parts conveniently?
A: During the warranty,Our company can replace the accessories for free .Out of warranty,we can provide them at the preferable price .In fact,the wearing parts are standard parts that you could get it in your country at your convenience.
Company Profile
Qingdao YiDaFa International Trade CO.,LTD is located in Free Trade Zone,Qingdao city, Shandong Province,China.Our company registered capital of 5 million yuan,has rich paper machine design and experience, and is the collection of paper making machinery research, design, manufacture, installation ,commissioning and service, becoming one of the multi-functional enterprise.Our company has several paper machine manufacturing enterprises and keeps a long-term and stable cooperation with the first-class large paper machinery manufacturers in the world.Our company can provide for global customers with tissue paper machine, office supplies paper machine, packaging paper machine, white board paper machine with different types,high quality,energy conservation and environmental protection and pulping equipment, paper processing equipment and various accessories, spare parts,consumables.
Our company strictly focus on the principle of "science and technology enterprise, best quality, supreme credit, business integrity " , providing high-quality products, preferential price with the best service and credibility to satisfy every customer's requirement.
Welcome all customers to contact us freely.We will work together to explore and establish a long-term, stable relationship, creating a brilliant future.
