Home > Products > pulping equipment machine > ZSG series high-consistency vertical hydrapulper machine in paper machine
ZSG series high-consistency vertical hydrapulper machine in paper machine
- 10 Set / Sets per Month
- QINGDAO
Product Details
Condition: | New | Type: | Pulping Equipment | Computerized: | Yes |
Place of Origin: | Shandong, China | Brand Name: | YIDAFA | Model Number: | ZSG |
Voltage: | 380v | Power(W): | 10-100kw/h | Dimension(L*W*H): | depends on model and configuration |
Weight: | 2-10t | Certification: | ISO9001 | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
wooden case/wooden pallet
Product Description

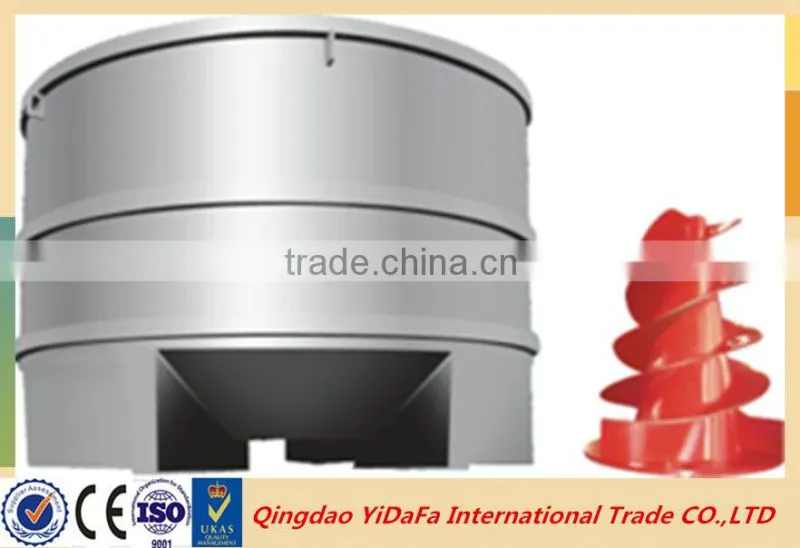

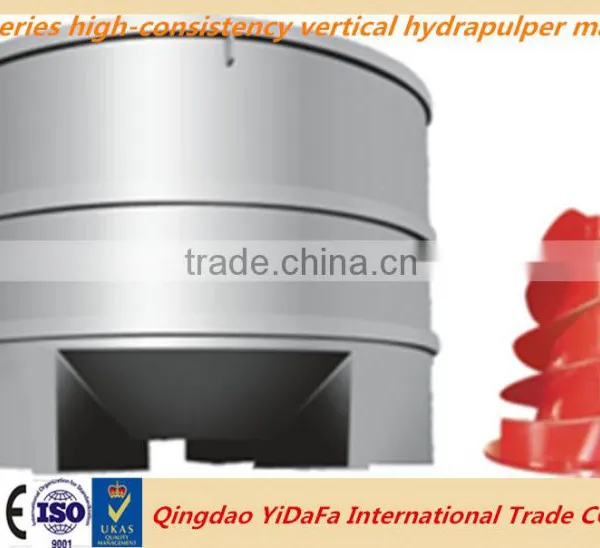

ZSG series high-consistency vertical hydrapulper machine
Application and feature:
This machine has long helical rotor blades, with a powerful shredding function , the pulp concentration to 14% above.It can produce powerful bottom-up and top-down pulp flow and the friction between the fibers. The quality of the pulp evenly, especially when used for deinking pulp in high concentration pulp fiber, under the action of the friction between the through the role of chemicals, can make the printing ink effectively from the fiber surface,which is key equipment in commodity wood pulp ,waste paper processing, deinking pulp.
Main parameter:
Model | ZSG1 | ZSG2 | ZSG3 | ZSG5 | ZSG8 | ZSG 10 | ZSG 15 | ZSG 20 | ZSG 30 | ZSG 40 | ZSG 50 |
Volume m3 | 1 | 2 | 3 | 5 | 8 | 10 | 15 | 20 | 30 | 40 | 50 |
Capacity t/d | 3-4 | 6-8 | 9-12 | 10-15 | 15-20 | 20-30 | 30-50 | 40-60 | 50-70 | 60-80 | 70-100 |
Pulp consistency % | 12±2 | ||||||||||
Tank diameter mm | Ø 1300 | Ø 1600 | Ø 1800 | Ø 2200 | Ø 2500 | Ø 2800 | Ø 3400 | Ø 3600 | Ø4000 | Ø4500 | Ø5000 |
Impeller diameter mm | Ø 440 | Ø 520 | Ø 680 | Ø 720 | Ø 820 | Ø 880 | Ø 1040 | Ø 1120 | Ø1360 | Ø1580 | Ø1790 |
Impeller speed r/min | 420 | 360 | 340 | 320 | 280 | 260 | 240 | 220 | 210 | 200 | 180 |
Pulp diameter mm | Ø100 | Ø 150 | Ø 200 | Ø 200 | Ø 250 | Ø 250 | Ø 300 | Ø 300 | Ø325 | Ø375 | Ø425 |
Dilution mouth mm | Ø 50 | Ø 80 | Ø 80 | Ø 80 | Ø 100 | Ø 125 | Ø 150 | Ø 159 | Ø250 | Ø325 | Ø375 |
Power KW | Y200L -4/22 | Y250M -6/37 | Y280M -6/55 | Y315S -6/75 | Y315L2 -6/110 | Y315L2 -6/132 | Y355M -6/160 | Y355M -6/250 | -8/315 | -8/400 | -8/500 |

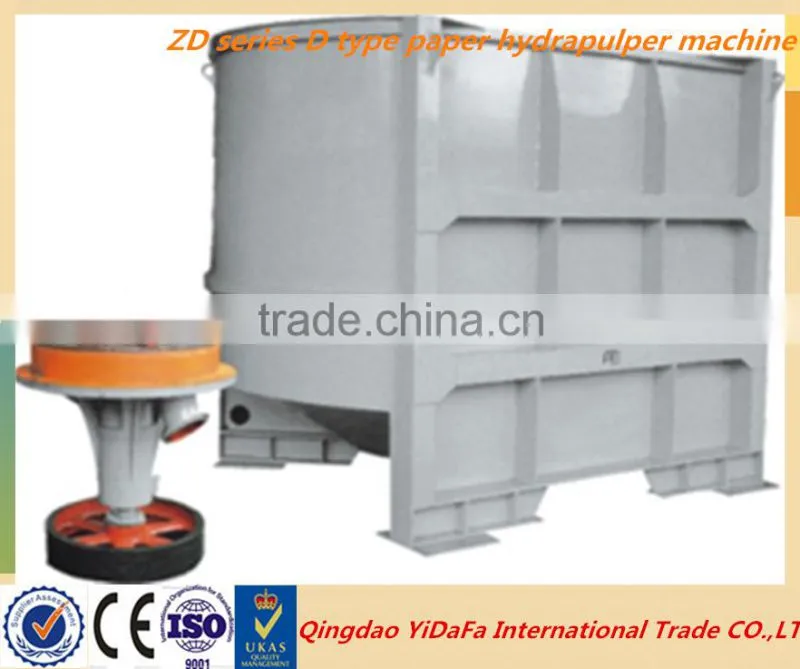

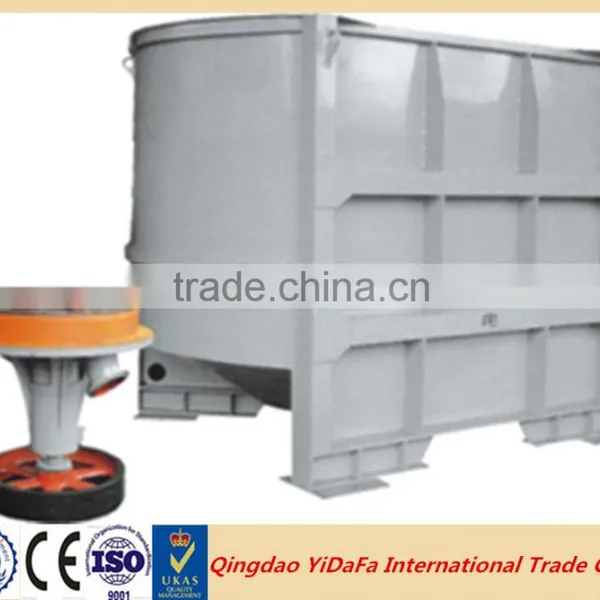

ZD series D type hydrapulper machine in paper machine (please click the picture and see the detailed information)
ZSCG series super high consistent hydrapulper machine (please click the picture and see the detailed information)
ZSGJ series energy-efficient hydrapulper machine in paper machine (please click the picture and see the detailed information)
ZSW2 adjustable double-circuit hydrapulper machine in paper machine (please click the picture and see the detailed information)
ZSW type horizontal hydrapulper machine in paper machine (please click the picture and see the detailed information)
Environmental tissue/toilet paper machine (please click the picture and see the detailed information)
Multi-cylinder long mesh packaging paper machine(please click the picture and see the detailed information)
Office supplies paper machine(A4 paper machine)(please click the picture and see the detailed information)
1.During warranty period, the company provide the relevant technical services for free,Such as equipment quality problem resulting from the design and manufacturing equipment, which the company will be responsible for replacement and maintenance.
Our company has several paper machine manufacturing enterprises and keeps a long-term and stable cooperation with the first-class large paper machinery manufacturers in the world.Our company can provide for global customers with tissue paper machine, office supplies paper machine, packaging paper machine, white board paper machine and pulping equipment, paper processing equipment and spare parts.
workshop
Company Profile
Qingdao YiDaFa International Trade CO.,LTD is located in Free Trade Zone,Qingdao city, Shandong Province,China.Our company registered capital of 5 million yuan,has rich paper machine design and experience, and is the collection of paper making machinery research, design, manufacture, installation ,commissioning and service, becoming one of the multi-functional enterprise.Our company has several paper machine manufacturing enterprises and keeps a long-term and stable cooperation with the first-class large paper machinery manufacturers in the world.Our company can provide for global customers with tissue paper machine, office supplies paper machine, packaging paper machine, white board paper machine with different types,high quality,energy conservation and environmental protection and pulping equipment, paper processing equipment and various accessories, spare parts,consumables.
Our company strictly focus on the principle of "science and technology enterprise, best quality, supreme credit, business integrity " , providing high-quality products, preferential price with the best service and credibility to satisfy every customer's requirement.
Welcome all customers to contact us freely.We will work together to explore and establish a long-term, stable relationship, creating a brilliant future.
