Specifications
water turbine generator:1.Power:630KW
2.Head:37m
3.Flow:2.2 cu.m/s
4.Voltage:6300V
Water Turbine Generator:
125KW-6300KW Horizontal Water Turbine Generator
Francis turbine is a relative advanced unit for developing hydropower stations with medium and high water head. Francis turbine made by Hi-Sea Marine, with convenient maintenance, small size, light weight, high hydraulic efficiency are widedly used in hydropower stations. After several years' research, accumulation and absorbing domestic and foreign advanced technology, we have improved our design and manufacture level to meet the need of hydropower stations with different water power resources.
Various kinds of francis turbines can be provided covering a water head from 10m to 150m, runner diameter 0.5m to 1m and capacity 125kw to 6300kw. High quality and competitive price can be promised.
This is technical parameters of 630kw horizontal francis turbine generator with runner diameter 0.5m
| Hydraulic Turbine |
Turbine Generator |
Valve |
|||||
| Design Head(m) |
Design Flow(m3/s) |
Output(KW) |
Speed(r/min) |
Power(KW) |
Voltage(V) |
Efficiency(%) |
Model |
| 37 |
2.20 |
670 |
1000 |
630 |
6300 |
93 |
Φ800 Butterfly Valve |
| 40 |
2.10 |
695 |
1000 |
630 |
6300 |
93 |
Φ800 Butterfly Valve |
| 42 |
1.90 |
683 |
1000 |
630 |
6300 |
93 |
Φ800 Butterfly Valve |
| 45 |
1.79 |
688 |
1000 |
630 |
6300 |
93 |
Φ800 Butterfly Valve |
| 54 |
1.53 |
685 |
1000 |
630 |
6300 |
93 |
Φ600 Butterfly Valve |
| 57 |
1.40 |
676 |
1000 |
630 |
400 |
93 |
Φ600 Butterfly Valve |
| 65 |
1.25 |
690 |
1000 |
630 |
400 |
94 |
Φ600 Butterfly Valve |
| 66 |
1.22 |
677 |
1000 |
630 |
6300 |
93 |
Φ500 Butterfly Valve |
| 96 |
0.83 |
680 |
1000 |
630 |
400 |
93 |
Φ500 Butterfly Valve |

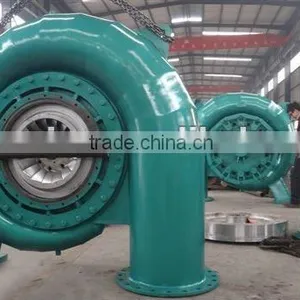

800kw horizontal francis turbine

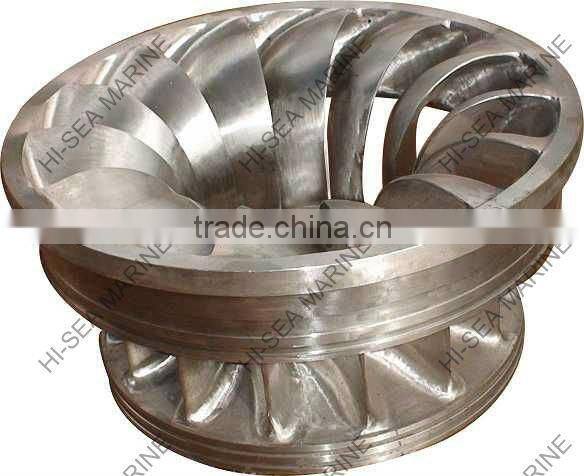

francis turbine runner
