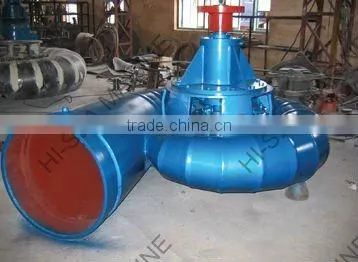

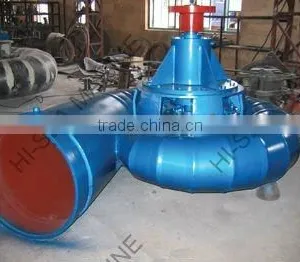

Vertical Francis Water Turbine

Specifications

water turbine:
1.Power: 800~30000KW
2.Head: 25~200m
3.Runner Diameter: 1m, 1.6m
4.Frequency: 50Hz, 60Hz

Water Turbine:

Vertical Francis Water Turbine



Francis turbine is a relative advanced unit for developing hydropower stations with medium and high water head. Francis turbines made by Hi-Sea Marine, with convenient maintenance, small size, light weight, high hydraulic efficiency, are widely used in hydropower stations. After several years' research, we have improved our design and manufacture level to meet the need of hydrowpower stations with different water power resources.



Different kinds of vertical francis turbine can be provided covering a water head from 25 to 200m, runner diameter from 1 to 1.6m and capacity from 800 to 30000KW.



This is technical parameters of 2500kw vertical francis turbine with runner diameter 1m

Hydraulic Turbine				Turbine Generator			Valve
Design Head(m)	Design Flow(m3/s)	Output(KW)	Speed(r/min)	Power(KW)	Voltage(V)	Efficiency(%)	Model
40	7.60	2620	500	2500	6300	95	Φ1600 Butterfly Valve
45	6.98	2678	500	2500	6300	95	Φ1400 Butterfly Valve
52	5.99	2625	500	2500	6300	95	Φ1400 Butterfly Valve
56	5.41	2615	500	2500	6300	95	Φ1400 Butterfly Valve
64	4.96	2678	600	2500	6300	95	Φ1200 Butterfly Valve



This is technical parameters of 3200kw vertical francis turbine with runner diameter 1m

Hydraulic Turbine				Turbine Generator			Valve
Design Head(m)	Design Flow(m3/s)	Output(KW)	Speed(r/min)	Power(KW)	Voltage(V)	Efficiency(%)	Model
47	8.16	3272	600	3200	6300	95	Φ1600 Butterfly Valve
51	7.15	3326	600	3200	6300	95	Φ1400 Butterfly Valve
64	6.24	3368	600	3200	6300	95	Φ1400 Butterfly Valve
75	5.33	3372	600	3200	6300	95	Φ1200 Butterfly Valve

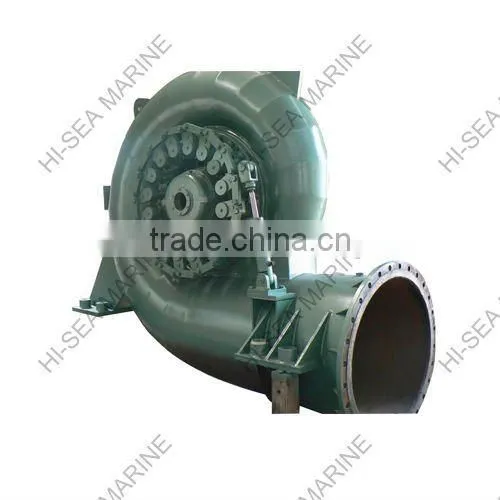

3200kw vertical francis turbine

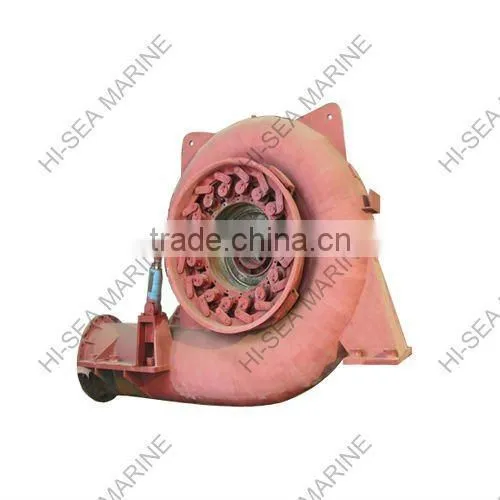

2500kw vertical francis turbine

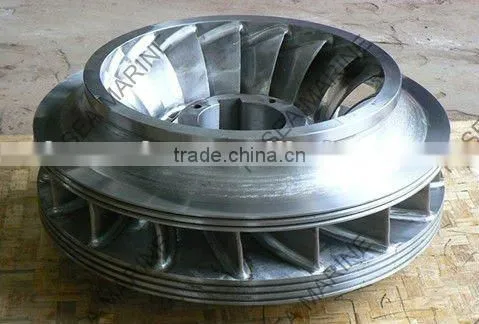

turbine runner
