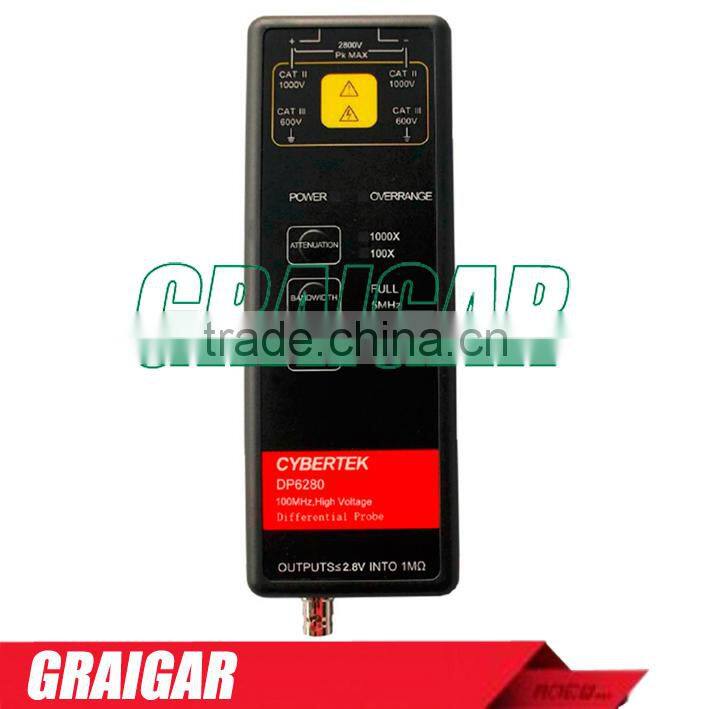

High Voltage Differential Oscilloscope Probe DP6280(2800V/100MHz)
- 1000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Graigar | Model Number: | dp6280 |
Product Description
Summary
DP6000 Series High Voltage Differential Probes for measurement of high-voltage differential signal, to meet the demand for floating measurements.This series has a very high bandwidth to meet the needs of the majority of the test system;This series has a rich range.Differential measurement voltage range can meet most of the requirements of the test circuit;Electronic touch buttons, making longer life ;With a 5MHz bandwidth throttling selection function,5MHz frequency bandwidth to meet most switching power FETs switching frequency measurement,And can filter out higher frequency noise and interference;With sound and light alarm,Manually turn off the sound alarm function is more user-friendly design;Probe is equipped with a standard BNC output connector,Can be used with any manufacturer's oscilloscopes(the input impedance of the oscilloscope setting to 1MΩ).Probes have good common mode noise rejection capability;Have a high input impedance and low input capacitance; Accurately measure differential voltage signals at high speed.
Application
Floating voltage measurement
Inverter/ transformer design
Switching Power Supply Design
Solder , plating power supplies
Motor drive design
Electronic ballast design
CRT monitor designe
UPS & ATX power supply
Power Electronics and Power Drives
LED lighting design
Name | DP6280 | |||||
Bandwidth (-3dB) | DC to 100MHz | |||||
Rise time | ≤3.5ns | |||||
Accuracy | ±2% | |||||
Attenuation | 100X/1000X | |||||
Maximum measurable | 100X | 280V | ||||
1000X | 2800V | |||||
Maximum input |
600V CATIII | |||||
Input resistance | Each input | 4MΩ | ||||
Between inputs | 8MΩ | |||||
Input capacitance | Each input | <4pF | ||||
Between inputs | <2pF | |||||
CMRR | DC | >80dB | ||||
100KHz | >60dB | |||||
1MHz | >50dB | |||||
Noise(Vrms) | 100X | <0.5mV | ||||
1000X | <0.3mV | |||||
Propagation delay | 15ns±1ns | |||||
Bandwidth limit filters (5MHz) | ≥-3dB@5MHz | |||||
Differential overvoltage | 100X | ≥160V | ||||
1000X | ≥1600V | |||||
Output termination | 1MΩ | |||||
Rated power input | USB 5V/1A |
