API 7K Oil/Gas Drilling Rig Mud Pump
Features of API 7K Oil/Gas Drilling Rig Mud Pump:
- API Spec 7K;
- Long stroke enables operation under low speed to lengthen the use of vulnerable parts at the fluid end;
- Forced lubrication combined with splash lubrication to ensure effective lubrication;
- Durable advanced structure ensuring smooth operation and meeting the special requirements of customers during drilling medium deep wells;
- Compact and safe with interchangeable suction valves and discharge valves;
- Interchangeability between main components of hydraulic cylinders and fluid ends on each pump;
- Durable fluid end greatly improves the performance of triplex mud pump;
- Independent structure making examinations and maintenances convenient;
Specifications of Mud Pump:
Model |
KLF-500 |
KLF-800 |
KLF-1000 |
KLF-1300 |
KLF-1600 |
Max. output power HP(KW) |
500 (373) |
800 (597) |
1000 (746) |
1300 (969) |
1600 (1193) |
Rated speed (spm) |
165 |
150 |
140 |
120 |
120 |
Max. ID of cylinder liner in. (mm) |
6 3/4 (171) |
6 3/4 (171) |
6 3/4 (171) |
7 (177.8) |
7(177.8) |
Stroke in. (mm) |
7 1/2 (191) |
9 (229) |
10 (254) |
12 (304.8) |
12 (304.8) |
Test hydraulic pressure of hydraulic cylinder psi (Kg/cm2) |
7500 (527) |
7500 (527) |
7500 (527) |
7500 (527) |
7500(527) |
Gear ratio |
4.38:1 |
4.31:1 |
4.32:1 |
4.31:1 |
4.3:1 |
Dia. of suction pipe (in.) |
8 |
10 |
12 |
12 |
12 |
Dia. of discharge pipe (in.) |
4 |
5 |
5 |
5 |
5 |
Specifications of valves |
API 5 |
API 6 |
API 6 |
API 7 |
API 7 |
Weight (excl. belt wheel) lb (Kg) |
19,900 (9,027) |
26.603 (12,067) |
33,770 (15,318) |
45,650 (20,707) |
46,820 (21,238) |
Pictures of Mud Pump:

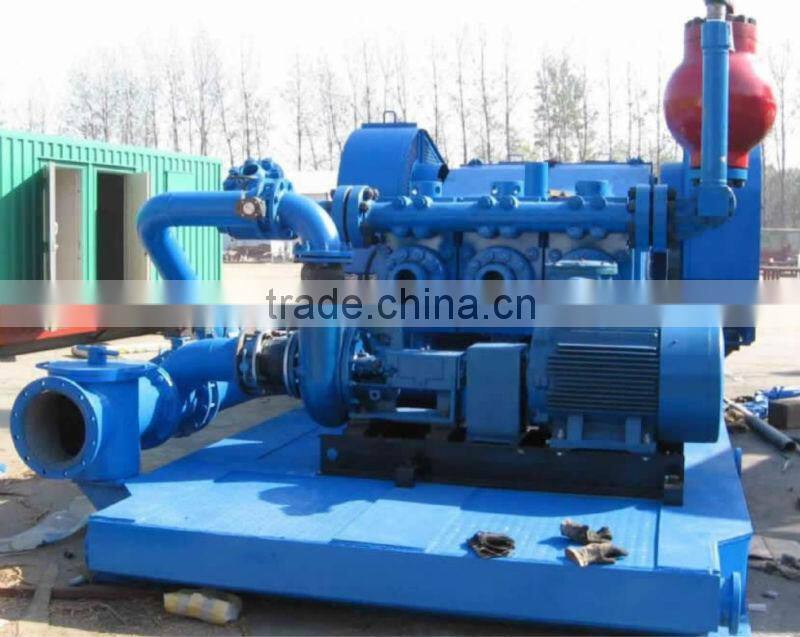

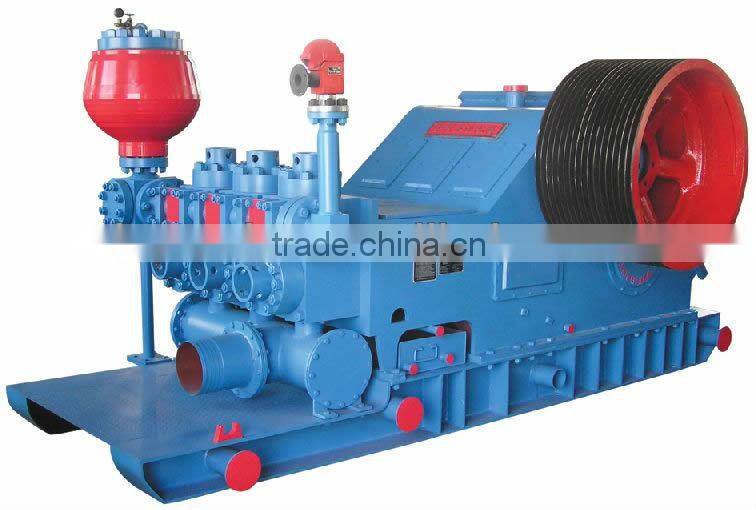

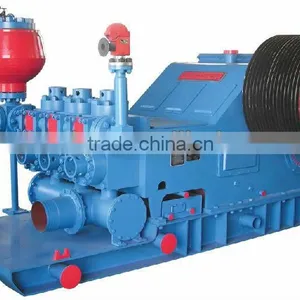

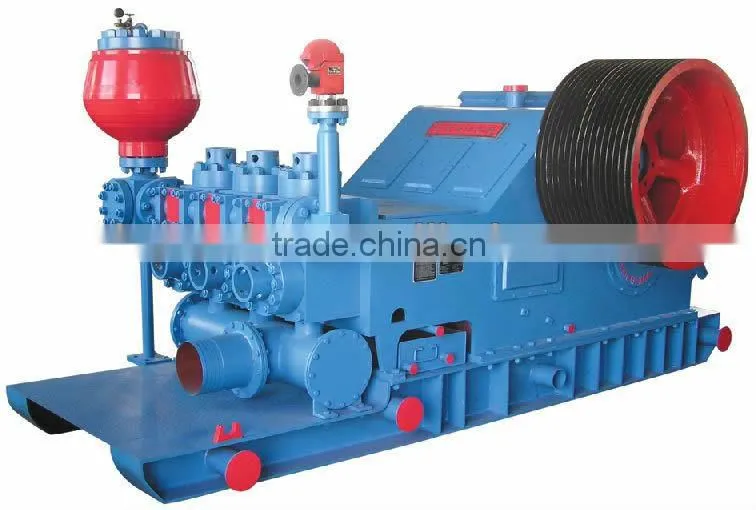

API 7K Oil/Gas Drilling Rig Mud Pump

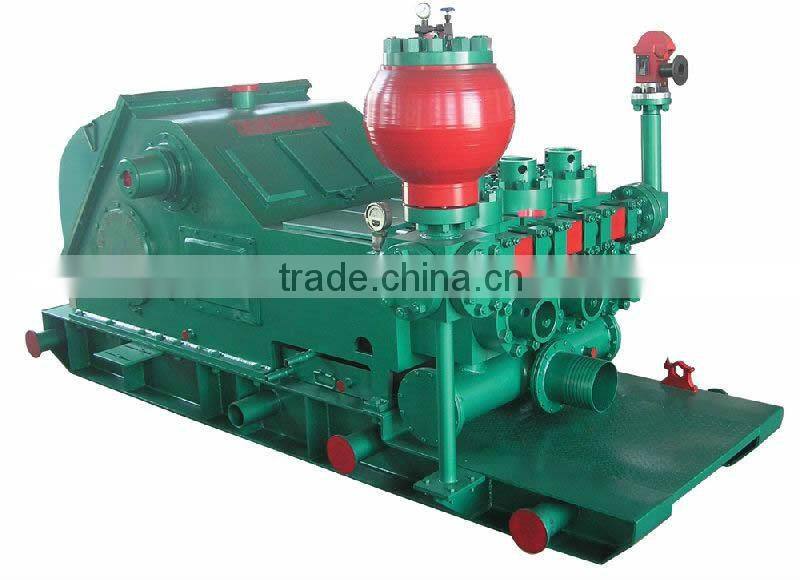

API 7K Oil/Gas Drilling Rig Mud Pump

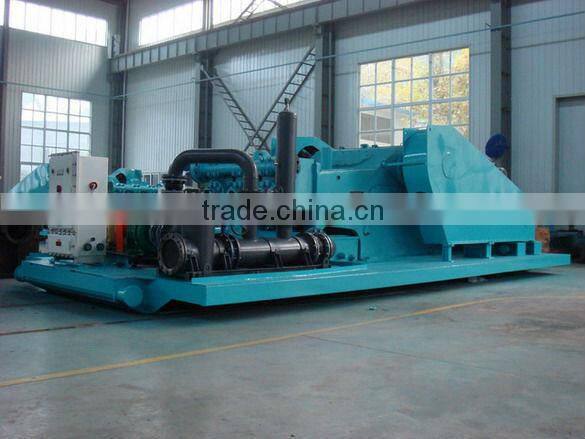

API 7K Oil/Gas Drilling Rig Mud Pump in Workshop
API 7K Oil/Gas Drilling Rig Mud Pump on Site

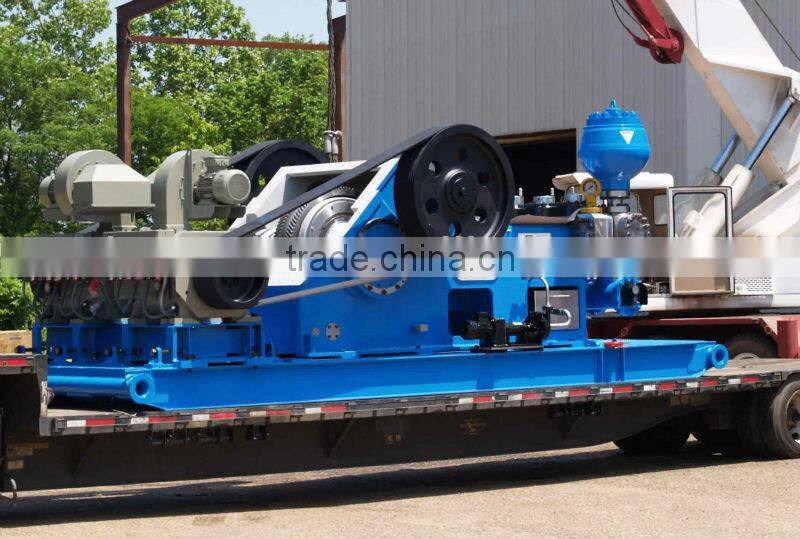

API 7K Oil/Gas Drilling Rig Mud Pump to Be Shipped
(For further and more detailed product information, you are welcome to contact us at any time in any way or visit .)
-----------
