API 7K Oil/Gas Drilling Rig Rotary Table
Features of API 7K Oil/Gas Drilling Rig Rotary Table:
API Spec 7K standard;
Authorized to use the official API monogram;
Alloy steel gear and pinion;
Split type main bushing is a steel casting;
Kelly drive or pin drive option;
Pin drive may be available in roller type bushing of API standard kelly or hexagonal kelly;
Either long or short slips are usable;
Matched with API standard casing bushing and special lift fitting;
Sufficient lubrication and reliable sealing;
Specifications of API 7K Oil/Gas Drilling Rig Rotary Table:
Model |
ZP175 |
ZP205 |
ZP275 |
ZP375 |
ZP495 |
Dia. of through hole mm (in.) |
444.5 (17 1/2) |
520.7 (20 1/2) |
698.5 (27 1/2) |
952.5 (37 1/2) |
1257.3 (49 1/2) |
Center distance mm (in.) |
1118 (44) |
1353 (53 1/4 ) |
1353 (53 1/4) |
1353 (53 1/4 ) |
1651 (65) |
Max. static hook load KN |
1350 |
3150 |
4500 |
5850 |
7200 |
Max. working torque NM |
14000 |
23000 |
28000 |
33000 |
37000 |
Max. rotary speed r/min. |
300 |
350 |
250 |
300 |
300 |
Gear ratio |
3.58 |
3.22 |
3.67 |
3.56 |
3.93 |
Dimensions (L × W × H) mm |
1935×1280×585 |
2292×1475×668 |
2392×1670×685 |
2468×1810×718 |
2940×2184×813 |
Pictures of API 7K Oil/Gas Drilling Rig Rotary Table:

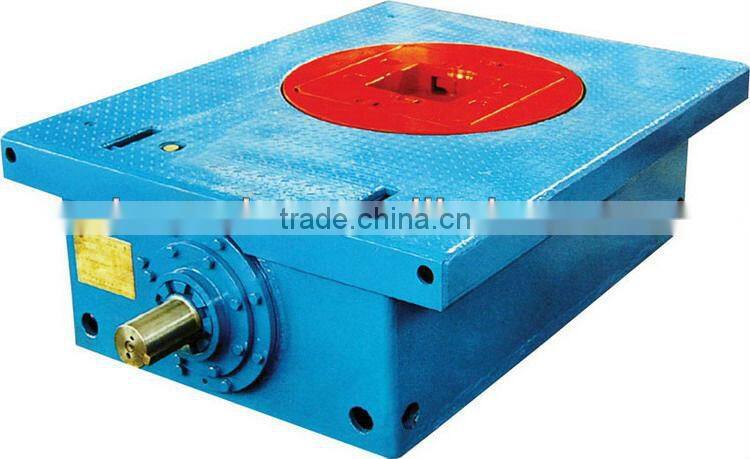

API 7K Oil/Gas Drilling Rig Rotary Table

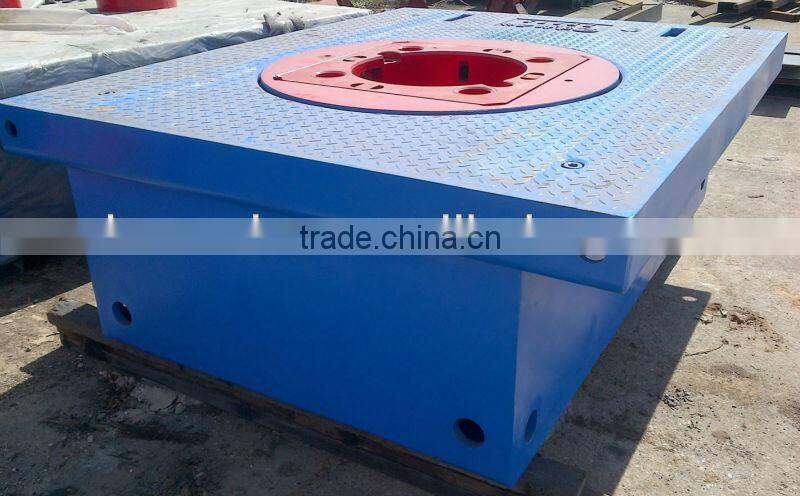

API 7K Oil/Gas Drilling Rig Rotary Table on Site

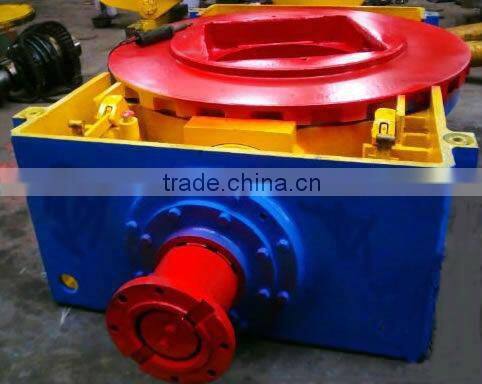

API 7K Oil/Gas Drilling Rig Rotary Table in Workshop

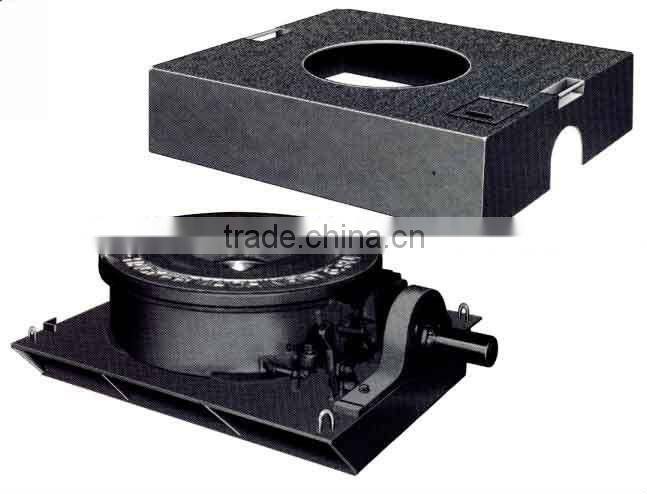

API 7K Oil/Gas Drilling Rig Rotary Table Disassembled

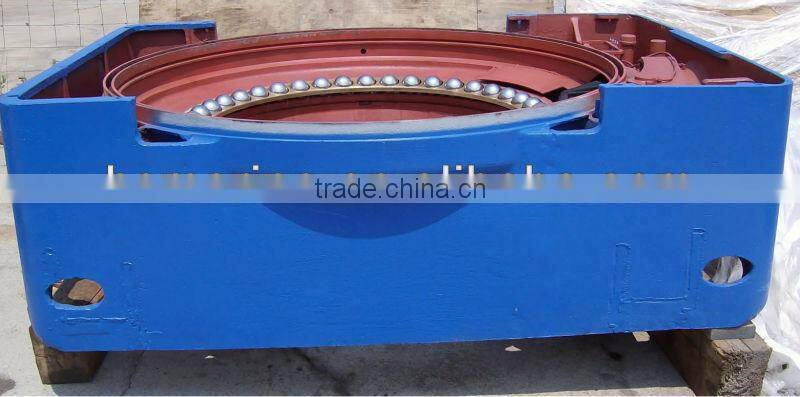

API 7K Oil/Gas Drilling Rig Rotary Table - Part
(For further and more detailed product information, you are welcome to contact us at any time in any way or visit .)
-----------
Contact:
Aiphen ZHANG (Sales Manager)
Chongqing Hi-Sea Marine Equipment Import & Export Co., Ltd.
Add.: Unit 20-5, Building of Chongqing General Chamber of Commerce, No. 2, Hongjin Street, Yubei District, Chongqing 401147, China
Tel.: +86-23-67500186 (Direct Line) Fax: +86-23-67955123 Mobile: +86-13983873943 Skype: Aiphen
