Oilfield Rig Oil/Gas API 8C Hook
Features of Oilfield Rig Oil/Gas API 8C Hook:
- API Spec 8C standard
- Authorized to use the official API monogram
- Hydraulic bumper equipped to protect drill pipe joint during breakout
- Reliable safeguard locking device equipped on the mouth of the hook
- Major load-bearing parts subject to nondestructive inspection
Specifications of Oilfield Rig Oil/Gas API 8C Hook:
Model |
DG90 |
DG135 |
DG170 |
DG225 |
DG315 |
DG450 |
DG585 |
Max. hook load (KN) |
900 |
1350 |
1700 |
2250 |
3150 |
4500 |
5850 |
Opening size of main hooks (mm /in) |
155/6 1/16 |
165/6 1/8 |
180/7 |
190/7 1/8 |
220/8 5/8 |
220/8 5/8 |
238/9 3/8 |
Dia. of main hooks (mm/in) |
116/4 1/2 |
140/5 1/2 |
150/6 |
160/6 1/4 |
180/7 |
180/7 |
180/7 |
Dia. of auxiliary hooks (mm/in) |
80/3 1/8 |
90/3 1/2 |
90/3 1/2 |
100/4 |
120/4 3/4 |
120/4 3/4 |
120/4 3/4 |
Spring trip (mm /in) |
180/7 |
180/7 |
180/7 |
180/7 |
200/8 |
200/8 |
200/8 |
Dimensions L×W ×H (mm) |
2000×680×600 |
2200×720×616 |
2450×750×630 |
2545×780×750 |
2953×890×830 |
2950×890×880 |
3156×930×930 |
Weight (kg) |
1800 |
1910 |
2020 |
2180 |
3410 |
3496 |
3900 |
Pictures of Oilfield Rig Oil/Gas API 8C Hook:

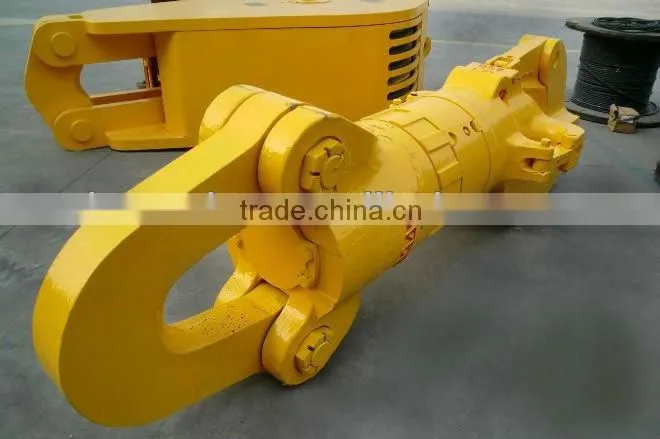

Oilfield Rig Oil/Gas API 8C Hook

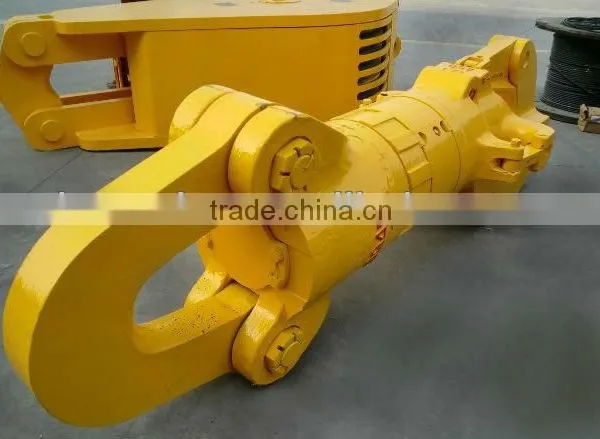

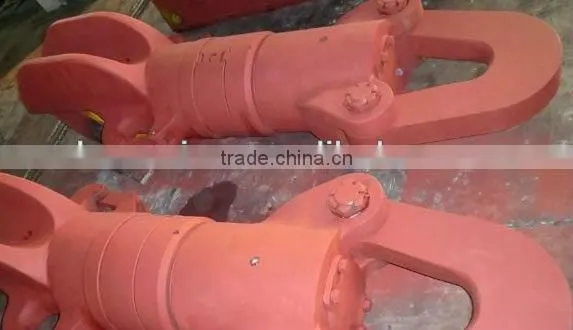

Oilfield Rig Oil/Gas API 8C Hook in Workshop
Oilfield Rig Oil/Gas API 8C Hook on Site
(For further and more detailed product information, you are welcome to contact us at any time in any way or visit .)
-----------
