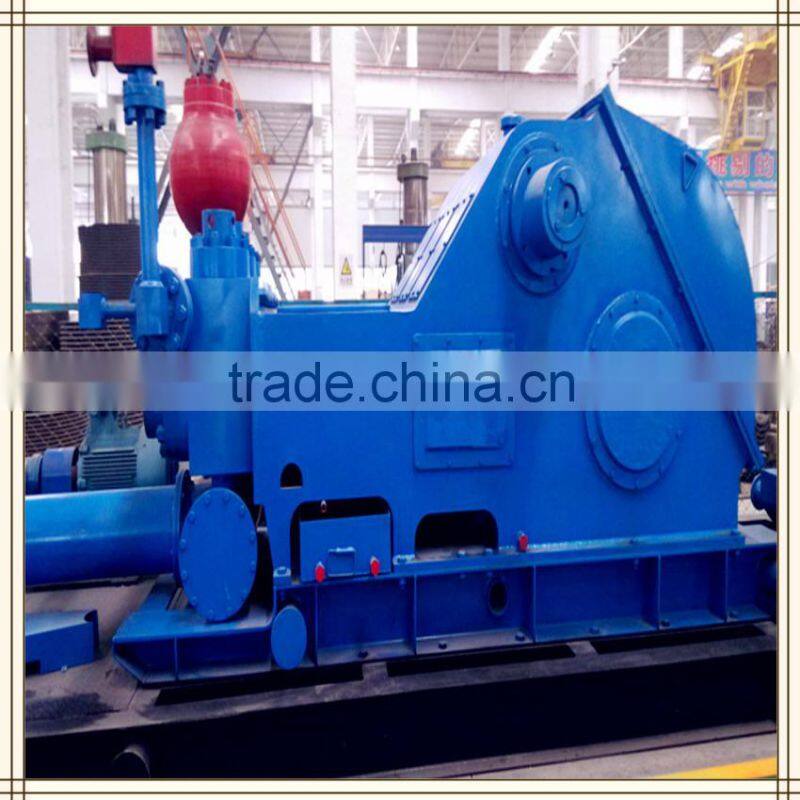

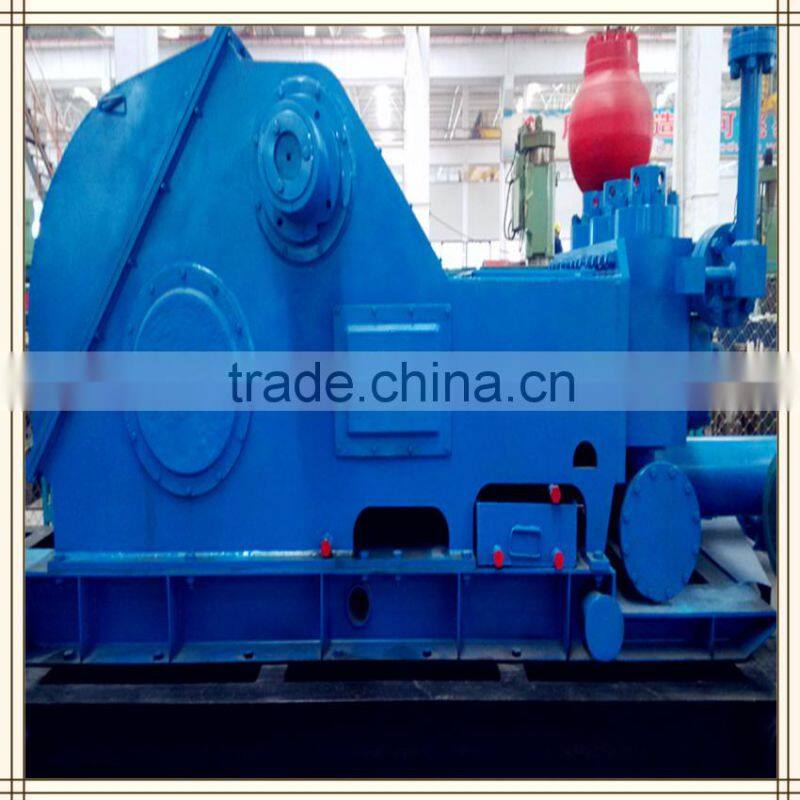

Help Center5% Discount!!!API 3NB Series Mud Pump For Oil Drilling Rig ,Oil Well Drilling Triplex Mud Pump
Related Products
-
5% Discount!!!API F SeriesTriplex Mud Pump For Oil Drilling Rig ,Oil Well Drilling Mud Pump(F-500/800/1000/1300/1600/2200)NegotiableMOQ: 1 Set -
China Supplier!! F Series,3NB Series and EMSCO Series Mud Pump Spare PartsUS$ 10 - 200MOQ: 1 Piece
-
3ZB-670 Plunger Mud PumpUS$ 20,000 - 100,000MOQ: 1 Piece
-
Plunger PumpUS$ 20,000 - 100,000MOQ: 1 Piece
-
API Standard PZ Series Drilling Mud Pump With High Quality for Drilling RigUS$ 10,000 - 300,000MOQ: 1 Set
Main features :
1. This series mud pumps are strictly manufactured according to SY5138 standard of CNPC and are tested accordingly when leave factory.
2. Reliable to lubricate and promote the service life of power end.
The main technical performance and specification :
Model |
3NB-350 |
3NB-500 |
3NB-600 |
3NB-800 |
Type |
Triplex |
Triplex |
Triplex |
Triplex |
Input Power |
257kw/350HP |
368kw/500HP |
441kw/500HP |
588kw/800HP |
Rated Speed |
130 |
120 |
135 |
130 |
Stroke(mm) |
180 |
180 |
196 |
274 |
Max.Liner Dia.(mm) |
160 |
170 |
180 |
180 |
Suction Inlet(mm) |
203 |
200 |
200 |
254 |
Discharge Inlet(mm) |
76 |
83 |
101 |
101 |
Gear Ration |
4.483 |
4.696 |
4.696 |
3.482 |
Drive Shaft Speed |
582.8 |
563.52 |
633.96 |
435.25 |
Overall Size(mm3) |
3600*2080*2015 |
3600*2280*2080 |
3900*2285*2085 |
4600*2155*2052 |
Weight(kg) |
8058 |
9484 |
11000 |
17200 |
Model |
3NB-1000 |
3NB-1300 |
3NB-1600 |
3NB-2200 |
Type |
Triplex |
Triplex |
Triplex |
Triplex |
Input Power |
735kw/1000HP |
955kw/1300HP |
1176kw/1600HP |
1640kw/2200HP |
Rated Speed |
125 |
120 |
120 |
105 |
Stroke(mm) |
274 |
305 |
305 |
356 |
Max.Liner Dia.(mm) |
180 |
190 |
190 |
230 |
Suction Inlet(mm) |
254 |
305 |
305 |
305 |
Discharge Inlet(mm) |
101 |
101 |
101 |
130 |
Gear Ration |
3.482 |
3.657 |
3.657 |
3.152 |
Drive Shaft Speed |
435.25 |
438.84 |
438.84 |
369 |
Overall Size(mm3) |
4600*2155*2052 |
5250*2450*2625 |
4720*2822*2660 |
6000*2950*3250 |
Weight(kg) |
18000 |
23000 |
27100 |
38800 |
Packaging: standard export package or as consumer’s request
Shipping: air transportation, water way transportation, railway transportation, road transportation
1. Reply with 24 hours
2. Specialist online service

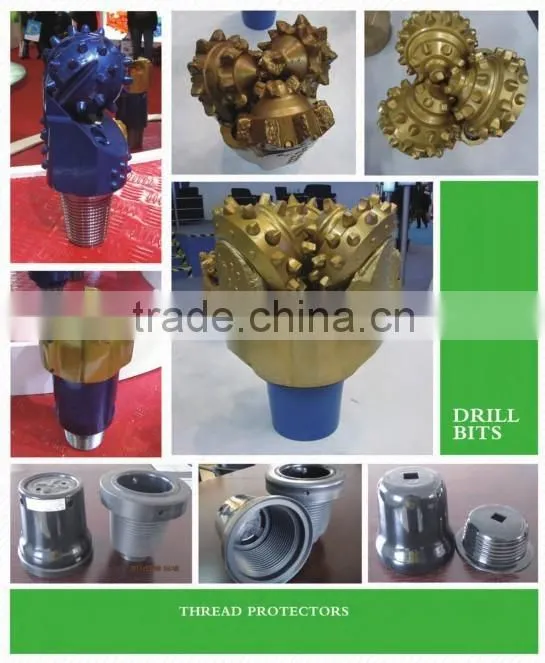

3.Wesupply drilling equipment,drilling tools,wellhead tools,down hole tools; Production equipments, Progressing Cavity Pumps, Electrical submersible pump; OCTG, etc.We can also supply the products and service according the special requirement of the customers.
