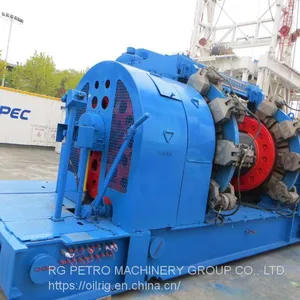

Hydraulic Disc Brake PSZ65 PSZ75 PSK75 PSK80 PSK90 PSK120 PZ30 PZ40 Drawworks

Hydraulic Disc Brake Assembly

Type: PS30、PS40、PS75、PS80、PS120、PSZ65、PSZ75、PSK75、PSK80、PSK90、PSK120. PZ30、PZ40

Hydraulic Disc-brake

Maximum pressure of system　　　　　　　　　　　　　8MPa

Rated flow of system　　　　　　　　　　　　　　　　　20L/minX2

Maximum brake moment of normally open tong　　　　　180kN.m

Maximum brake moment of normally closed tong　　　　　180kN.m

Maximum brake moment of emergent brake　　　　　　　360kN.m

Brake disc size（ thickness×diameter）　　　　　　　　　76×1650mm

Center height of assy　　　　　　　　　　　　　　　　　850mm

PZ series hydraulic disc brake device is machine, electrical, hydraulic Integrated product,it is important parts of drawwork,PS series hydraulic disc brake device is consist of three parts:actuating mechanism,hydraulic power unit and control system.They are connected by hydraulic lines.the hydraulic power unit is the power source which provide the necessary hydraulic power for the actuating mechanism;the control system is the control center of the actuating mechanism;the actuating mechanism is the actuating part of the brake.it is consist of three parts: brake caliper,caliper frame,friction disc,the brake calipers are divided into two types: normally opened service calipers and normally closed emergency calipers,the friction disc is divided into three types:the wind cold disc,the water cold disc and the solid brake disc.

The hydraulic device has four functions as following:

1.service braking  2.emergency braking  3.parking braking  4.Over roll/collision protection

The service caliper mainly consist by:brake pad,steel backing,lever,support arm,semicircle retaining ring,clevis pin with head Ⅱ,cover of the cylinder,cylinder,spring,lock nut,adjusting nut and clevis pin with headⅢ,piston rod.

The emergency caliper mainly consist by :brake pad,steel backing,clevis pin with head,lever,support arm,semicircle retaining ring,clevis pin with head Ⅱ,cover of the cylinder,cylinder,lock nut,adjusting nut and clevis pin with headⅢ.
