Oilfield Rig Oil/Gas API 8C Swivel
Features of Oilfield Rig Oil/Gas API 8C Swivel:
- API Spec 8C standard;
- Authorized to use the official API monogram;
- Equipped with standard bail and double pin (male) alloy sub;
- Washpipe and packing are box structures and convenient to be replaced on drill floor without disassembling the rotary hose and gooseneck;
- Hole in top of gooseneck provides passageway for well logging wireline;
Specifications of Oilfield Rig Oil/Gas API 8C Swivel:
Model |
SL90 |
SL135 |
SL225 |
SL450 |
|
Max. static hook load (KN) |
900 |
1350 |
2250 |
4500 |
|
Max. speed r/min. |
300 |
300 |
300 |
300 |
|
Max. Working pressure (MPa/psi) |
25/3570 |
35/5000 |
35/5000 |
35/5000 |
|
Clearance between bail and gooseneck - mm (in.) |
435 (17 1/8) |
495 (19 1/2) |
540 (21 1/4) |
549 (21 5/8) |
|
Center pipe dia. - mm (in.) |
64 (2 1/2) |
64 (2 1/2) |
75 (3) |
75 (3) |
|
Center pipe upper thread |
Connect to center pipe API (standard) in. |
4 1/2 REG LH |
4 1/2 REG LH |
6 5/8 REG LH |
7 5/8 REG LH |
Center pipe lower thread |
Connect to Kelly API (standard) in. |
6 5/8 REG LH |
6 5/8 REG LH |
6 5/8 REG LH |
6 5/8 REG LH |
Gooseneck connection thread |
3″-8 threads / inch |
3″-8 threads / inch |
4″-8 threads / inch |
4″-8 threads / inch |
|
Dimensions (L × W × H) mm |
2505×758×840 |
2505×758×840 |
2880×1026×1065 |
3015×1096×1065 |
|
Note: the above swivels are divided into two types: swivels with spinners (double duty) and swivels without spinners | |||||
Pictures of Oilfield Rig Oil/Gas API 8C Swivel:

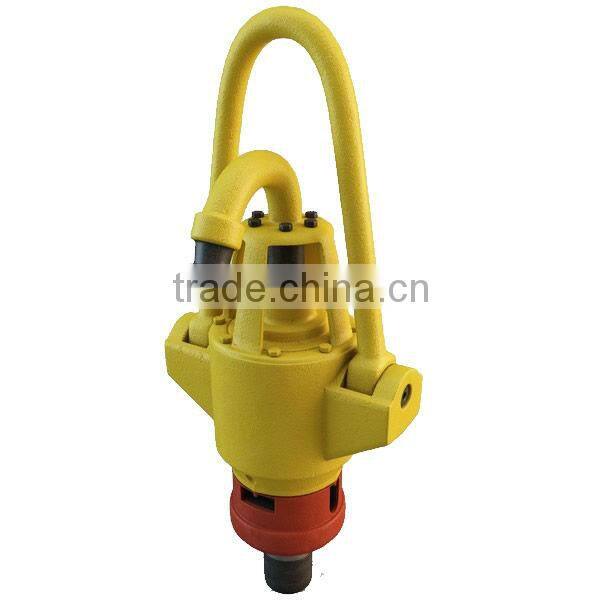

Oilfield Rig Oil/Gas API 8C Swivel

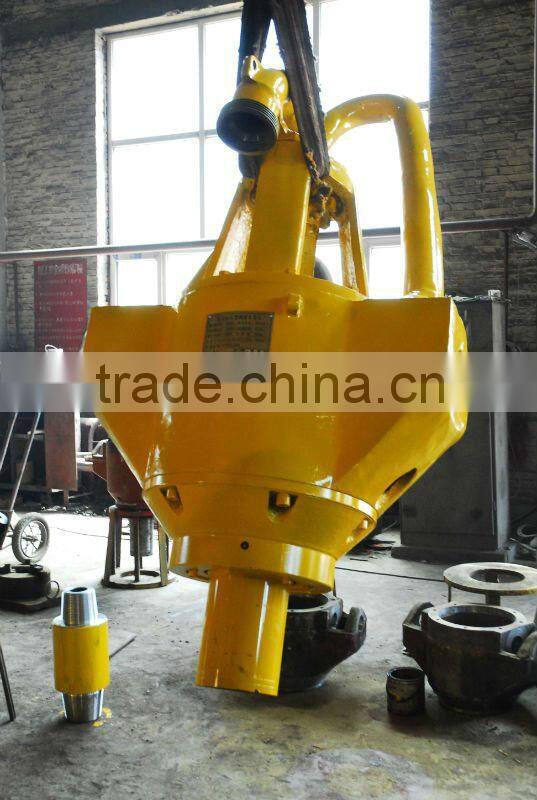

Oilfield Rig Oil/Gas API 8C Swivel Assembled in Workshop

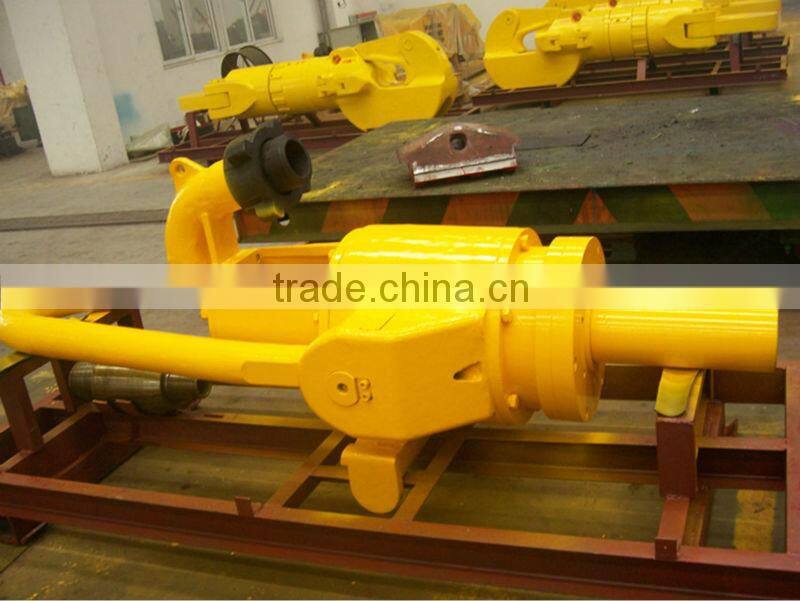

Oilfield Rig Oil/Gas API 8C Swivel in Workshop

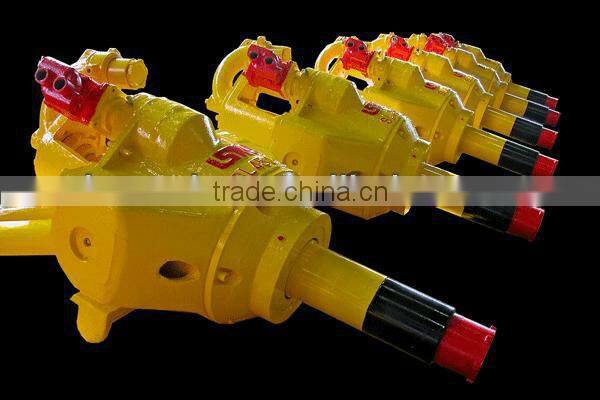

Oilfield Rig Oil/Gas API 8C Swivels Displayed
(For further and more detailed product information, you are welcome to contact us at any time in any way or visit .)
-----------
