Home > Packaging & Printing > Printing Machinery > Flexographic Printer > YT4600-41200Series Four-Colour Flexographic Printing Machine

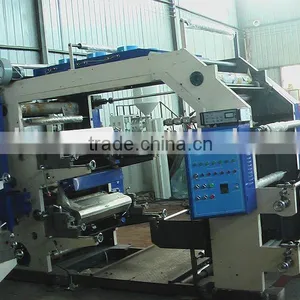

YT4600-41200Series Four-Colour Flexographic Printing Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Letterpress
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/ Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
YT Series Six-Color Flexographic Printing MachineNegotiableMOQ: 1 Set -
Two-Color Flexographic Printing MachineNegotiableMOQ: 1 Set
-
YT4600-41000 Series Four-Colour Flexo Graphic Printing MachineNegotiableMOQ: 1 Set
-
YT Series Six-Color Flexography Printing MachineNegotiableMOQ: 1 Set
-
Six-Colour Flexographic Printing MachineUS$ 15,000 - 15,000MOQ: 1 Set
Condition
New
Plate Type
Letterpress
Place of Origin
Zhejiang, China
Brand Name
FT
Model Number
YT4600-41200Series
Usage
Other
Automatic Grade
Automatic
Specifications
USEThis machine is suitable for printing such packing materials as polyethylene,polyethylene plastic bioglass paper and roll p
Characteristics
1.Easy operation, flexible starting accurate colour register.
2.The meter counter can set printing quantity according to the requirement. Stop the machine automatically at the set quantity or when the material is cut off.
3.Lift and lower the printing plate cylinder manually, It will automatically stir the printing ink after lifting
4.The printing ink is spread by the knurled cylindder with even ink colour.
5.Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360°continuous and adjustable longitudinal register device.
7.The imported frequency control of motor speed adapts to different printing speeds.
8.There are inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Main Technical Variables
1.Easy operation, flexible starting accurate colour register.
2.The meter counter can set printing quantity according to the requirement. Stop the machine automatically at the set quantity or when the material is cut off.
3.Lift and lower the printing plate cylinder manually, It will automatically stir the printing ink after lifting
4.The printing ink is spread by the knurled cylindder with even ink colour.
5.Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360°continuous and adjustable longitudinal register device.
7.The imported frequency control of motor speed adapts to different printing speeds.
8.There are inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Main Technical Variables
Model of Machine |
YT-4600 |
YT-4800 |
YT-41000 |
YT-41200 |
|
Max.Width of
Printing Material
|
600mm |
800mm |
1000mm |
1200mm |
Max.Printing With |
580mm |
780mm |
980mm |
1180mm |
|
Length Range of
Printed Product
|
190-960mm |
190-960mm |
190-960mm |
190-960mm |
|
Max.Diameter of
Roll Material
|
450mm |
450mm |
450mm |
450mm |
Printing Speed |
50m/min |
50m/min |
50m/min |
50m/min |
|
Thickness of
plate(Including
Two-sides Glue Paper)
|
2.38mm |
2.38mm |
2.38mm |
2.38mm |
Total Power |
12.2kw |
16.2Kw |
19.25Kw |
23.55 |
Weight of Machine |
3000kg |
3500 kg |
4000 kg |
4200kg |
Overall Dimensions(mm) |
4200*1600*240 |
4200*1800*2400 |
4200*2000*2400 |
4200*2200*2400 |
