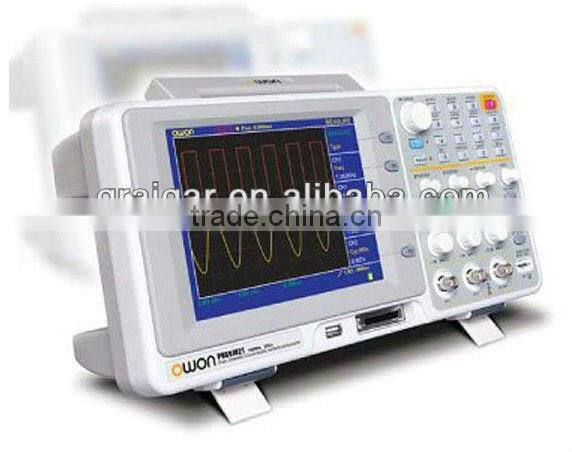

OWON Portable Digital Storage Oscilloscope PDS6062S 60HMz 250MS/s with FFTOWON Portable Digital Storage Oscilloscope PDS6062S 60HMz 250MS/s with FFT
Main Features:
1. Autoscale
2. 20 Automatic Measurements
3. 25MHz bandwidth
4. 100MS/s real time sample rate
5. Support USB for data transmission to PC
6. 7.8 inch LCD color display for large view
7. Max. record length of 6000 points for each channel
8. Advanced trigger function:
Edge trigger, Video trigger and Alternate trigger
Application:
Electronic circuit debugging Circuit testing Design and manufacture
Education and training Automobile maintenance and testing
Oscilloscope Specification | |||||
Model |
PDS5022S |
PDS6062S |
PDS6062T |
PDS7102T |
|
Bandwidth |
25MHz |
60MHz |
100MHz |
||
Sample Rate(Real time ) |
100MS/s |
250MS/s |
500MS/s |
||
Rise time |
≤14ns |
≤5.8ns |
≤3.5ns |
||
Display |
7.8 inch color LCD,STN screen, |
8.0 inch color LCD,TFT screen, |
|||
Channel |
Dual channels+external trigger |
||||
Sampling mode |
Normal sample, Peak detect and Average |
||||
Record length |
5K points on each channel |
6K points on each channel |
|||
Horizontal scale (s/div) |
5ns/div-100s/div step by 1-2.5-5 |
5ns/div-100s/div step by 1-2-5 |
|||
Vertical sensitivity |
5mV~5V/div (at BNC input) |
||||
DC Gain Accuracy |
±5% |
±3% |
|||
Max. input voltage |
300V(DC+AC PK-PK,1MΩ input impedance,Probe |
400V(DC+AC |
|||
Input impedance |
1MΩ±2%, in parallel with 20pF±3pF |
||||
Input coupling |
DC, AC |
DC, AC, GND |
|||
Vertical resolution (A/D) |
8 bits (2CH simultaneously) |
||||
Sampling rate / relay |
±100ppm |
||||
Interval(ΔT)accuracy |
Single:±(1 interval time+100ppm×reading+0.6ns) Average>16:±(1 interval |
||||
Waveform storage |
4 waveforms |
||||
Cursor measurement |
ΔV and ΔT between cursors |
||||
Line/field frequency |
Support NTSC, PAL and SECAM |
||||
Acquisition modes |
Sample, Peak Detect and Average |
||||
Interpolation |
(sin x)/x |
||||
Displacement |
±50V(500mV-5V), ±2V(5mV-200mV) |
||||
Trigger type |
Edge, Video |
Edge, Video, |
|||
Trigger mode |
Auto, Normal, Single |
||||
Trigger level |
±6 divisions from screen center |
||||
Automatic measurement |
Vpp,Vavg,RMS,Frequency,Period,Vmax,Vmin,Vtop,Vbase,Width,Overshoot |
||||
Waveform math |
+, -, FFT |
||||
Lissajou’s |
Bandwidth |
25MHz |
60MHz |
60MHz |
100MHz |
Phase difference |
±3 degrees |
||||
Interface |
USB Data Cable (Transfer waveform data to a PC) |
||||
Power supply |
100V-240V AC, 50Hz/60Hz, CATII |
||||
Power consumption |
≤15W |
||||
Fuse |
1A, T grade, 250V |
||||
