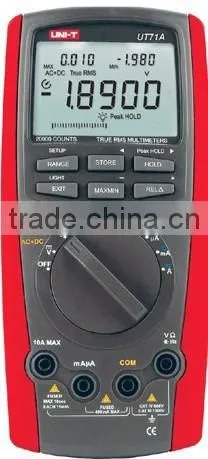

UNI-T UT71A UT-71A Intelligent LCD Digital Multimeter Voltmeter Ammeter Ohmmeter

Name: UNI-T UT71A UT-71A Intelligent LCD Digital Multimeter Voltmeter Ammeter Ohmmeter
Brand: Uni-Trend
SKU: 130769253

US$ 130 - 140 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Uni-Trend

Model Number:

UT71A

Shenzhen Graigar Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Uni-Trend

Model Number UT71A

Measuring Current Range 200uA/2000uA/20mA/200mA/10A

Measuring Voltage Range DC 200mV/2V/20V/200V/1000V,AC 2V/20V/200V/1000V

Measuring Resistance Range 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

Measuring Capacitance Range 20nF/200nF/2uF/20uF/200uF/2mF/20mF

Operating Temperature 0℃-40℃

Dimensions 195*90*40mm

Specifications

F04966 UNI-T UT81B Handheld LCD Scopemeter Oscilloscope Digital Multimeter

F04966 UNI-T UT81B Handheld LCD Scopemeter Oscilloscope Digital Multimeter

SPECIFICATIONS

Basic Functions	Range	Best Accuracy
DC Voltage	200mV/2V/20V/200V/1000V	(0.1%+8)
AC Voltage	2V/20V/200V/1000V	(0.8%+40)
ACBandwidh	100KHz
DC Current	200µA/2000µA/20A/200mA/10A	(0.2%+20)
AC Current	200µA/2000µA/20A/200mA/10A	(1%+15)
Resistance	200W/2kW/20kW/200kW/2MW/20MW	(0.5%+20)
Capacitance	20nF/200nF/2µF/20µF/200µF/2mF/20mF	(1.5%+20)
Frequency	20Hz/200Hz/2kHz/20kHz/200KHz/2MHz/20MHz/200MHz	(0.1%+15)
Duty Cycle	10%~90%	(1%+30)
4~20mA Loop	0%~100%	(1%+50)
Special Functions
Fused 10A Range		YES
Auto Ranging		YES
Current Measurement Alarm		YES
Function Set Up		YES
Votage & Current : AC + DC Measurement		YES
Diode		YES
Continuity Buzzer		YES
True RMS		YES
Peak Hold		YES
Max/Min Mode		YES
Relative Mode		YES
Data Hold		YES
USB		YES
Double Display Backlight		YES
Full lcon Disply		YES
Sleep Mode		YES
Low Battery Display		YES
Input Impedance for DC Voltage Measurement	DC 200mV: Around 2.5GW All Other Ranges: 10MW	YES
Max. Display	20000	YES
Analogue Bar Graph		YES

GENERAL CHARACTERISTICS

Power	9V Battery (6F22)
LCD Size	73 x 50mm
Product Colour	Red and Grey
Product Net Weight	384g
Product Size	200 x 93 x 40mm
Standard Accessories	Test Lead, Battery, English Manual, Alligator Clip, Test Clip, USB Interface Cable, Software, Carrying Bag
Standard Individual Packing	Gift Box
Standard Quantity Per Carton	20pcs
Standard Carton Measurement	530 x 360 x 385mm (0.073 CBM Per Standard Carton)
Standard Carton Gross Weight	22kg
