Specifications

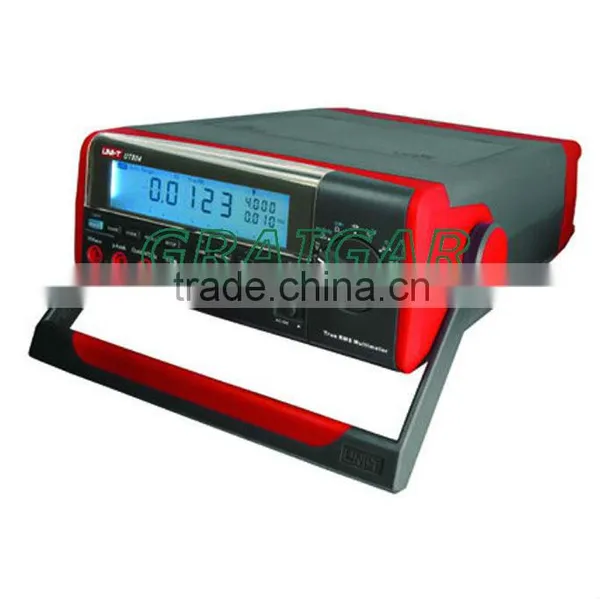

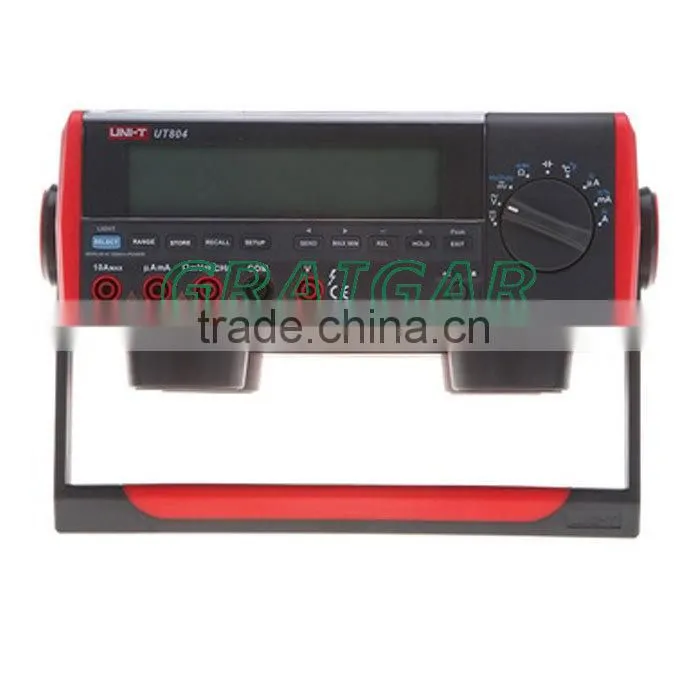

UNI-T UT804 Bench Top Digital Multimeter Volt Amp Ohm Capacitance Temp TesterUNI-T UT804 Bench Top Digital Multimeter Volt Amp Ohm Capacitance Temp Tester free shipping
The UNI-T UT804 DMM gives reliable, cost effective, full DMM capabilities measuring DC/AC Voltage, DC/AC Current, Resistance, Capacitance, Diode Test, Frequency, and Temperature. This DMM is designed for simple and efficient bench top use, but includes software options for datalogging and remote programming from almost any interface. The UT804 is a great bench tool for accurate, reliable measurements with included software that allows this unit to integrate with your PC.
Specifications:
Basic Functions |
Range |
Best Accuracy |
DC Voltage |
400mV/4V/40V/400V/1000V |
(0.025%+5) |
AC Voltage |
4V/40V/400V/1000V |
(0.4%+30) |
AC Bandwidth |
100kHz |
Yes |
DC Current |
400mA /4000mA/40mA/400mA/10A |
(0.1%+15) |
AC Current |
400mA/4000mA/40mA/400mA/10A |
(0.7%+15) |
Resistance |
400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ |
(0.3%+40) |
Capacitance |
40nF/400nF/4mF/40mF/400mF/4mF/40mF |
(1%+20) |
Temperature (oC) |
-40°C ~ 1000°C |
(1%+30) |
Temperature (oF) |
-40°F ~ 1832°C |
(1.5%+50) |
Frequency |
4MHz/40MHz/400MHz |
(0.01%+8) |
Duty Cycle |
100% |
(1.0%+40) |
4~20mA Loop |
0-100% |
(1%+50) |
Special Functions |
|
|
Fused 10A Range |
|
Yes |
Auto / Manual Ranging |
|
Yes |
Function Set Up |
|
Yes |
Voltage & Current : |
|
Yes |
AC Voltage Frequency |
100kHz True RMS |
Yes |
Data Logging |
|
Yes |
Data Recall |
|
Yes |
Diode |
|
Yes |
Continuity Buzzer |
|
Yes |
True RMS |
|
Yes |
Peak Hold |
|
Yes |
Max/Min Mode |
|
Yes |
Relative Mode |
|
Yes |
Data Hold |
|
Yes |
RS232C |
|
Yes |
USB |
|
Yes |
Display Backlight |
|
Double |
Full Icon Display |
|
Yes |
Sleep Mode |
|
Yes |
Low Battery Dlsplay |
|
Yes |
Input Impedance for DC Voltage Measurement |
400mV Range: Around 4GW |
Yes |
Max. Display |
39999 |
Yes |
Analogue Bar Graph |
|
Yes |
GENERAL CHARACTERISTICS
Power |
AC220V/50Hz or 1.5V Battery (R14) x 6 |
LCD Size |
128 x 28mm |
Product Color |
Red and Grey |
Product Net Weight |
2.2kg |
Product Size |
310 x 240 x 105mm |
Standard Accessories |
Test Lead, Batteries, AC220V Power Cord, English Manual,Point Contact Temperature Probe,Alligator Clip, Test Clip, RS232C Interface Cable, USB |
Standard Individual Packing |
Gift Box |
Standard Quantity Per Carton |
4pcs |
Standard Carton Measurement |
685 x 370 x 325mm (0.083CBM Per Standard Carton) |
Standard Carton Gross Weight |
15kg |
