Kyoritsu 2040 DIGITAL DISPLAY AC DC Clamp Meter Tester

Name: Kyoritsu 2040 DIGITAL DISPLAY AC DC Clamp Meter Tester
Brand: KYORITSU
Availability: InStock

FOB Price

US$ 50 - 150 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Japan	Brand Name	KYORITSU
Model Number	2040	Display Type	Digital Only
Measuring Current Range	200/600A	Measuring Voltage Range	600V
Measuring Capacitance Range	40n/400n/4μ/40μ/400μ	Operating Temperature	-10~50
Dimensions	243(L) x 77(W) x36(D)mm	Weight	300g

Kyoritsu 2040 DIGITAL DISPLAY AC DC Clamp Meter Tester

Features:

Designed to meet international safety standard IEC 61010-1 CAT.IV 600V.

CAT.IV Clamp Meters can measure the Voltage and Current in both very low and high power circuits.

Thus, very useful for power distribution companies, power utilities and maintenance fields.

Specifications:

AC A	0~600.0A ±1.5%rdg±5dgt (50/60Hz) ±3.5%rdg±8dgt (40~400Hz)
AC V	6/60/600V Auto Ranging ±1.3%rdg±4dgt (50/60Hz) ±3.0%rdg±5dgt (40~400Hz)
DC V	600m/6/60/600V Auto Ranging ±1.0%rdg±3dgt
Ω	600/6k/60k/600k/6M/60MΩ (Auto Ranging) ±1%rdg±5dgt (600~6M) / ±5%rdg±8dgt (60M)
Continuity buzzer	Buzzer Sounds at 100Ω
Frequency/DUTY	10/100/1k/10kHz (Auto Ranging) / 0.1~99.9%
Conductor Size	Ø33mm
Withstand Voltage	6880V AC for 5 seconds IEC 61010-1 CAT.IV 600V
Applicable standards	IEC 61010-031, IEC 61010-2-032, IEC 61326
Power Source	R03 (1.5V) (AAA) × 2
Dimensions	243(L) × 77(W) × 36(D)mm
Weight	300g

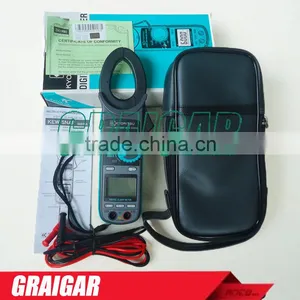

Accessories	7066A (Test leads) 9094 (Carrying case) Instruction Manual
Optional	8008 (Multi-Tran)

Edited by Julie
