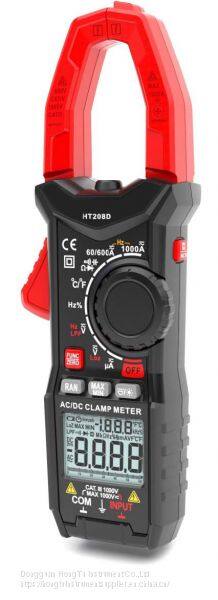

Non Contact AC/DC Digital Clamp Meter
Specification:
Specifications |
Range |
Accuracy |
HT208D |
||
DC Voltage |
6V/60V/600V/1000V |
±(1.0%+3) |
AC Voltage |
6V/60V/600V/750V |
±(1.2%+3) |
AC Current |
60A/600A/1000A |
±(3.0%+5) |
Resistance |
600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ |
±(1.0%+3) |
Capacitance |
60nF/600nF/6uF/60uF/600uF/6mF/60mF |
±(4.0%+3) |
100mF |
±(5.0%+5) |
|
Frequency |
10Hz/100Hz/1kHz/10kHz/ 100kHz/1MHz/10MHz |
±(1.0%+3) ±(1.0%+2) |
Duty |
1%~99% |
±(1.0%+3) |
Temperature（℃/°F） |
-40℃~1000℃ |
±(1.0%+3) |
-40°F~1832°F |
||
Counters |
6000 |
|
Auto/manual range |
√ |
|
Bargraph |
√ |
|
NCV (LED and Buzz) |
√ |
|
Diode |
√ |
|
Continuity (LED and Buzz) |
√ |
|
MAX/MIN hold |
√ |
|
Data hold |
√ |
|
True RMS |
√ |
|
AC bandwidth |
1KHZ |
|
Low battery indication |
√ |
|
Auto power off |
√ |
|
Double color backlight |
√ |
|
Flashlight |
√ |
|
LPF |
√ |
|
V-Loz |
√ |
|
Power |
2*AA batteries |
|
Weight |
Appro*.380g |
|
Size |
240mm*85mm*40mm |
|
Safety rating |
EN61010-1,-2-030 EN61010-2-033,EN61326-1 CAT III 1000V,CATIV 600V |
|
