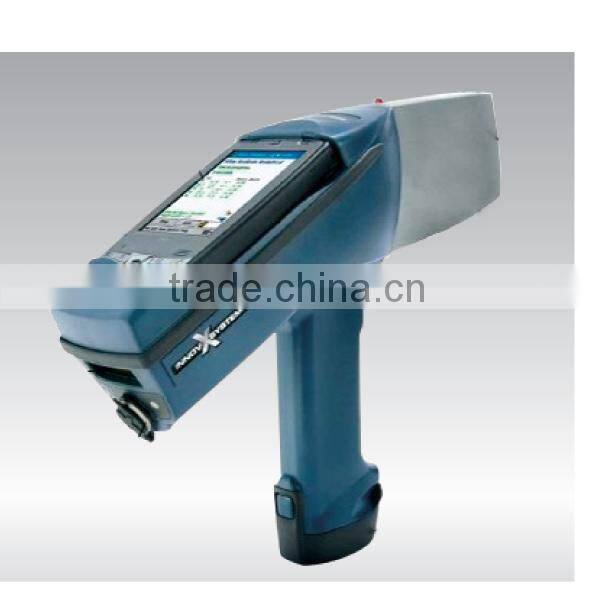

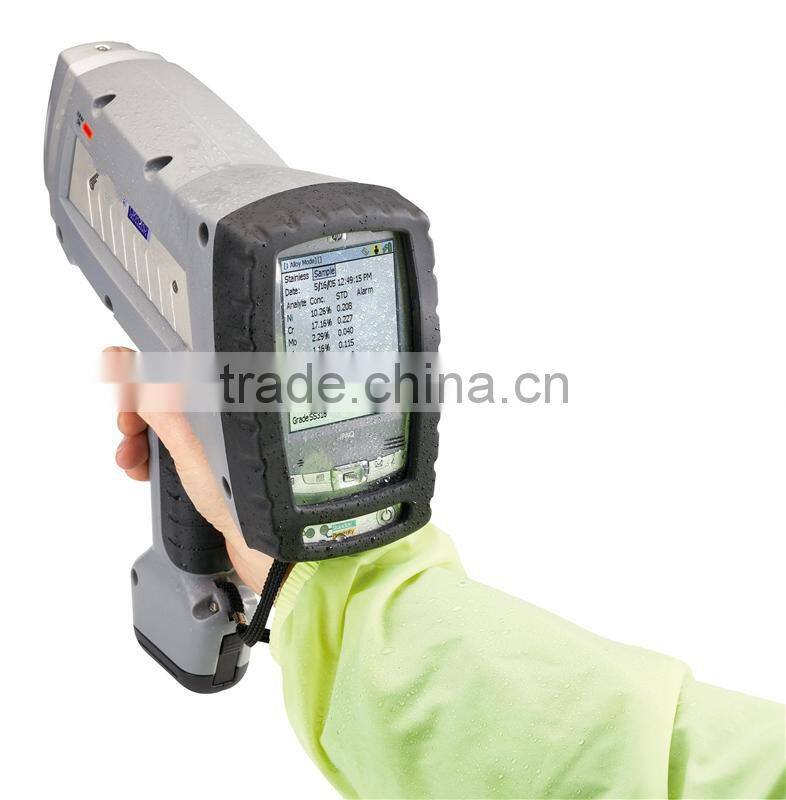

PORT-X200 energy dispersive x-ray fluorescent spectrometer is a portable Analyser specially designed for a production site and field environment. It′s small size is very handy, it has little weight, easy operation and super long standby, etc.
PORT-X200 is widely applied in such fields as alloy steel, geological survey, mining and metallurgy, metal recycling, noble metal testing, and it can also be applied in quantitative analysis of all elements from Magnesium (Mg) to Uranium (U).
Applications |
Analysis field |
Analysis element |
“PORT-Alloys” |
Alloy elements |
Al, Si, P, S, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Nb, Mo, Cd, Sn, W, Hg, Pb, Bi, etc. |
“PORT-RareEarth” |
Rare Earth elements |
Sc, Y, La, Ce, Pr, Nd, Pm, Sm, Eu, Gd, Tb, Dy, Ho, Er, Yb, Lu. |
“PORT-RoHS” |
RoHS |
Cr, Br, Cd, Hg, Pb |
Dimension: 280mm×80mm×260mm
Weight: 1.5KG
Excitation source: X-ray tube, Rh target, 0-50kV, 4W
Detector: high-performance SDDdetector
PDA: Dual core1.2G CPU, 1G memory,4.3inch screen,960x540 resolution
PDA system: Android operating system, with dedicated testing software
Storage function: disk space 8G, support long-time mass data storage
Battery: 7.4V, dual Li-ion Battery, each supports continuous work for more than 6 hours
Detection time: 10s~90s
Data transmission: USB, Bluetooth
Data print: portable Bluetooth printer
Resolution: 125eV-150eV
Power consumption: Standby power less than 3W, and working power less than 7W
Environmental conditions: Temperature range: -40℃~+50℃; Humidity range: 0~80%
Content range: the scope of from ppm level to higher percentage.
Detection object: solid, and powder
