UNI-T UT81B 8MHz 40MS/s Real-Time Sample Rate Handheld LCD Scopemeter Oscilloscope Digital Multimeter

UNI-T UT81B 8MHz 40MS/s Real-Time Sample Rate Handheld LCD Scopemeter Oscilloscope Digital Multimeter thumbnail-1
UNI-T UT81B 8MHz 40MS/s Real-Time Sample Rate Handheld LCD Scopemeter Oscilloscope Digital Multimeter thumbnail-2
UNI-T UT81B 8MHz 40MS/s Real-Time Sample Rate Handheld LCD Scopemeter Oscilloscope Digital Multimeter thumbnail-3
UNI-T UT81B 8MHz 40MS/s Real-Time Sample Rate Handheld LCD Scopemeter Oscilloscope Digital Multimeter thumbnail-4
UNI-T UT81B 8MHz 40MS/s Real-Time Sample Rate Handheld LCD Scopemeter Oscilloscope Digital Multimeter thumbnail-5
UNI-T UT81B 8MHz 40MS/s Real-Time Sample Rate Handheld LCD Scopemeter Oscilloscope Digital Multimeter thumbnail-6
UNI-T UT81B 8MHz 40MS/s Real-Time Sample Rate Handheld LCD Scopemeter Oscilloscope Digital Multimeter photo-1
UNI-T UT81B 8MHz 40MS/s Real-Time Sample Rate Handheld LCD Scopemeter Oscilloscope Digital Multimeter photo-2
UNI-T UT81B 8MHz 40MS/s Real-Time Sample Rate Handheld LCD Scopemeter Oscilloscope Digital Multimeter photo-3
UNI-T UT81B 8MHz 40MS/s Real-Time Sample Rate Handheld LCD Scopemeter Oscilloscope Digital Multimeter photo-4
UNI-T UT81B 8MHz 40MS/s Real-Time Sample Rate Handheld LCD Scopemeter Oscilloscope Digital Multimeter photo-5
UNI-T UT81B 8MHz 40MS/s Real-Time Sample Rate Handheld LCD Scopemeter Oscilloscope Digital Multimeter photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
UNI-T
Model Number:
UT81B
Contact Supplier Request Quote Chat Now
Shenzhen Graigar Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name UNI-T
Model Number UT81B
Measuring Current Range 10A
Measuring Voltage Range 1000V
Measuring Resistance Range 40MΩ
Measuring Capacitance Range 100uF
Measuring Inductance Range none
Operating Temperature -40 °C - 1000°C
Dimensions 24 * 24 * 7cm

UNI-T UT81B 8MHz 40MS/s Real-Time Sample Rate Handheld LCD Scopemeter Oscilloscope Digital Multimeter



UNI-T UT81B 8MHz 40MS/s Real-Time Sample Rate Handheld LCD Scopemeter Oscilloscope Digital Multimeter









Spefication:

1.DC Voltage:

400mV/4V/40V/400V±(0.8%+8) /1000V±(0.1%+8),Overload Protection:1000V DC or AC,Input Impedance:Around 10MΩ.

2.AC Voltage:

4V/40V/400V±(1%+15)/750V±(1.2%+15),Overload Protection:1000V DC or AC,Input Impedance:Around 10MΩ.

3.DC Current:

400uA /4000uA±(1%+8)/40mA/400mA±(1.2%+8),Overload Protection:F0.5AH/250V

4A/10A(1.5%+8),F10AH/250V(Continuous measurement≤10s,and interval more than 15mins. )

4.AC Current:

400uA/4000uA±(1.2%+8),Overload Protection:F0.5AH/250V

40mA/400mA±(2%+8),Overload Protection:F0.5AH/250V

4A/10A±(2.5%+5),F10AH/250V(Continuous measurement≤10s,and interval more than 15mins )

5.Resistance:

400Ω±(1.2%+5),Overload Protection:250VDC or AC rms

4kΩ/40kΩ/400kΩ±(1%+5) ,Overload Protection:250VDC or AC rms

4MΩ±(1.2%+5),Overload Protection:250VDC or AC rms

40MΩ±(1.5%+5),Overload Protection:250VDC or AC rms

6.Capacitance:

40nF,Under REL Mode:±(3%+10),Overload Protection:250VDC or AC rms

400nF/4uF/40uF±(3%+10),Overload Protection:250VDC or AC rms

100uF±(4%+8),Overload Protection:250VDC or AC rms

7.Frequency: 10Hz~10MHz±(0.1%+3)

8.Vertical Accuracy: ±(5%+1)

9.Input Sensitivity: 20mV/div-500V/div (1-2-5)

10.Horizontal Accuracy:± (0.01%+1)

11.Timebase Range: 100ns/div-5s/div (1-2-5)

12.Bandwidth: 8MHz

13.Display Resolution: 160X160

14.Real-Time Sample Rate: 40MSa/s

15.Duty Cycle: 0.1%~99.9%



Special Functions:

1.Diode

2.Continuity Buzzer

3.Display 160x160 Monochrome

4.Trigger Types Free Run / Normal / Single Shot

5.Memory 10 screens and setups

6.Contrast and Bright Setup

7.Input Impedance For DCVoltage Measurement

Around 10MW

8.Sleep Mode

9.Low Battery Display

10.Display Backlight EL

11.USB

12.Max.Display 3999 and updates 2-3 times per second



GENERAL CHARACTERISTICS :

1.Power 1.5V Battery (R6) x 4 (not included)

2.LCD Size 60 x 60 mm

3.Product Color Red and Grey

4.Product Net Weight 498g

5.Product Size 200 x100 x 48 mm

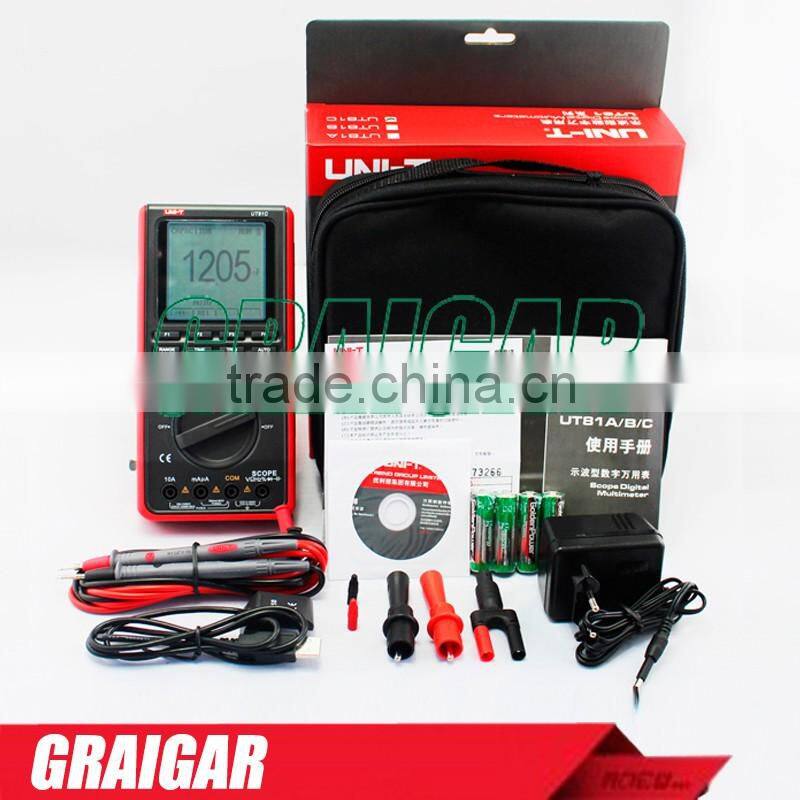

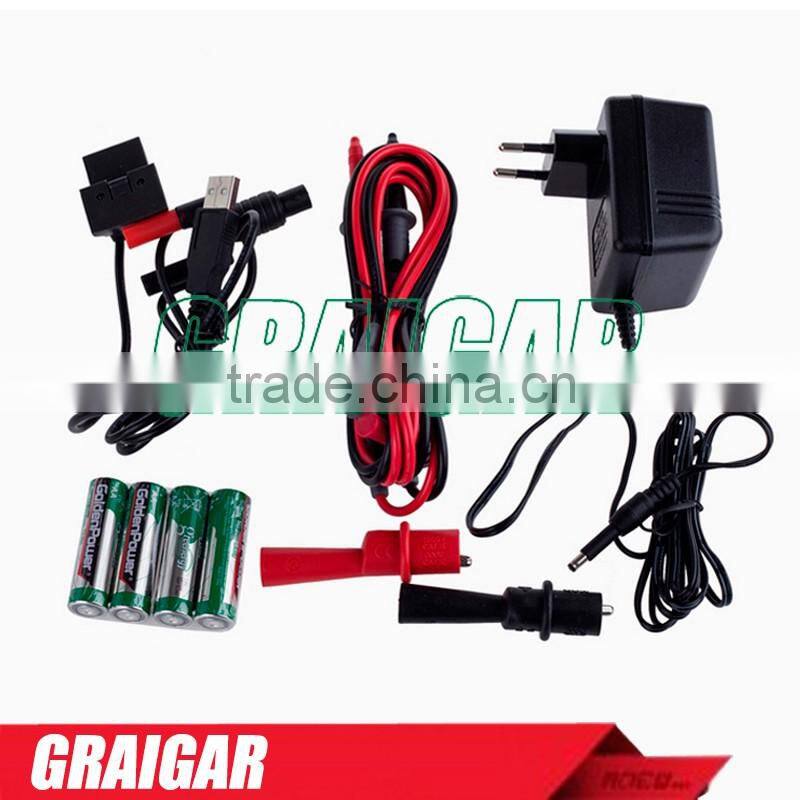

6.Standard Accessories

7.Test Lead , English Manual ,Alligator Clips ,USB Interface Cable, Software, Power Adapter

9.Standard Individual Packing Gift Box
