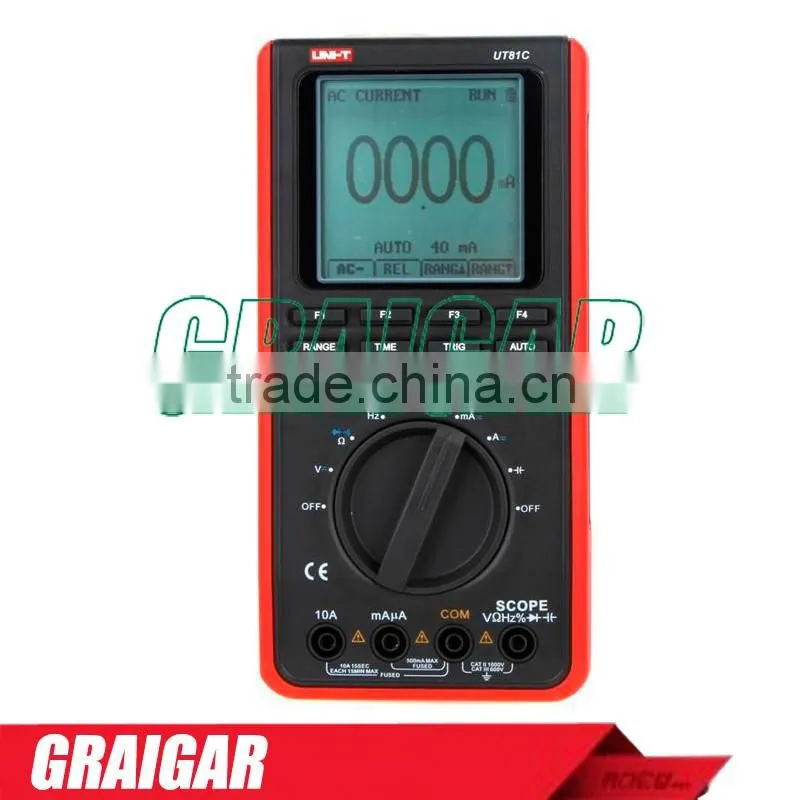

UNI-T UT81C 16MHz 80MS/s Real-Time Sample Rate Handheld Scopemeter Oscilloscope Digital Multimeter with Capacitance Measurement
Features:
Display Count: 3999
Auto Range: √
Duty Cycle: 0.1 ? 99.9%
Diode: √
Auto Power Off: Can set their own
Continuity Buzzer: √
Display: 160 * 160 Monochrome
Trigger Types: Free Run/Normal/Single Shot
Memory: 10 screens and setups
Contrast and Bright Setup: √
Low Battery Indication: √
USB Interface: √
LCD Backlight: √
Input Impedance for DCV: ≥10M?
Specifications:
Model: UT81C
DMM Specifications
DC Voltage (V): 400mV/4V/40V/400V/1000V ±(0.8%+8)
AC Voltage (V): 4V/40V/400V/750V ±(1%+15)
DC Current (A): 400?A/4000?A/40mA/400mA/4A/10A ±(1%+8)
AC Current (A): 400?A/4000?A/40mA/400mA/4A/10A ±(1.5%+8)
Resistance (?): 400?/4K?/40K?/400K?/4M?/40M? ±(1%+5)
Capacitance (F): 40nF/400nF/4?F/40?F/100?F ±(3%+8)
Frequency (Hz): 10Hz-10MHz ±(0.1%+3)
Scope Specification:
Bandwidth: 16MHz
Real-Time Sample Rate: Constant sampling rate (peak sampling) 80MS/s
Vertical Accuracy: ±(5%+1)
Input Sensitivity: 20mV/div - 500V/div(1-2-5)
Horizontal Accuracy:±(0.1%+1)
Time-Base Range: 100ns/div - 5s/div(1-2-5)
General Characteristic:
Product Net Weight: 498g
Product Size: 200mm * 100mm * 48 mm
Power: 4 * 1.5V Batteries (not included)
LCD Size: 60mm * 60 mm
Product Color: Red and Grey
Package Size: 24 * 24 * 7cm / 9.4 * 9.4 * 2.8in
Package Weight: 1265g / 2.8lb
Package list:
1 * UNI-T UT81C Scope Digital Multimeter
1 * Test Lead
2 * Alligator Clips
1 * EU Plug Adaptor
1 * USB Interface Cable
1 * PC Software CD
1 * BNC Probe
1 * English Manual
