Help CenterBaby Feeding Bottle Making Machine
Related Products
Detailed Product Description of Baby feeding bottle making machine:
The machines are widely used in producing feeding bottles, heat resisting bottles, packaging of beverage, cosmetics, food, pharmaceutics, and pesticide etc......
Features of Baby feeding bottle making machine:
1.Using hydro-pneumatic linkage mold clamping mechanism which runs stably with high speed and great clamping force.
2.The control system adopts man-machine interface with Mitsubishi PLC which is of high sensitivity and accuracy.
3.Using coated infrared heating lamps which enable fast and stable heating.
4.Using centralized noise-reducing air recycling system which minimize the noise as much as possible.
5.Using slide core in stepping unit which is easy to operate and saves energy.
6.The finished PP bottle can endure high temperature up to 85-120°C..
Parameters of Baby feeding bottle making machine:
Item |
HGA.P-1C |
|
Container |
Max. Container Volume |
1500 ml |
Neck Diameter Range |
50 mm |
|
Max. ContainerDiameter |
100 mm |
|
Max. Container Height |
330 mm |
|
Theoretical Output |
450 bph |
|
Molding |
Clamping stroke |
150 mm |
Stretching stroke |
350 mm |
|
Bottom Stoke |
25 mm |
|
Preform distance |
130 mm |
|
Preform Holder |
54 pcs |
|
Cavities |
1 No. |
|
|
Electrical System |
Max. Heating Power |
24 kw |
Heating Power |
10 kw |
|
Air System |
Operating Pressure |
7 kg/c m2 |
Low Air Consumption |
1000 ltr/min |
|
Blowing Pressure |
35 kg/c m2 |
|
High Air consumption |
800 ltr/min |
|
Cooling Water |
Operating Pressure |
7 kg/c m2 |
Temperature |
8-12°C |
|
Flow rate |
30 ltr/min |
|
Machine |
Size(L×W×H) |
2520×1350×1750mm |
Weight |
1500 kg |
|

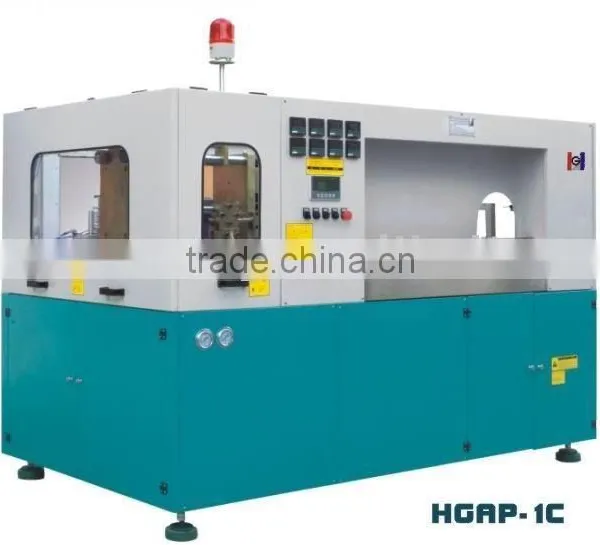

Machine Picture:
Bottle Design:
Our factory:
All the cavity molds(moulds)of Baby feeding bottle making machine are manufactured by ourselves. We have our own CNC processing machine and experienced engineer, who has been making cavity molds at least 5 years. Besides the cavity molds, other hardware parts are also produced by ourselves. Thus we have strong confidence in the stability of our machine because all parts can jointed and worked as a integrated unit.
The most frequently used material for molds are Aluminum, S136(stainless iron):
Our Baby feeding bottle making machine has already accquired the CE certificate:
After sales service:
