Detailed Product Description of PP bottle blow molding machine:
The machines are widely used in producing feeding bottles, heat resisting bottles, packaging of beverage, cosmetics, food, pharmaceutics, and pesticide etc.
Preform material:PP
Output:450BPH(1500ml)
Features of PP bottle blow molding machine:
1.The hydro-pneumatic linkage mold clamping mechanism runs stably with high speed and good clamping force.
2.Microcomputer controls all the movements, easy operation
3.The main electrical and pneumatic components of machine are imported from top brands in Europe, America and Japan, to ensure that the machine is of high quality, good stability and long lifespan.
4.The use of centralized noise-reducing air recycling system helps the air exhaust and reduce noise.
5.The finished PP bottle can endure high temperature up to 120°C.
Parameters of PP bottle blow molding machine:
Item |
HGA.P-1C |
|
Container |
Max. Container Volume |
1500 ml |
Neck Diameter Range |
50 mm |
|
Max. ContainerDiameter |
100 mm |
|
Max. Container Height |
330 mm |
|
Theoretical Output |
450 bph |
|
Molding |
Clamping stroke |
150 mm |
Stretching stroke |
350 mm |
|
Bottom Stoke |
25 mm |
|
Preform distance |
130 mm |
|
Preform Holder |
54 pcs |
|
Cavities |
1 No. |
|
|
Electrical System |
Max. Heating Power |
24 kw |
Heating Power |
10 kw |
|
Air System |
Operating Pressure |
7 kg/c m2 |
Low Air Consumption |
1000 ltr/min |
|
Blowing Pressure |
35 kg/c m2 |
|
High Air consumption |
800 ltr/min |
|
Cooling Water |
Operating Pressure |
7 kg/c m2 |
Temperature |
8-12°C |
|
Flow rate |
30 ltr/min |
|
Machine |
Size(L×W×H) |
2520×1350×1750mm |
Weight |
1500 kg |
|

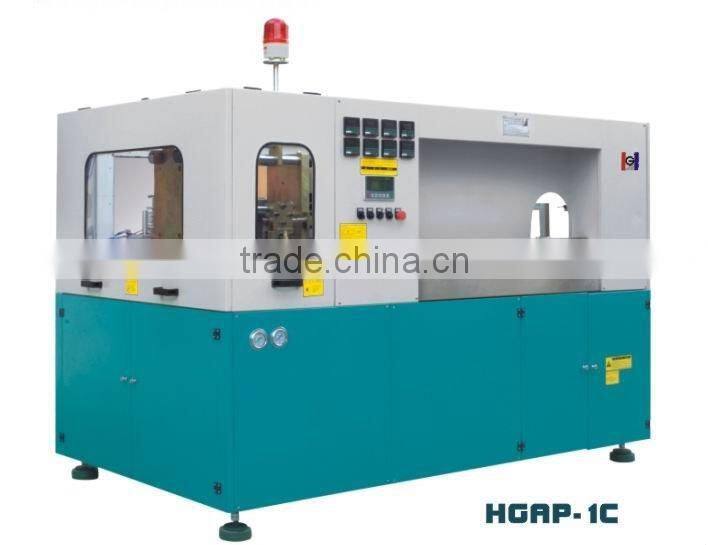

Machine Picture of PP bottle blow molding machine:

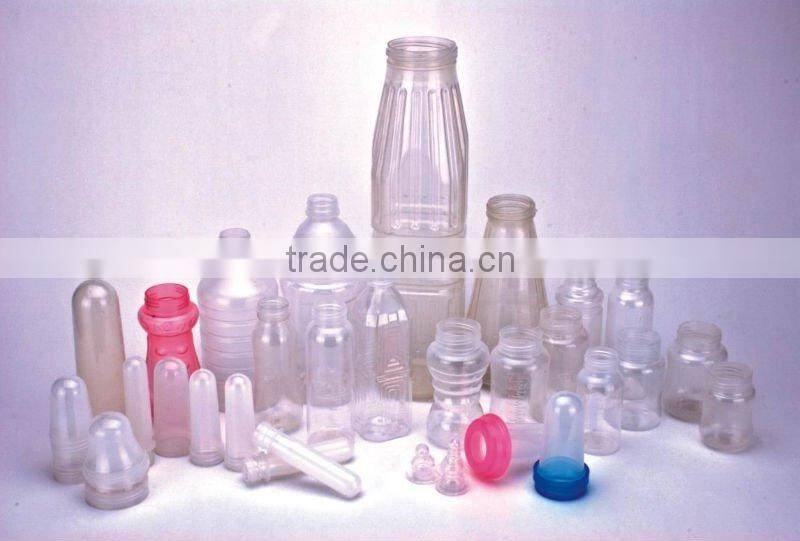

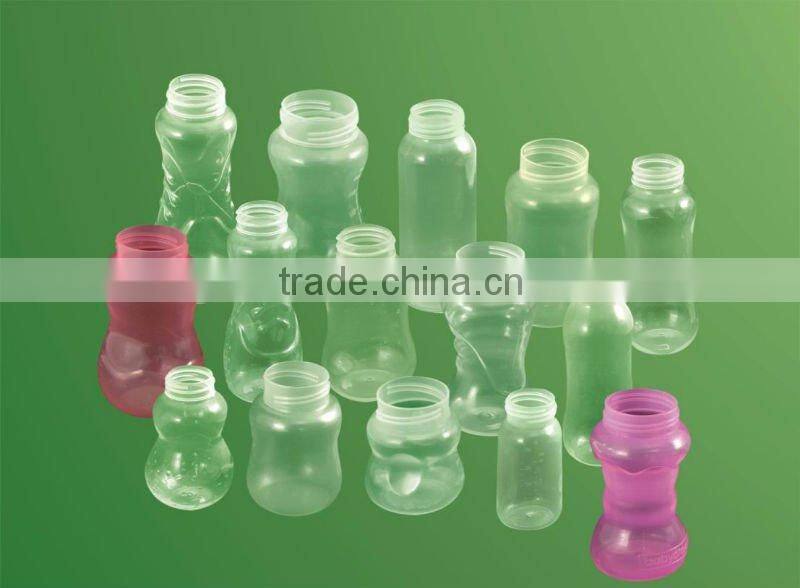

Product made by PP bottle blow molding machine:

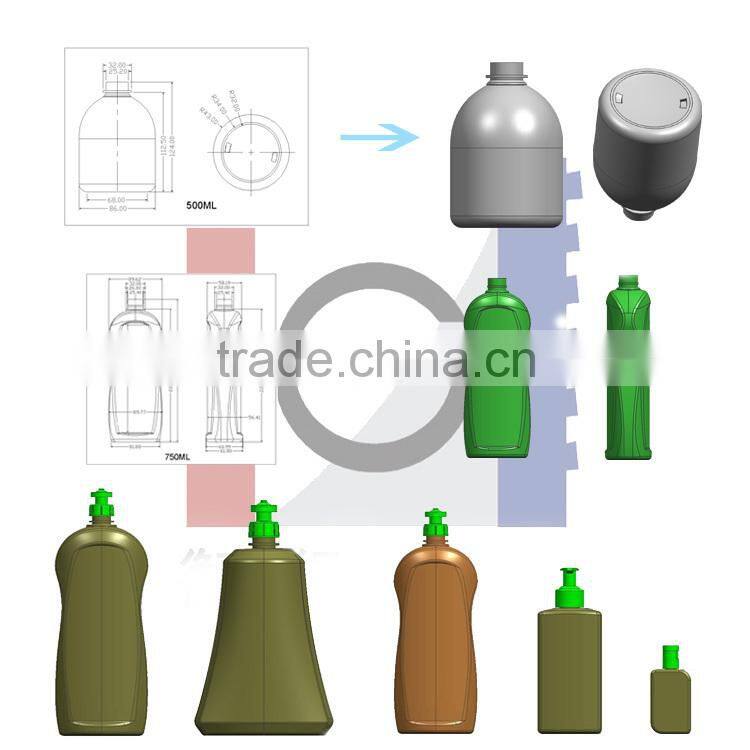

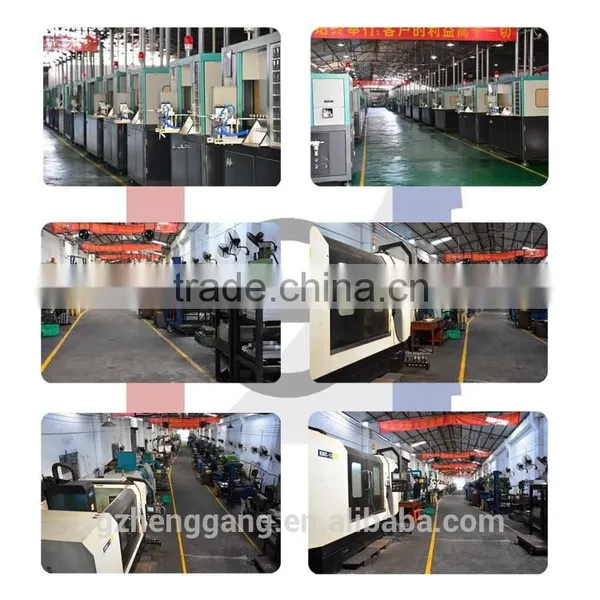

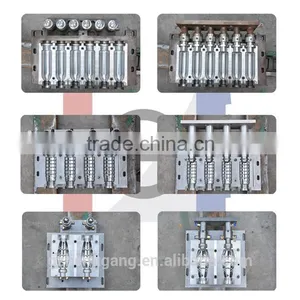

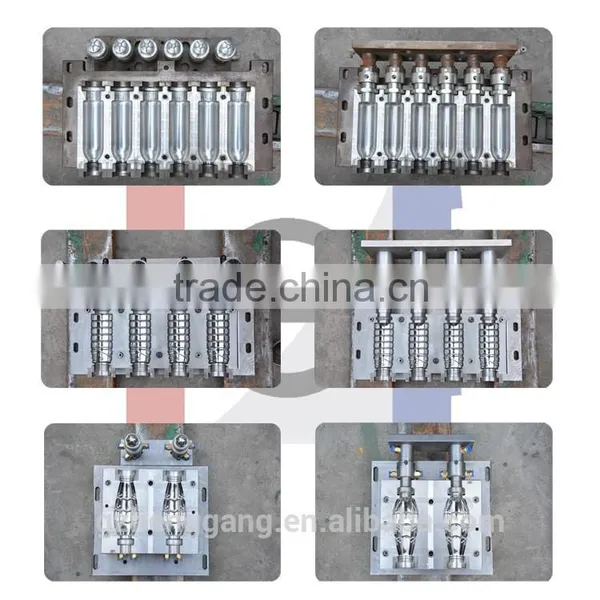

All the cavity molds(moulds)of PP bottle blow molding machine are manufactured by ourselves. We have our own CNC processing machine and experienced engineer, who has been making cavity molds at least 5 years. Besides the cavity molds, other hardware parts are also produced by ourselves. Thus we have strong confidence in the stability of our machine because all parts can jointed and worked as a integrated unit.
The most frequently used material for molds are Aluminum, S136(stainless iron):

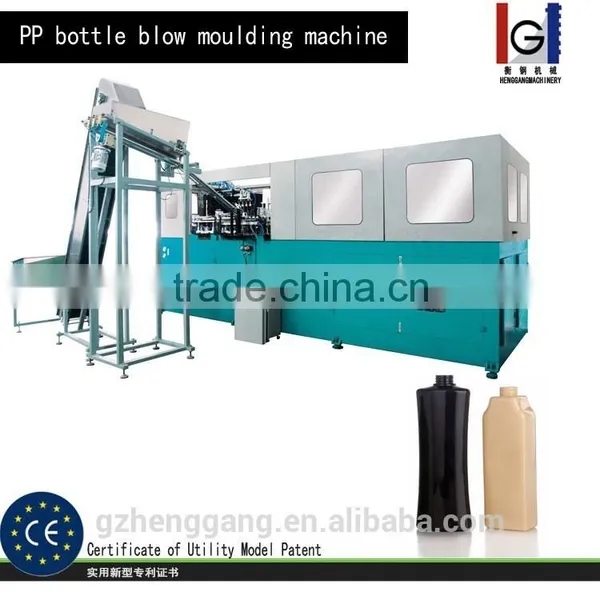

Our PP bottle blow molding machine has already accquired the CE certificate:
