Detailed Product Description of PP bottle blow machine:
The machines are widely used in producing feeding bottles, heat resisting bottles, packaging of beverage, cosmetics, food, pharmaceutics, and pesticide etc....
Preform material:PET
Output:900BPH(750ml)
Features of PP bottle blow machin:
1.Using hydro-pneumatic linkage mold clamping mechanism which runs stably with high speed and great clamping force.
2.The control system adopts man-machine interface with Mitsubishi PLC which is of high sensitivity and accuracy.
3.Using coated infrared heating lamps which enable fast and stable heating.
4.Using centralized noise-reducing air recycling system which minimize the noise as much as possible.
5.Using slide core in stepping unit which is easy to operate and saves energy.
6.The finished PP bottle can endure high temperature up to 85-120°C...
Parameters of PP bottle blow machine:
Item |
HGA.P-2C |
|
Container |
Max. Container Volume |
750 ml |
Neck Diameter Range |
50 mm |
|
Max. ContainerDiameter |
100 mm |
|
Max. Container Height |
280 mm |
|
Theoretical Output |
900 bph |
|
Molding |
Clamping stroke |
150 mm |
Stretching stroke |
350 mm |
|
Bottom Stoke |
25 mm |
|
Preform distance |
130 mm |
|
Preform Holder |
62 pcs |
|
Cavities |
2 No. |
|
|
Electrical System |
Max. Heating Power |
48 kw |
Heating Power |
20 kw |
|
Air System |
Operating Pressure |
7 kg/c m2 |
Low Air Consumption |
1500 ltr/min |
|
Blowing Pressure |
35 kg/c m2 |
|
High Air consumption |
1000 ltr/min |
|
Cooling Water |
Operating Pressure |
5-6 kg/c m2 |
Temperature |
8-10°C |
|
Flow rate |
30 ltr/min |
|
Machine |
Size(L×W×H) |
3100×1750×1750mm |
Weight |
2800 kg |
|

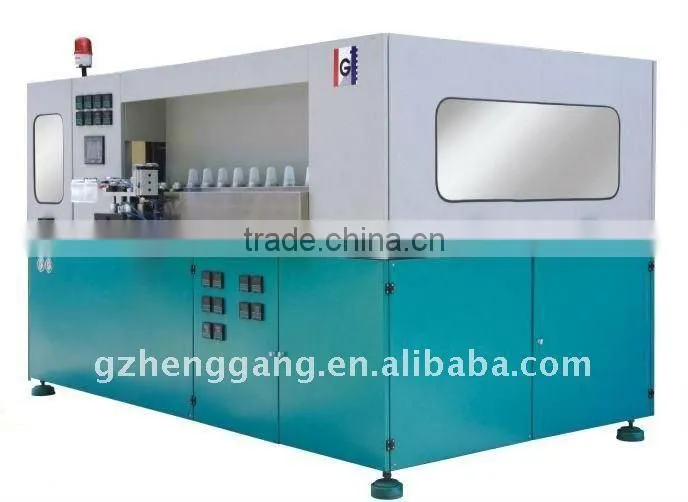

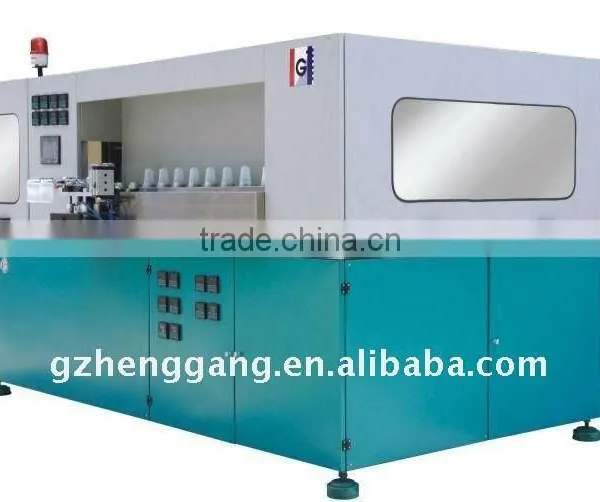

Machine Picture:

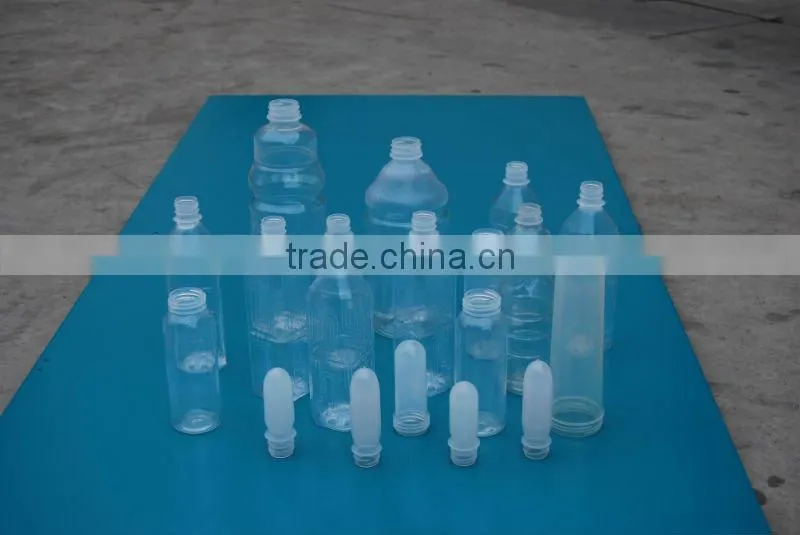

Bottle Design:
All the cavity molds(moulds) are manufactured by ourselves. We have our own CNC processing machine and experienced engineer, who has been making cavity molds at least 5 years. Besides the cavity molds, other hardware parts are also produced by ourselves. Thus we have strong confidence in the stability of our machine because all parts can jointed and worked as a integrated unit.
The most frequently used material for molds are Aluminum, S136(stainless iron):
Our engineer is making the technical drawing by the software UG:
Our engineer is checking the process of the cavity moulds in the CNC machine:
Our master is drilling the holes for the installation of the molds, the drilling is strictly made according to the technical drawing, thus the combination of the parts will be matched perfectly.
Our PP bottle blow machine has already accquired the CE certificate:
Other domestic patents of our auto PP bottle blow machine:
