Help CenterDouble Cavity pp Bottle Blowing Machine
Related Products
Detailed Product Description of Double cavity pp bottle blowing machine:

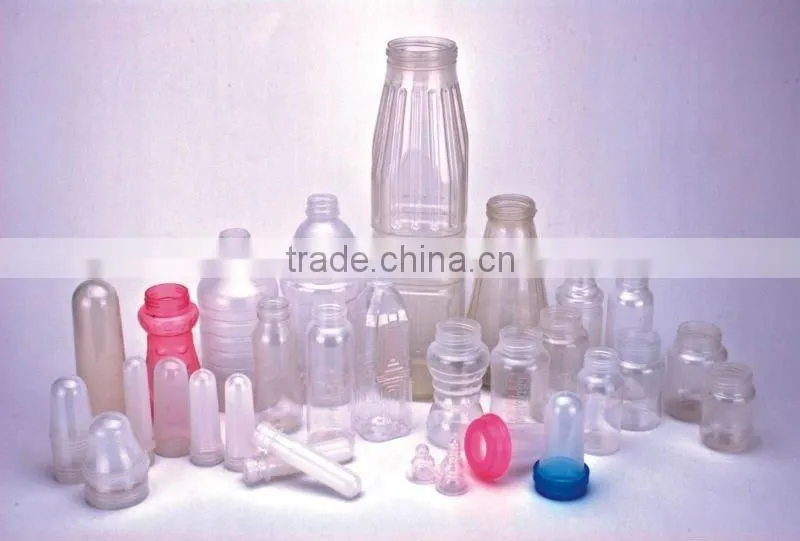

Double Cavity,900bph for 750ml. The machines are widely used in producing feeding bottles, heat resisting bottles, packaging of beverage, cosmetics, food, pharmaceutics, and pesticide etc..
Features of Double cavity pp bottle blowing machine:
1.Using hydro-pneumatic linkage mold clamping mechanism which runs stably with high speed and great clamping force.
2.The control system adopts man-machine interface with Mitsubishi PLC which is of high sensitivity and accuracy.
3.Using coated infrared heating lamps which enable fast and stable heating.
4.Using centralized noise-reducing air recycling system which minimize the noise as much as possible.
5.The finished PP bottle can endure high temperature up to 85-120°C.

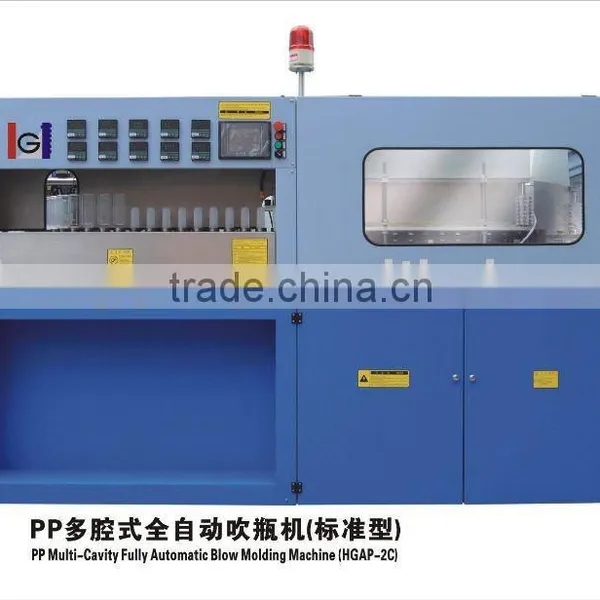

Pictures of Double cavity pp bottle blowing machine:

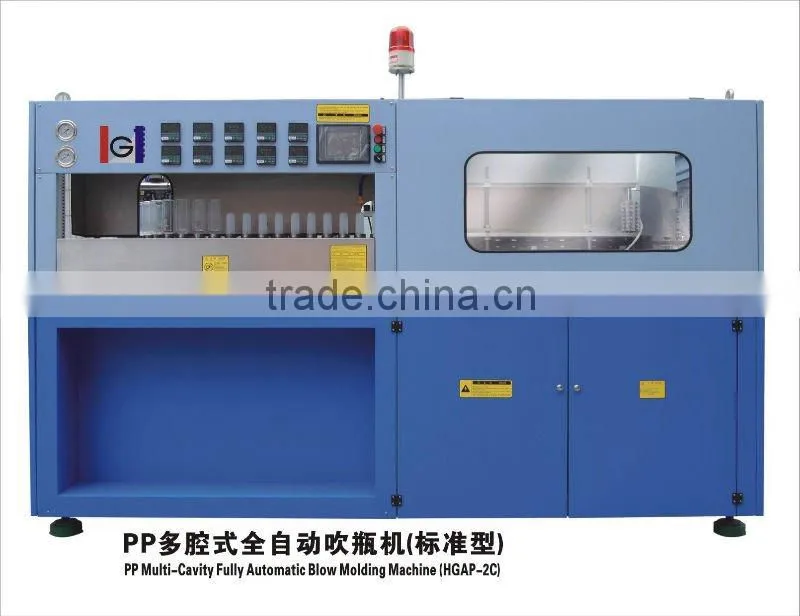

Product Pictures:
Parameters of Double cavity pp bottle blowing machine:
Item |
HGA.P-2C |
|
Container |
Max. Container Volume |
750 ml |
Neck Diameter Range |
50 mm |
|
Max. ContainerDiameter |
100 mm |
|
Max. Container Height |
280 mm |
|
Theoretical Output |
900 bph |
|
Molding |
Clamping stroke |
150 mm |
Stretching stroke |
350 mm |
|
Bottom Stoke |
25 mm |
|
Preform distance |
130 mm |
|
Preform Holder |
62 pcs |
|
Cavities |
2 No. |
|
|
Electrical System |
Max. Heating Power |
48 kw |
Heating Power |
20 kw |
|
Air System |
Operating Pressure |
7 kg/c m2 |
Low Air Consumption |
1500 ltr/min |
|
Blowing Pressure |
35 kg/c m2 |
|
High Air consumption |
1000 ltr/min |
|
Cooling Water |
Operating Pressure |
5-6 kg/c m2 |
Temperature |
8-10°C |
|
Flow rate |
30 ltr/min |
|
Machine |
Size(L×W×H) |
3100×1750×1750mm |
Weight |
2800 kg |
|
Factory overview:
We have two work shops to produce the Double cavity pp bottle blowing machine. One is to process the metallic components. We have CNC, drilling, grinding machines etc.. We can be sure about the perfect matching between different parts:
Technical support:
Besides the good quality of Double cavity pp bottle blowing machine, a good bottle design is very important for the client. We establish a experienced engineering team, to offer professional technical support to our clients.
Sample drawings made by CAD and UG software
Actual molds on site shooting:
Imported Electrical components:
The major electrical components of Double cavity pp bottle blowing machine are using imported famous brand. The high quality electrical components strenthen the stability of our Plastic pet cans blowing machines
After-sales service:
We will send engineers abroad once you decide to choose our Double cavity pp bottle blowing machine
Certifications
Our Double cavity pp bottle blowing machine has acquired the CE and other domestic patents
