PP plastic bottles blowing machines are assembled with a completely enclosed heating system which heats up stably. The whole machine is easy to operate, low cost, highly efficient, working stably and high pass rate; they are widely used in producing feeding bottles, heat resisting bottles, packaging of beverage, cosmetic, food, pharmaceuticscontainers and so on.
Parameters of PP plastic bottles blowing machines:
Item |
HGA.P-2C |
|
Container |
Max. Container Volume |
750 ml |
Neck Diameter Range |
50 mm |
|
Max. ContainerDiameter |
100 mm |
|
Max. Container Height |
280 mm |
|
Theoretical Output |
900 bph |
|
Molding |
Clamping stroke |
150 mm |
Stretching stroke |
350 mm |
|
Bottom Stoke |
25 mm |
|
Preform distance |
130 mm |
|
Preform Holder |
62 pcs |
|
Cavities |
2 No. |
|
|
Electrical System |
Max. Heating Power |
48 kw |
Heating Power |
20 kw |
|
Air System |
Operating Pressure |
7 kg/c m2 |
Low Air Consumption |
1500 ltr/min |
|
Blowing Pressure |
35 kg/c m2 |
|
High Air consumption |
1000 ltr/min |
|
Cooling Water |
Operating Pressure |
5-6 kg/c m2 |
Temperature |
8-10°C |
|
Flow rate |
30 ltr/min |
|
Machine |
Size(L×W×H) |
3100×1750×1750mm |
Weight |
2800 kg |
|

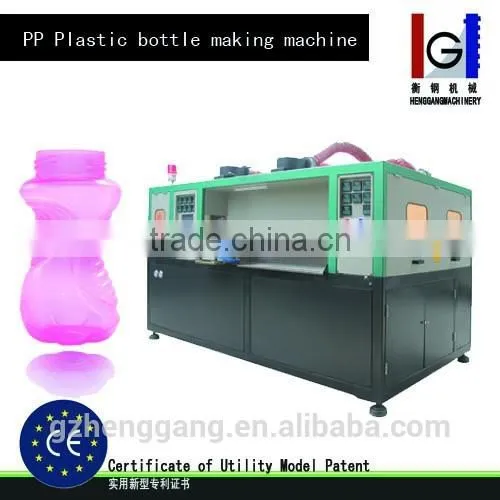

Machine photo of PP plastic bottles blowing machines
Factory overview:
We have two work shops to produce the PP plastic bottles blowing machines. One is to process the metallic components. We have CNC, drilling, grinding machines etc.. We can be sure about the perfect matching between different parts:
Technical support:
Besides the good quality of PP plastic bottles blowing machines, a good bottle design is very important for the client. We establish a experienced engineering team, to offer professional technical support to our clients.
Sample drawings made by CAD and UG software
Actual molds on site shooting:
Imported Electrical components:
The major electrical components of PP plastic bottles blowing machines are using imported famous brand. The high quality electrical components strenthen the stability of our Plastic pet cans blowing machines
After-sales service:
We will send engineers abroad once you decide to choose our PP plastic bottles blowing machines
Certifications
Our PP plastic bottles blowing machines has acquired the CE and other domestic patents
