Detailed Product Description of Plastic juice bottle blow moulding machine:
4 Cavity molds,1800bph for 1500ml, could blow all kinds of shapes, different volumes of hot filling bottles.
Preform material:PET
Output:1800BPH(1500ml)
Features of Plastic juice bottle blow moulding machine:
1.Using hydro-pneumatic linkage mold clamping mechanism which runs stably with high speed and great clamping force.
2.The control system adopts man-machine interface with Mitsubishi PLC which is of high sensitivity and accuracy.
3.Using coated infrared heating lamps which enable fast and stable heating.
4.Using centralized noise-reducing air recycling system which minimize the noise as much as possible.
5.Using slide core in stepping unit which is easy to operate and saves energy.
Parameters of Plastic juice bottle blow moulding machine:
Item |
HGA.H-4C |
|
Container |
Max. Container Volume |
1500 ml |
Neck Diameter Range |
18-38mm |
|
Max. ContainerDiameter |
98 mm |
|
Max. Container Height |
325 mm |
|
Theoretical Output |
1800 bph |
|
Molding |
Clamping stroke |
120 mm |
Stretching stroke |
400 mm |
|
Bottom Stoke |
50/25 mm |
|
Preform distance |
114 mm |
|
Preform Holder |
100 pcs |
|
Cavities |
4 No. |
|
|
Electrical System |
Max. Heating Power |
50 kw |
Heating Power |
25 kw |
|
Air System |
Operating Pressure |
7 kg/c m2 |
Low Air Consumption |
2000 ltr/min |
|
Blowing Pressure |
35 kg/c m2 |
|
High Air consumption |
16000 ltr/min |
|
Cooling Water |
Operating Pressure |
5-6 kg/c m2 |
Temperature |
8-12°C |
|
Flow rate |
30 ltr/min |
|
Machine |
Size(L×W×H) |
5070×2100×2300mm |
Weight |
5000 kg |
|

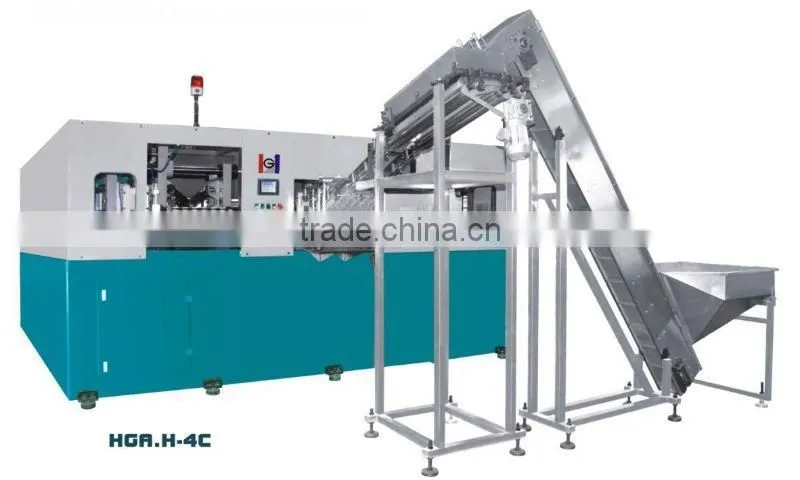

Machine Picture of Plastic juice bottle blow moulding machine: :
Product made by Plastic juice bottle blow moulding machine: :
All the cavity molds(moulds)of Plastic juice bottle blow moulding machine are manufactured by ourselves. We have our own CNC processing machine and experienced engineer, who has been making cavity molds at least 5 years. Besides the cavity molds, other hardware parts are also produced by ourselves. Thus we have strong confidence in the stability of our machine because all parts can jointed and worked as a integrated unit.
The most frequently used material for molds are Aluminum, S136(stainless iron):
Our Plastic juice bottle blow moulding machine has already accquired the CE certificate:
Other domestic patents of our auto Plastic juice bottle blow moulding machine:
