Detailed Product Description of Juice bottles blow molding machines:
This is the standard 2 cavity blow molding machinery for the blowing of hot filling bottles.
Preform material:PET
Output:1000BPH(750ml)
Features of Juice bottles blow molding machines:
1.Operation is simple and easy for user because of its high automation as well as intellectual man-machine interface.
2.Compacted mechanical structure with stable heating system and adjustable technical parameters greatly reduces the consumption of water, electricty and air, thus reducing the cost of production.
3.No contamination is found because of the automation in uploading and processing of preform, automation in picking of finished bottle
4.The passing rate of blow bottle is over 99%.
Parameters of Juice bottles blow molding machines:
Item |
HGA.h-2C |
|
Container |
Max. Container Volume |
750 ml |
Neck Diameter Range |
50 mm |
|
Max. ContainerDiameter |
70 mm |
|
Max. Container Height |
260 mm |
|
Theoretical Output |
1000 bph |
|
Molding |
Clamping stroke |
150 mm |
Stretching stroke |
350 mm |
|
Bottom Stoke |
25 mm |
|
Preform distance |
130 mm |
|
Preform Holder |
89 pcs |
|
Cavities |
2 No. |
|
|
Electrical System |
Max. Heating Power |
32 kw |
Heating Power |
14 kw |
|
Air System |
Operating Pressure |
7-8 kg/c m2 |
Low Air Consumption |
1000 ltr/min |
|
Blowing Pressure |
35 kg/c m2 |
|
High Air consumption |
4000 ltr/min |
|
Cooling Water |
Operating Pressure |
5-6 kg/c m2 |
Temperature |
8-10°C |
|
Flow rate |
30 ltr/min |
|
Machine |
Size(L×W×H) |
2520×1550×2000mm |
Weight |
2800 kg |
|

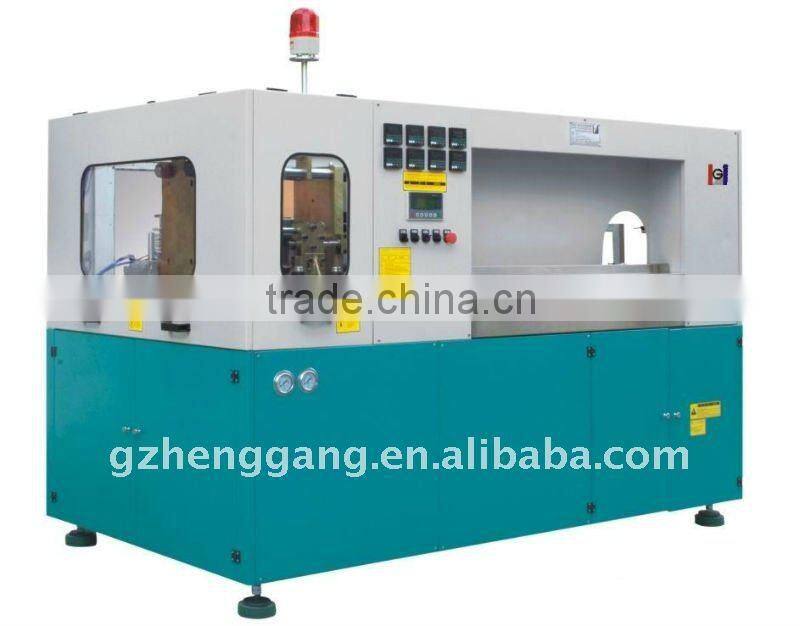

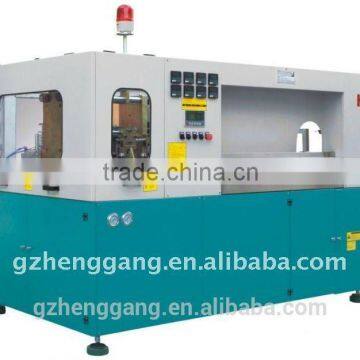

The picture of Juice bottles blow molding machines:
Product made by Juice bottles blow molding machines:
Compressor High pressure
Compressor Low pressure
All the cavity molds(moulds) are manufactured by ourselves. We have our own CNC processing machine and experienced engineer, who has been making cavity molds at least 5 years. Besides the cavity molds, other hardware parts are also produced by ourselves. Thus we have strong confidence in the stability of our machine because all parts can jointed and worked as a integrated unit.
The most frequently used material for molds are Aluminum, S136(stainless iron):
Our engineer is making the technical drawing by the software UG:
Our engineer is checking the process of the cavity moulds in the CNC machine:
Our master is drilling the holes for the installation of the molds, the drilling is strictly made according to the technical drawing, thus the combination of the parts will be matched perfectly.
Our Juice bottles blow molding machines has already accquired the CE certificate:
Other domestic patents of our auto Juice bottles blow molding machines:
