Detailed Product Description of Coffee pet bottles blowing machines:
This is the standard 2 cavity blow molding machinery for the blowing of hot filling bottles.
Features of Coffee pet bottles blowing machines:
1.Operation is simple and easy for user because of its high automation as well as intellectual man-machine interface.
2.Compacted mechanical structure with stable heating system and adjustable technical parameters greatly reduces the consumption of water, electricty and air, thus reducing the cost of production.
3.No contamination is found because of the automation in uploading and processing of preform, automation in picking of finished bottle
4.The passing rate of blow bottle is over 99%.
Parameters of Coffee pet bottles blowing machines:
Item |
HGA.h-2C |
|
Container |
Max. Container Volume |
750 ml |
Neck Diameter Range |
50 mm |
|
Max. ContainerDiameter |
70 mm |
|
Max. Container Height |
260 mm |
|
Theoretical Output |
1000 bph |
|
Molding |
Clamping stroke |
150 mm |
Stretching stroke |
350 mm |
|
Bottom Stoke |
25 mm |
|
Preform distance |
130 mm |
|
Preform Holder |
89 pcs |
|
Cavities |
2 No. |
|
|
Electrical System |
Max. Heating Power |
32 kw |
Heating Power |
14 kw |
|
Air System |
Operating Pressure |
7-8 kg/c m2 |
Low Air Consumption |
1000 ltr/min |
|
Blowing Pressure |
35 kg/c m2 |
|
High Air consumption |
4000 ltr/min |
|
Cooling Water |
Operating Pressure |
5-6 kg/c m2 |
Temperature |
8-10°C |
|
Flow rate |
30 ltr/min |
|
Machine |
Size(L×W×H) |
2520×1550×2000mm |
Weight |
2800 kg |
|

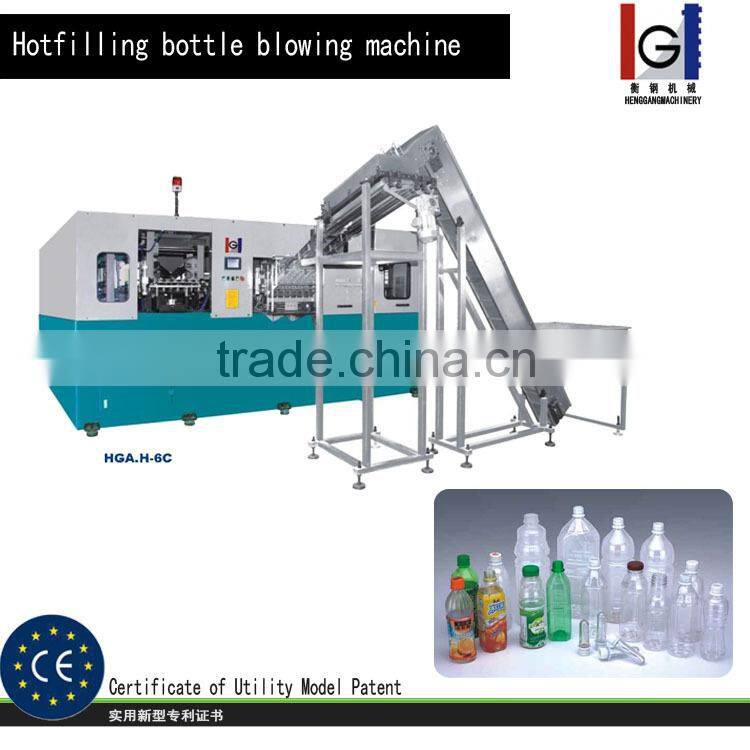

The picture of Coffee pet bottles blowing machines:

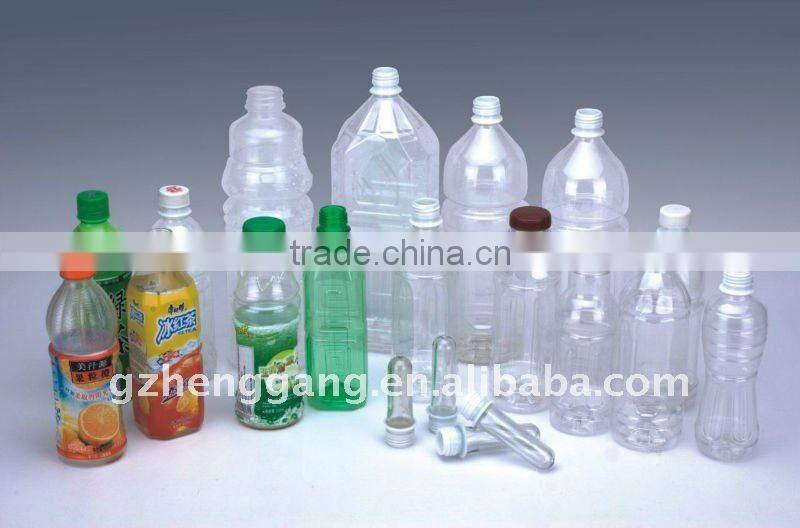

Product made by Coffee pet bottles blowing machines:
Factory overview:
We have two work shops to produce the Coffee pet bottles blowing machines. One is to process the metallic components. We have CNC, drilling, grinding machines etc.. We can be sure about the perfect matching between different parts:
Technical support:
Besides the good quality of Coffee pet bottles blowing machines, a good bottle design is very important for the client. We establish a experienced engineering team, to offer professional technical support to our clients.
Sample drawings made by CAD and UG software
Actual molds on site shooting:
Imported Electrical components:
The major electrical components of Coffee pet bottles blowing machines are using imported famous brand. The high quality electrical components strenthen the stability of our Plastic pet cans blowing machines
After-sales service:
We will send engineers abroad once you decide to choose our Coffee pet bottles blowing machines
Certifications
Our Coffee pet bottles blowing machines has acquired the CE and other domestic patents
