Detailed Product Description of Juice pet bottles blowing machines:
Juice pet bottles blowing machines is a high speed linear stretch blow moulding machine which is developed and manufactured by our Company using the state-of-the-art bottle blowing technology. Owing to the machine's high degree of automation, high production efficiency,high safety, high stability and reliability, the products made will not be contaminated in any intermediate steps, and it can be matched up directly with the production line of filling and can be widely used in production of mineral water, carbonic acid beverage, juice, tea and heat-resistence bottle products.
Preform material:PET
Output:2000BPH(600ml)
Features of Juice pet bottles blowing machines:
1.Operation is simple and easy for user because of its high automation as well as intellectual man-machine interface.
2.Compacted mechanical structure with stable heating system and adjustable technical parameters greatly reduces the consumption of water, electricty and air, thus reducing the cost of production.
3.No contamination is found because of the automation in uploading and processing of preform, automation in picking of finished bottle
4.The passing rate of blow bottle is over 99%.
Parameters of Juice pet bottles blowing machines:
Item |
HGA.H-6C |
|
Container |
Max. Container Volume |
1500 ml |
Neck Diameter Range |
18-38mm |
|
Max. ContainerDiameter |
98 mm |
|
Max. Container Height |
320 mm |
|
Theoretical Output |
2600 bph |
|
Molding |
Clamping stroke |
120 mm |
Stretching stroke |
400 mm |
|
Bottom Stoke |
60 mm |
|
Preform distance |
114 mm |
|
Preform Holder |
96 pcs |
|
Cavities |
6 No. |
|
|
Electrical System |
Max. Heating Power |
60 kw |
Heating Power |
35 kw |
|
Air System |
Operating Pressure |
8 kg/c m2 |
Low Air Consumption |
2000 ltr/min |
|
Blowing Pressure |
30 kg/c m2 |
|
High Air consumption |
24000 ltr/min |
|
Cooling Water |
Operating Pressure |
7 kg/c m2 |
Temperature |
10-12°C |
|
Flow rate |
40 ltr/min |
|
Machine |
Size(L×W×H) |
5350×2100×2500mm |
Weight |
6500 kg |
|

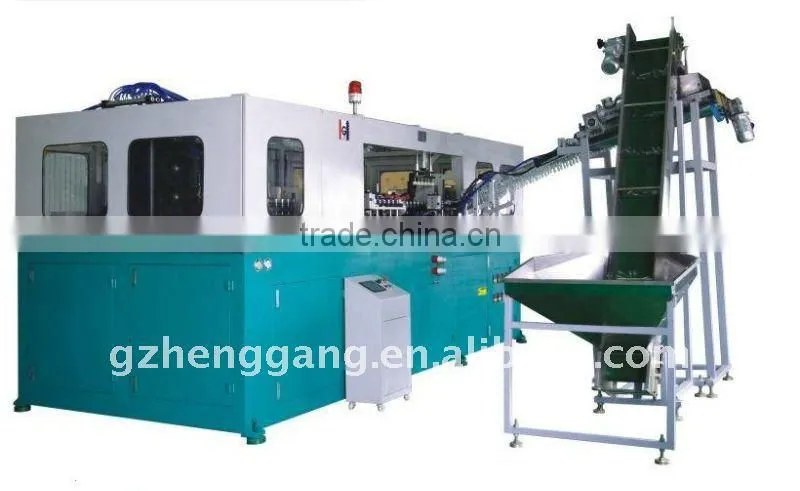

The picture of Juice pet bottles blowing machines:
Product made by Juice pet bottles blowing machines:
Compressor High pressure
Compressor low air
All the cavity molds(moulds) of Juice pet bottles blowing machines are manufactured by ourselves. We have our own CNC processing machine and experienced engineer, who has been making cavity molds at least 5 years. Besides the cavity molds, other hardware parts are also produced by ourselves. Thus we have strong confidence in the stability of our machine because all parts can jointed and worked as a integrated unit.
The most frequently used material for molds are Aluminum, S136(stainless iron):
Our engineer is making the technical drawing by the software UG:
Our engineer is checking the process of the cavity moulds in the CNC machine:
Our master is drilling the holes for the installation of the molds, the drilling is strictly made according to the technical drawing, thus the combination of the parts will be matched perfectly.
Our Juice pet bottles blowing machines has already accquired the CE certificate:
Other domestic patents of our auto Juice pet bottles blowing machines:
