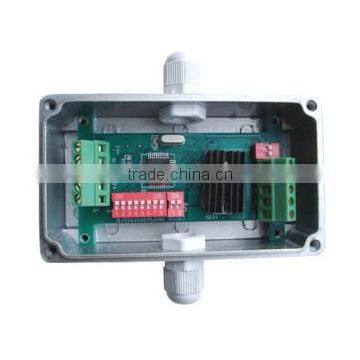

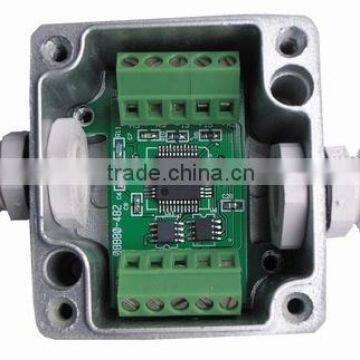

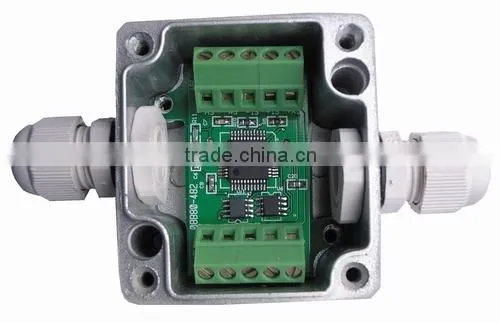

Digital weighing transmitter for digital load cell, dynamic force measure
|
Features Category: A/D weight transmitter Input signal: -40mv to +40mv Signal output: mv 0-5vdc, 0-10vdc, 4-20mA, RS232/485/422. RTU Measure channel:1-2-4-6-8-10CH Sampling rate: 3HZ ~200HZ~400HZ ~1000HZ Measuring range: ±15mV A/D Resolution:1000000 Temperature coefficient:≤5ppm/℃(typical) Hardware Interface: RS-485/RS232/RS422/MODBUS/WIRELESS Software Protocol:Rectangle,Freeport,Modbus RTU protocol Dimensions(mm): Refer to the product specifications Base function: A/D conversion AD, digital calibration, tare , zero setting /tracking , switch-on zero setting , anti-dithering ; SW set AD address: 0-31 Module addresses are available from 0 to 31. Baud rate: 1200~38400bps; Digital filtering : standard filtering or LPF; Sampling speed : 3.125~100Hz; Storage of the parameters with protection against power failure ; Operating Voltage : 9V DC(6.5V~12V); Operating Current :≤40mA; Complete protection: wrong wiring protection , overvoltage protection,transient voltage suppression; Operating temperature range : -40℃~+70℃; Storage temperature range: -60℃~+90℃ | |||||
|

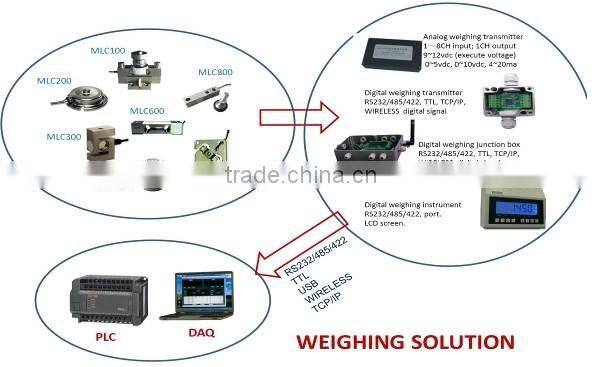

Application Used in the manufacture of digital weighing sensor, weighing instrument display, program-controlled system, tensile testing machine, and is applicable to other weighing, such as mechanical strength test measurement occasions.Multi-channel product used in multi-channel bin, tank weighing, digital truck scale, rail weighbridge, industrial process control, etc. | |||||
|
| |||||
|

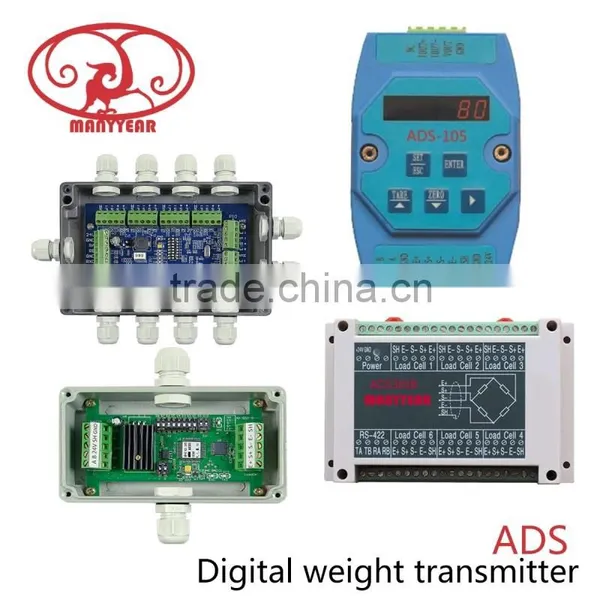

Product Index | |||||
No. |
Model |
Channel |
Analogy Output |
Digital output |
Application |
1 |
AAS-A/2/4/6/8/10 |
2-10ch option |
mv |
NA |
Multichannel weighing system. Belt scale, Compression test, Crane scale, Elevator overload, Feeding scale, Floor scale, Hopper scale, Packing scale, Platform scale, Shaft scale, Tank scale, Tension test, Truck Scale, Warehouse scale, Weighbridge… |
2 |
AAS-B/2/4/6/8/10 |
2-10ch option |
0-5vdc, 0-10vdc, 4-20mA |
NA |
Multichannel weighing system Automobile inspect, Compression test, Elevator overload, Force test, Tension test, |
3 |
ADS421 |
1ch |
NA |
RS232 wireless |
Digital load cell, digital static weighing system |
4 |
ADS321/322 |
1ch |
NA |
RE232 wireless |
digital static weighing system |
5 |
ADS112 |
1ch |
NA |
RE485 |
digital dynamic weighing system high speed weighing system |
6 |
ADS105 |
1ch |
NA |
RS485 RTU wireless |
Digital weighing system Weighing instrument |
7 |
ADS105I |
1ch |
4-20mA |
RS485 RTU wireless |
Digital weighing system Weighing instrument Weight controller |
8 |
ADS105UI |
1ch |
0-5vdc, 0-10vdc, 4-20mA |
RS485 RTU wireless |
Digital weighing system Weighing instrument Weight controller |
9 |
ADS105U |
1ch |
0-5vdc, 0-10vdc |
RS485 RTU wireless |
Digital weighing system Weighing instrument Weight controller |
10 |
ADS301/201 |
2-8ch option |
NA |
RS485 RTU wireless |
Multichannel digital weighing system |
Environment-protected polybag + Color box + carton box+ damp proof packing
Ocean Freight, Air freight, DHL, FEDEX, TNT,SF, EMS…
|
|
24Hr for response time.
5-7days for sample time.
15-25days for delivery time.
12 months for quality assurance time.
ODM, OEM support
Our Factory
Provide Design, manufacture, sales, server of load cell since 1998.
20,000 square meter industrial park
1000+ worker.
|
|
|
Our Intelligence ISO, OIML, ROHS, CE. Picture |
|
|
Our Equipment 800t hydraulic machince. 0.001g to 20t Weihing machince. Truck scale test station. CNC machince. Life test chamber |
|
|
