Dynamic Digital Weighing System

Name: Dynamic Digital Weighing System
Brand: MANYYEAR
SKU: 130663001

US$ 300 - 350 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

MANYYEAR

Model Number:

ADS201

Manyyear Technology Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name MANYYEAR

Model Number ADS201

Type Axle Scale

Power Supply NA

Display Type NA

Rated Load NA

Accuracy NA

Product Description

ADS201-dynamic digital weighing system

Features

1.Digital filter
2.digital demarcate:
3.characteristic parameter store
4.sample rate option
5.set all item by series port
6.zero track range±2
7.zero adjust range when power on±2±20
8.linearity corrext point option(4~8)
9.temperature correct,adjust time can be option
10.short response time of measur
11.Prevent vibratility Intension option
12.Measur temperature of PCB and output value
13. update by series port
13.Difico digital filter compensate tool
14.Little temperature excursion:

15.apply to dynamic digital weighing system, high speed weighign system, high speed force measure, digital axle scale

Technology

1.Max signal range	±10mV ~±5V
2.Max resolving power	20/mV(12.5Hz)
3.Measur speed	100Hz50Hz25Hz12.5Hz6.25Hz3.125Hz2Hz1Hz(option)
4.Filter mode	standard low-filter and FIR filter
5.Nor-linearity	±0.001F·S
6.Temperature characteristic	<±1ppm/

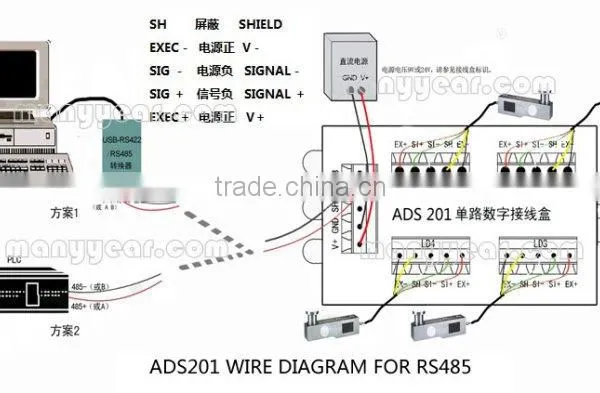

7.Communication mode	Full duplex RS-485
8.baudrate	1200bps2400 bps4800 bps9600 bps19200 bps38400 bps (option)
9.Power supply	6.5V12V DC
10.Current	< 30 mA < 35mA (MAX)
11.Work temperature range	,-40+70
12.Stock temperature range	,-60+90
13.AD-S module dimension(mm)	62×35×8(L×W×H)
14.AD-S module plastics box dimension(mm)	70×42×17(L×W×H)
15.Prevent Thunder Strike module dimension(mm)	45×27×9 (L×W×H)
16.Weight (with prevent thunder strike module)	47g
