Multi Channel Digital Weighing System

Multi Channel Digital Weighing System thumbnail-1
Multi Channel Digital Weighing System thumbnail-2
Multi Channel Digital Weighing System thumbnail-3
Multi Channel Digital Weighing System thumbnail-4
Multi Channel Digital Weighing System photo-1
Multi Channel Digital Weighing System photo-2
Multi Channel Digital Weighing System photo-3
Multi Channel Digital Weighing System photo-4
US$ 200 - 350 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MANYYEAR
Model Number:
ADS301
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MANYYEAR
Model Number ADS301
Type Floor Scale
Power Supply 9-36vdc
Display Type NA
Rated Load NA
Accuracy G
Product Description
ADS301 multi channel digital weighing system

Features

1. Working power supply: 6.5V12VDC
2. Digital filtering wave;
3. Digital calibration and calibration;
4. Characteristic parameters of non-lose memory;
5. Measurement rate optional;
6. All of the settings through the serial port to complete the work;
7. Zero tracking range of ± 2%;
8. Open automatically zero range of ± 2% ... ± 20%;
9. Linear amend points optional (4-8 points);
10. Automatic temperature correction, amendment time interval adjustable;
11. Output measurements faster convergence and stability;
12. it can set the features of anti- shake intensity (0% ... 100%);
13. Application software can be upgraded through the serial port
14.4-10 Road A / D conversion module

15.Apply to multichannel digital weighing system, multichannel force measure, multichannel digital weight transmitter, digital platform scale, digital floor scale, digital weighbridge, digital truck scale

Technology

1.Max signal range: ±10mV ~±5V
2.Each A / D measurement of the highest resolution: 100000 / mV (12.5Hz)
3.Measurement speed (depending on the output format and baud rate): 100Hz, 50Hz, 25Hz, 12.5Hz, 6.25Hz, 3.125Hz, 2Hz, 1Hz (optional)
4.Filtering methods: the standard low-pass filter and FIR filter
5.Non-linear: ± 0.001% FS
6.Temperature characteristics: <± 5ppm /
7.Transfer method: full-duplex RS-485
8.Baud Rate: 1200bps, 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps (optional)
9.Operating voltage: 6.5V ... 12V DC
10.Each A / D operating current (AD-S module only): <38 mA (typical) <40mA (maximum);
11.Use temperature range: , -40 ~ +70 ;
12.Stock temperature range: ,-60ºC+90ºC
13.Junction Box Dimensions (mm): 223 × 147 × 60 (L × W × H);
14.Weight: about 478g
Packaging & Shipping

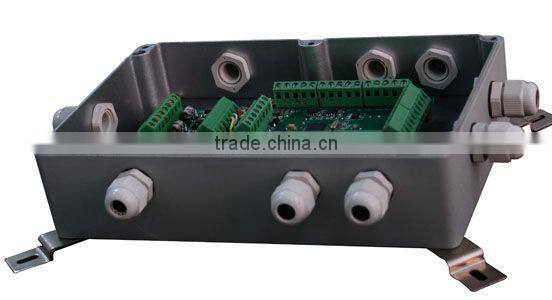

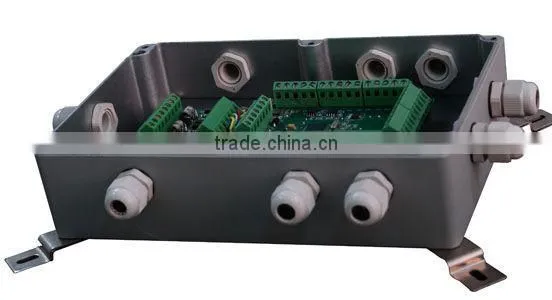

Product photo

multi channel digital weighing system



Packing picture

multi channel digital weighing system



Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
