Miniature Compression and Tension Test Load Cell

Miniature Compression and Tension Test Load Cell thumbnail-1
Miniature Compression and Tension Test Load Cell thumbnail-2
Miniature Compression and Tension Test Load Cell photo-1

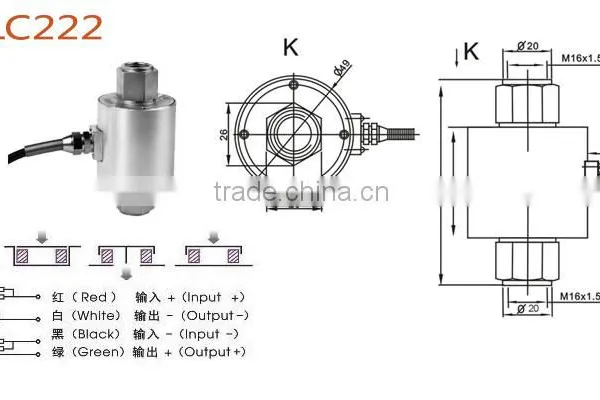

Miniature Compression and Tension Test Load Cell photo-2
US$ 10 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MANYYEAR
Model Number:
MLC222
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MANYYEAR
Model Number MLC222
Product Description
miniature compression and tension test load cell

Features

Model:MLC222

Category: button load cell

Range: 30kg,50kg,100kg,500kg,1000kg,1500kg

Dimension: D49*86mm

Material: Alloy steel,stainless steel

Application: miniature compression and tension test,miniature crane scale

Characteristic: miniature compression and tension load cell sensor

Technology


comprehensive error:

0.3%FS

output resistance:

352±3Ω

Rated output:

1.6±0.01mv/v(30-1000kg),

2.0±0.01mv/v(1500kg)

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.1%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.2%FS

compensated temp:

-10~+70℃

Repeatability:

0.1%FS

use temperature:

-20~+75℃

Creep:

0.2%FS/10MIN

temp effect on zero:

0.05%FS/10℃

Zero balance:

±1%FS

Temp effect on span:

0.05%FS/10℃

Input resistance:

380±5Ω

defend grade:

IP67 & IP68
Application

 miniature compression and tension test load cell

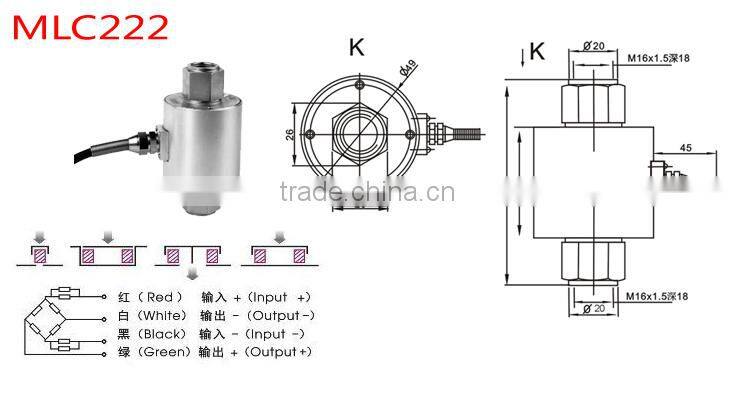

Product Dimension
miniature compression and tension test load cell

Force type

miniature compression and tension test load cell

Packaging & Shipping

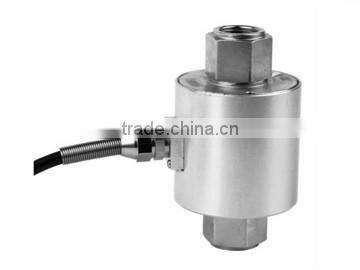

Product photo

miniature compression and tension test load cell



Packing picture

miniature compression and tension test load cell



Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
