Hopper Scale Load Cell, Platform Scale Load Cell

Hopper Scale Load Cell, Platform Scale Load Cell thumbnail-1
Hopper Scale Load Cell, Platform Scale Load Cell thumbnail-2
Hopper Scale Load Cell, Platform Scale Load Cell photo-1
Hopper Scale Load Cell, Platform Scale Load Cell photo-2
US$ 200 - 300 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MANYYEAR
Model Number:
MLC214
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MANYYEAR
Model Number MLC214
Product Description

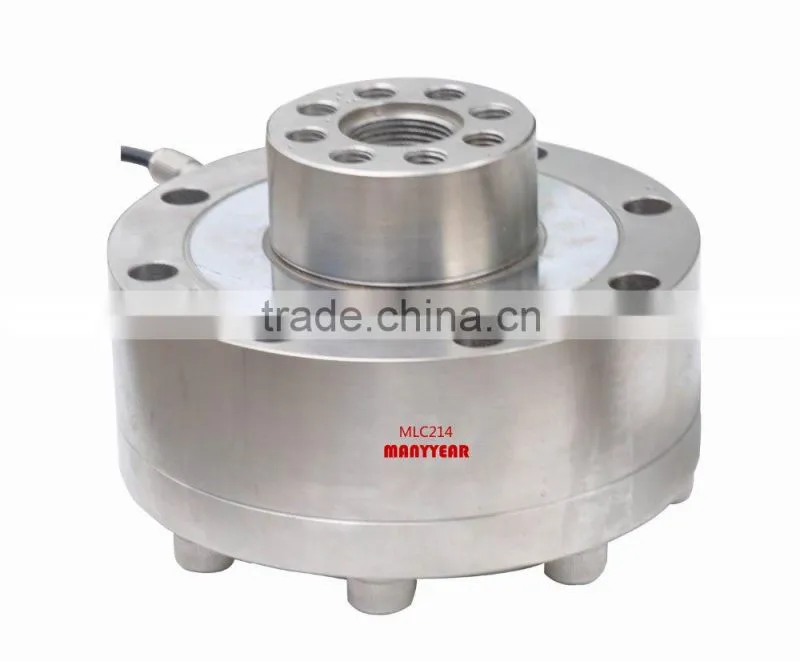

hopper scale load cell, platform scale load cell

Features

Model:MLC214

Category: button load cell

Range: 10t,20t

Dimension: 164*111/190*137mm

Material: Alloy steel,stainless steel

Application: hopper scales.,packing scale,Platform scale

Characteristic: Platform scale load cell,Dynamic weighing load cell

Technology


other dimension

LOAD

A

C

D

E

F

G

H

I

J

M

10T

D164

D118

D34

D52

D74

15

111

34

30

M30*2

20T

D190

D136

D43

D67

D96

22

137

44

40

M39*2

Specification

comprehensive error:

0.1%FS

output resistance:

352±5Ω

Rated output:

2.0±0.005mv/v

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.05%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.05%FS

compensated temp:

-10~+40℃

Repeatability:

0.03%FS

use temperature:

-20~+55℃

Creep:

0.03%FS/10MIN

temp effect on zero:

0.05%FS/10℃

Zero balance:

±1%FS

Temp effect on span:

0.05%FS/10℃

Input resistance:

400±10Ω

defend grade:

IP66 & IP68

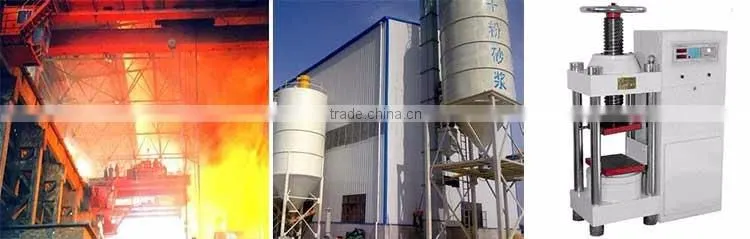

Application

 hopper scale load cell, platform scale load cell

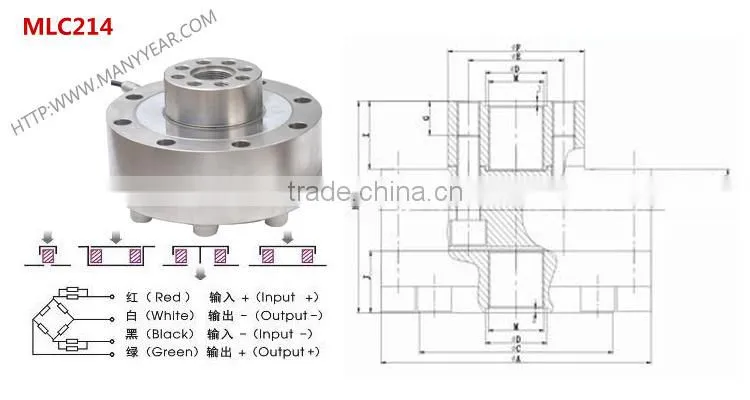

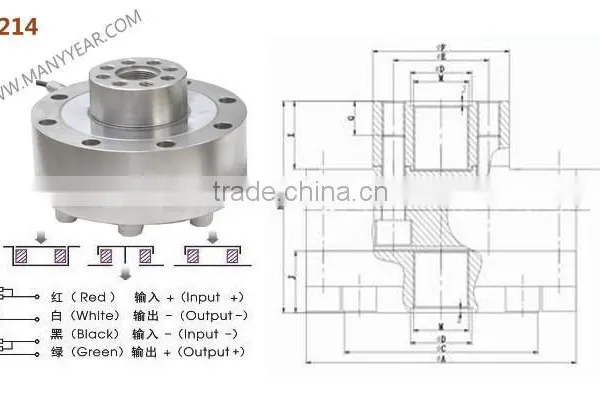

Product Dimension
hopper scale load cell, platform scale load cell

Force type

hopper scale load cell, platform scale load cell

Packaging & Shipping

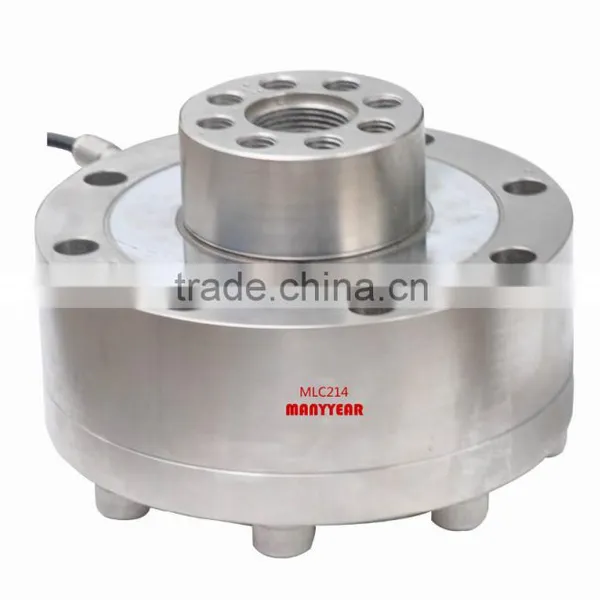

Product photo

hopper scale load cell, platform scale load cell



Packing picture

hopper scale load cell, platform scale load cell



Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
